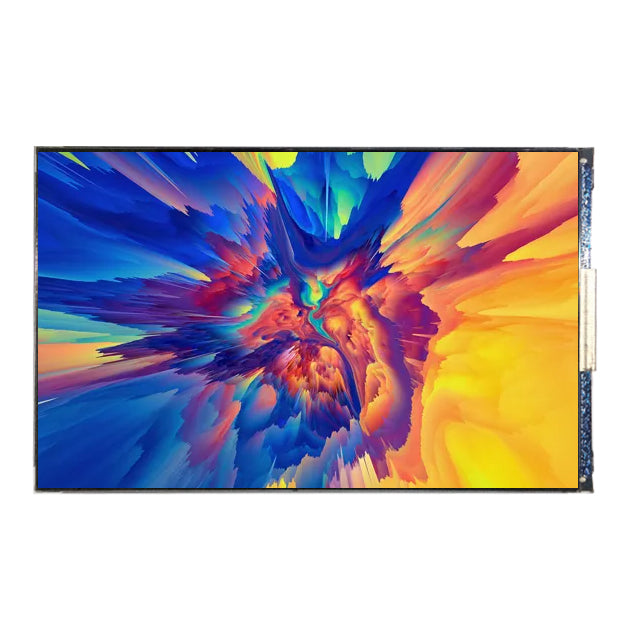

BP070WX1-300 7 Inch TFT LCD Screen Display 800x1280 LCD Display Panel

BP070WX1-300 7 Inch TFT LCD Screen Display 800x1280 LCD Display Panel

$37.89 USD
$43.06 USD $37.89 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

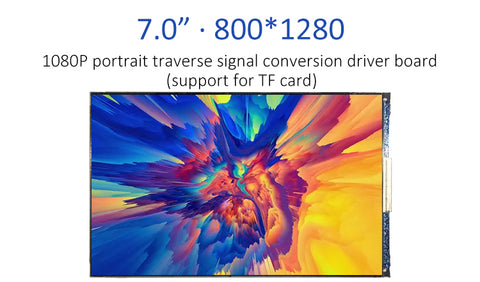

BP070WX1-300 Original 7 Inch TFT LCD Screen Display 800x1280 LCD Display Panel

LCD SPECIFICATION
Diagonal Size
7.0 inch
Type
a-Si TFT-LCD , LCM
Pixel Format
800(RGB)×1280 [WXGA]
Configuration
RGB Vertical Stripe
Display Area
94.2(H)×150.72(V) mm

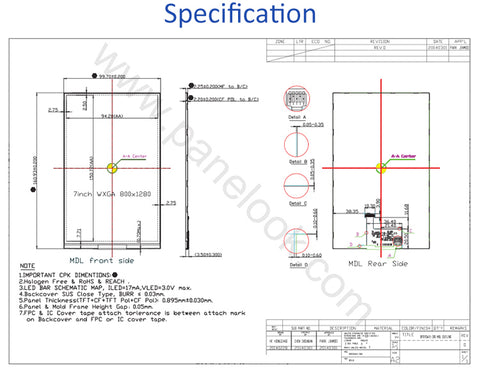

Outline Dim.
99.7(H)×160.93(V) ×3.8(D) mm
Outline Size
-
Surface
Hard coating (3H), Antireflection
Luminance
450 cd/m² (Typ.)
Contrast Ratio
900:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
30 (Typ.)(Tr+Td)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
AFFS, Normally Black, Transmissive
Support Color
16.7M 50% NTSC
Light Source
WLED [5S4P] , 20K hours , W/O Driver
Weight
70.0±3.5g
Designed For
Pad & Tablet
Frame Rate
60Hz
Touch Panel
Without
Interface Type
MIPI 34 pins Connector
Power Supply
1.8/3.3V (Typ.)(IOVCC/VDD)
Environment
 Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out ?
Normally we will ship it out within 2- 3 days after order was processed, only when the products in high demand or out of stock will take more time.
