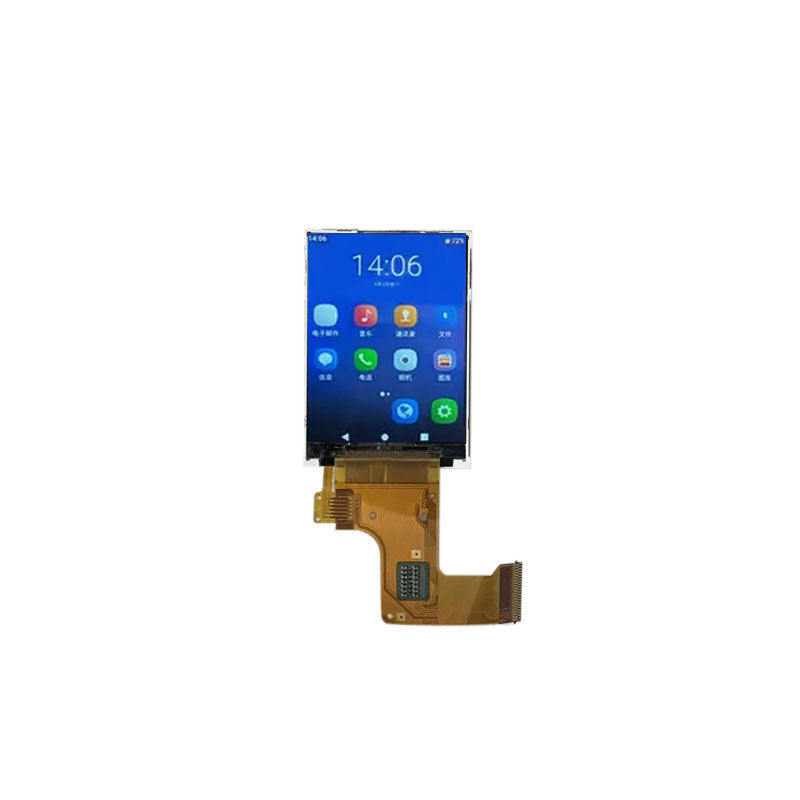

COM20T2P31ILC Ortustech 2 Inch TFT LCD Display 240×320 CPU/RGB/SPI Transmissive LCD Panel

COM20T2P31ILC Ortustech 2 Inch TFT LCD Display 240×320 CPU/RGB/SPI Transmissive LCD Panel

$40.03 USD
$44.48 USD $40.03 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM20T2P31ILC Overview

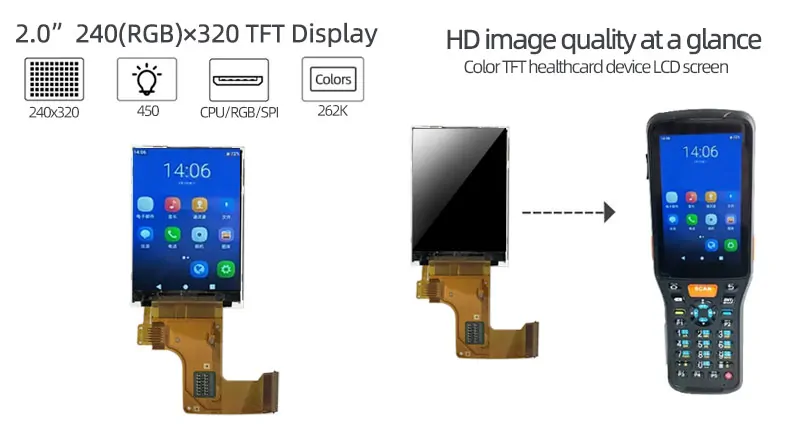

COM20T2P31ILC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 30.6(W)×40.8(H) mm, outline size of 35.5(W)×50.6(H)×2.53(D) mm, with surface treament of Hard coating (3H), net weight of 10.7g. As a VA, Normally Black, Transmissive LCM product, COM20T2P31ILC can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 60/40 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 35% (NTSC). This product adopted 1S3P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. COM20T2P31ILC utilizes CPU/RGB/SPI as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.0/3.0V (Typ.)(VCI/IOVCC).

COM20T2P31ILC Application
For Industrial.

COM20T2P31ILC  Specification

Part No. COM20T2P31ILC Size 2.0 inch
Resolution 240 × 320 (QVGA) Display Mode VA, Transmissive
Panel Interface CPU / RGB / SPI Touch Panel No

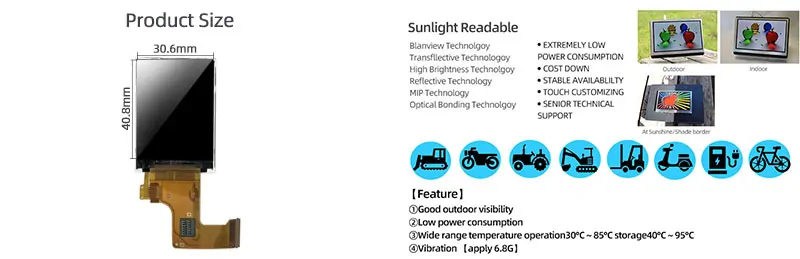

Outline Dimension 35.5 × 50.6 mm Active Area 30.6 × 40.8 mm
Viewing Angle 80 / 80 / 80 / 80 (Typ.) Brightness 450 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C
