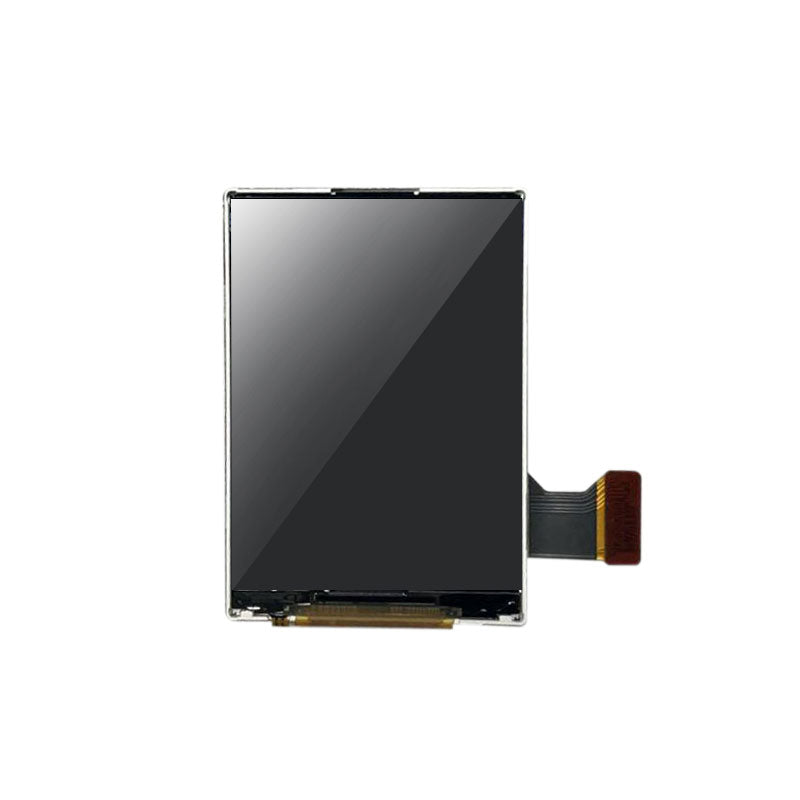

COM22H2P80ULC Ortustech 2.2 Inch LCD Panel 240x320 CPU Transflective LCD Display For Handheld PDA

COM22H2P80ULC Ortustech 2.2 Inch LCD Panel 240x320 CPU Transflective LCD Display For Handheld PDA

$36.54 USD
$45.12 USD $36.54 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

Overview

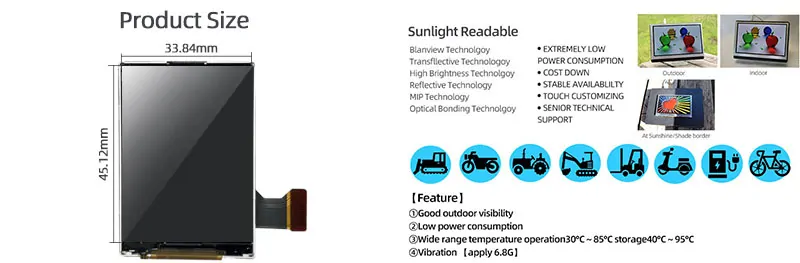

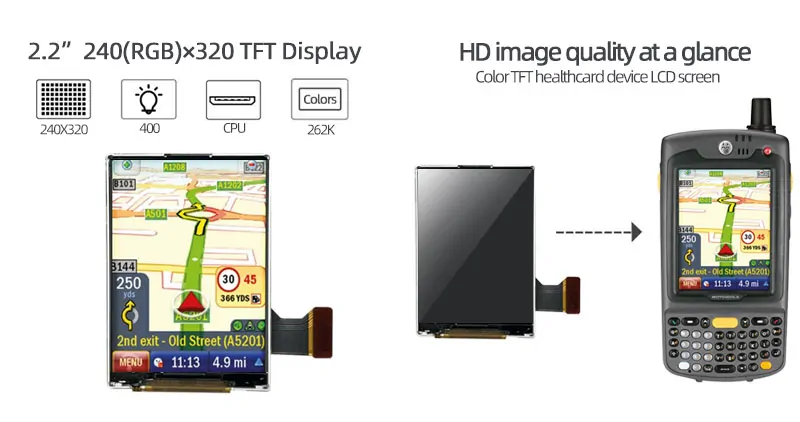

COM22H2P80ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 33.84(W)×45.12(H) mm, outline size of 38.64(W)×53.72(H)×4.55(D) mm, with surface treament of Hard coating (3H), net weight of 11.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM22H2P80ULC can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms.

Application
For andheld & PDA,Industrial.
COM22H2P80ULC  Specification

Part No. — Size 2.2 inch
Resolution 240 × 320 Display Mode Transflective
Panel Interface CPU Touch Panel No
Outline Dimension 38.64(W) × 53.72(H) mm Active Area 33.84(W) × 45.12(H) mm
Viewing Angle 80/80/80/80 (Typ.) Brightness 400 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C


Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
