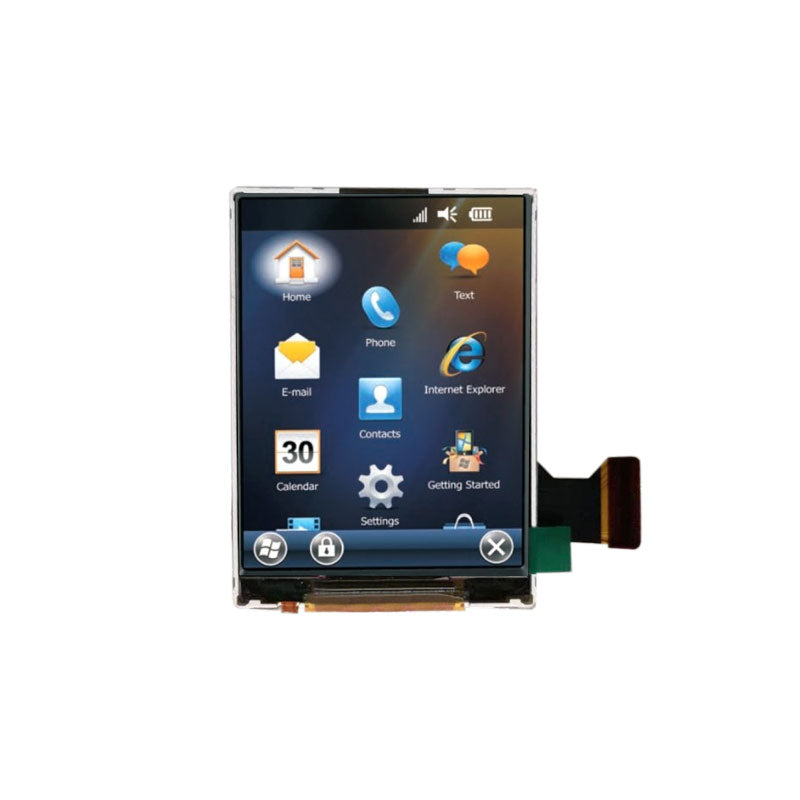

COM22H2P84ULC Ortustech 2.2 Inch LCD Panel CPU 240x320 Transflective LCD Display For Handheld PDA

COM22H2P84ULC Ortustech 2.2 Inch LCD Panel CPU 240x320 Transflective LCD Display For Handheld PDA

$56.30 USD
$62.56 USD $56.30 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

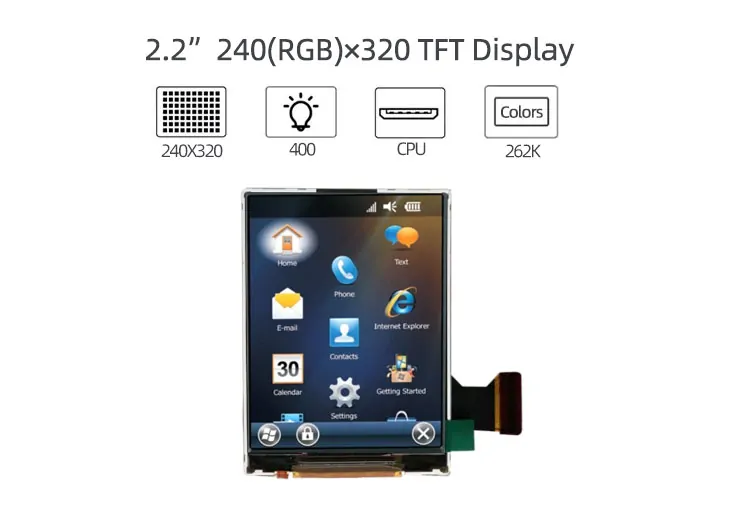

COM22H2P84ULC Overview
COM22H2P84ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 33.84(W)×45.12(H) mm, outline size of 38.64(W)×53.72(H)×4.55(D) mm, with surface treament of Hard coating (3H), net weight of 11.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM22H2P84ULC can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 3.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 35% (NTSC).


2.2 Inch Transflective LCD Display Overview
COM22H2P84ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 33.84(W)×45.12(H) mm, outline size of 38.64(W)×53.72(H)×4.55(D) mm, with surface treament of Hard coating (3H), net weight of 11.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM22H2P84ULC can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 3.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 35% (NTSC). This product adopted 3S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM22H2P84ULC utilizes CPU as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 2.8/2.8V (Typ.)(VDD/IOVCC). It's typical vertical frame rate (Fv) is 60Hz.

COM22H2P84ULC  Specification

Part No. COM22H2P84ULC Size 2.2 inch
Resolution 240 × 320 (QVGA) Display Mode Transflective
Panel Interface CPU Touch Panel No
Outline Dimension 38.64(W) × 53.72(H) mm Active Area 33.84(W) × 45.12(H) mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 (Typ.) Brightness 400 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

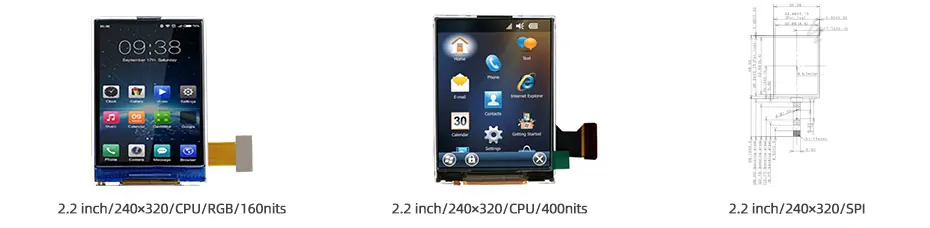

More 2.2 Inch Transflective LCD Display For Reference
ET022TR01-R (240x320, CPU/RGB, 160nits, -20~70°C, 40.4x56.48mm)
COM22H2P84ULC (240x320, CPU, 400nits, -20~70°C, 38.64x53.72mm)
LS022B7DH03 (240x320, SPI, -15~70°C, 35.48x48.54mm)
