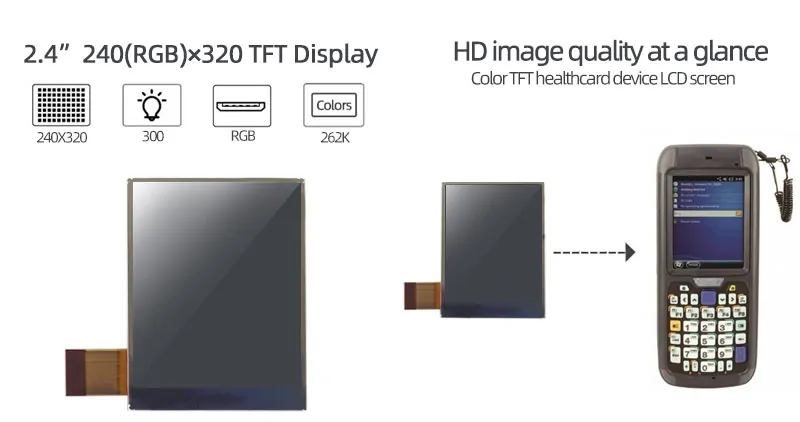

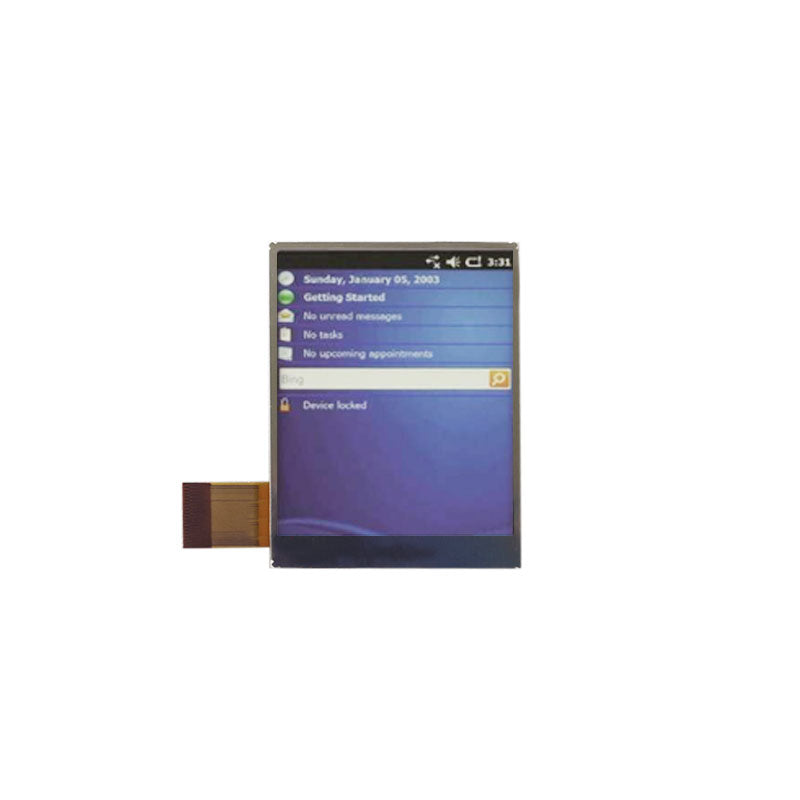

COM24H2P29XLC Ortustech 2.4 Inch TFT LCD Display 240x320 Parallel RGB Transflective LCD Panel

COM24H2P29XLC Ortustech 2.4 Inch TFT LCD Display 240x320 Parallel RGB Transflective LCD Panel

$52.99 USD
$58.88 USD $52.99 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM24H2P29XLC Overview
COM24H2P29XLC is a 2.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM24H2P29XLC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 36(W)×48(H) mm, outline size of 42.5(W)×58.5(H)×4(D) mm, with surface treament of Hard coating (3H), net weight of 13.9g (Typ.). As a TN, Normally White, Transflective LCM product, COM24H2P29XLC can provides 300 cd/m² display brightness 400:1 transimissive contrast ratio, 8.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms.

COM24H2P29XLC Application
For andheld & PDA,Industrial.

COM24H2P29XLC  Specification

Part No. COM24H2P29XLC Size 2.4 inch
Resolution 240 × 320 (QVGA) Display Mode Transflective
Panel Interface Parallel RGB (1 ch, 6-bit) Touch Panel No

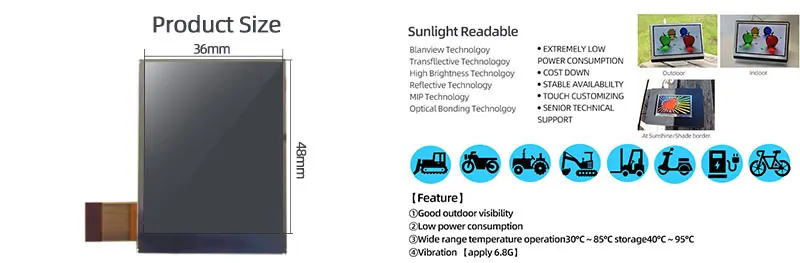

Outline Dimension 42.5 × 58.5 mm Active Area 36 × 48 mm
Viewing Angle 80 / 80 / 80 / 80 (Min.) Brightness 300 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C
