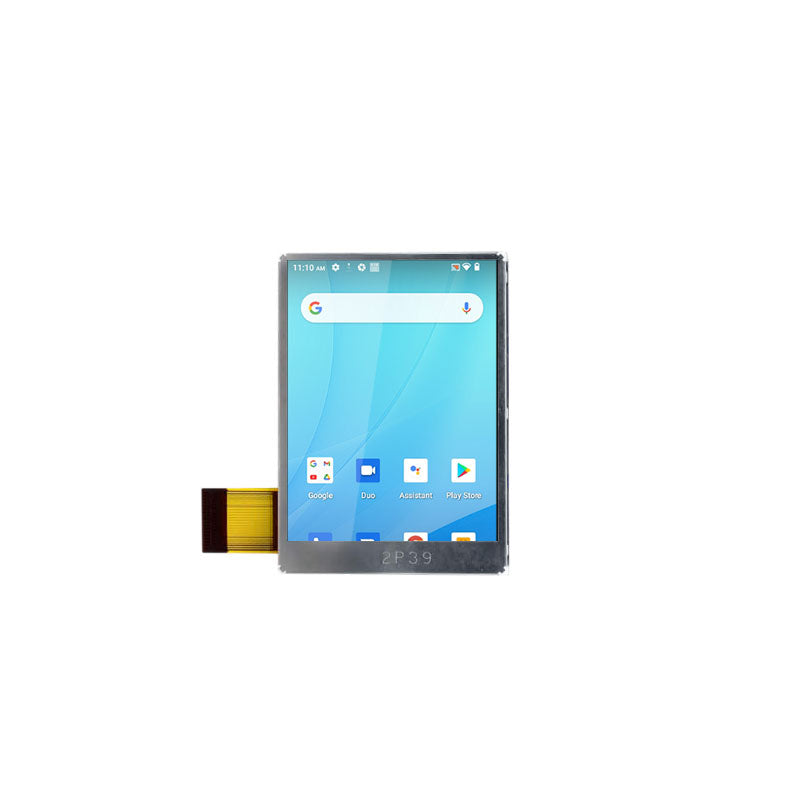

COM24H2P39ULC Ortustech 2.4 Inch LCD Display 240x320 CPU Transflective LCD Panel

COM24H2P39ULC Ortustech 2.4 Inch LCD Display 240x320 CPU Transflective LCD Panel

$70.79 USD
$78.66 USD $70.79 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM24H2P39ULC Overview

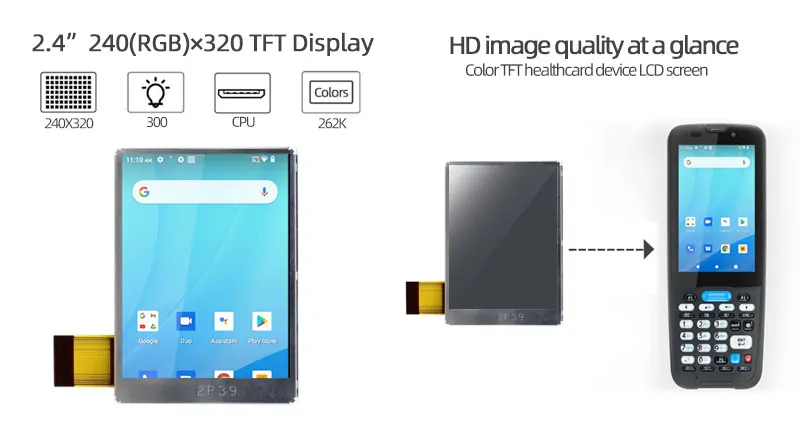

COM24H2P39ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 36(W)×48(H) mm, outline size of 42.5(W)×58.5(H)×5.55(D) mm, with surface treament of Hard coating (2H), net weight of 13.6g (Typ.). As a VA, Normally Black, Transflective LCM product, COM24H2P39ULC can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 60/40 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC).

COM24H2P39ULC Application
For andheld & PDA,Industrial.

COM24H2P39ULC  Specification

Part No. COM24H2P39ULC Size 2.4 inch
Resolution 240 × 320 (QVGA) Display Mode Transflective
Panel Interface CPU Touch Panel No

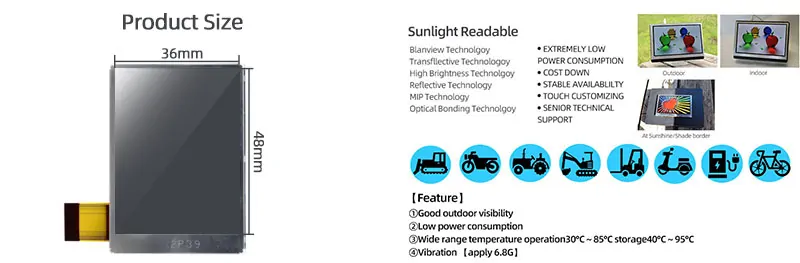

Outline Dimension 42.5(W) × 58.5(H) mm Active Area 36(W) × 48(H) mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 (Min.) Brightness 300 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C
