COM24H2P94ULC Ortustech 2.4 Inch TFT LCD Display 240x320 Parallel RGB Transflective LCD Panel

COM24H2P94ULC Ortustech 2.4 Inch TFT LCD Display 240x320 Parallel RGB Transflective LCD Panel

$86.94 USD
$96.60 USD $86.94 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM24H2P94ULC Overview
COM24H2P94ULC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 36(W)×48(H) mm, outline size of 42.5(W)×58.5(H)×5.55(D) mm, with surface treament of Hard coating (3H), net weight of 13.9g (Typ.). As a VA, Normally Black, Transflective LCM product, COM24H2P94ULC can provides 300 cd/m² display brightness 800:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC).

COM24H2P94ULC Application
For andheld & PDA,Industrial.

COM24H2P94ULC  Specification

Part No. COM24H2P94ULC Size 2.4 inch
Resolution 240 × 320 (QVGA) Display Mode Transflective
Panel Interface Parallel RGB (1 ch, 6-bit) Touch Panel No

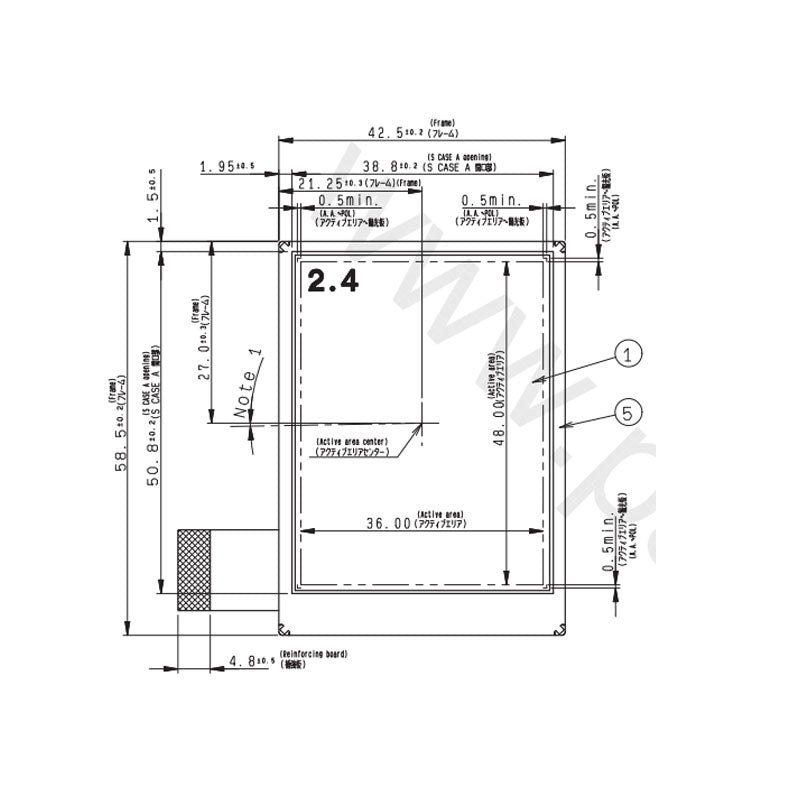

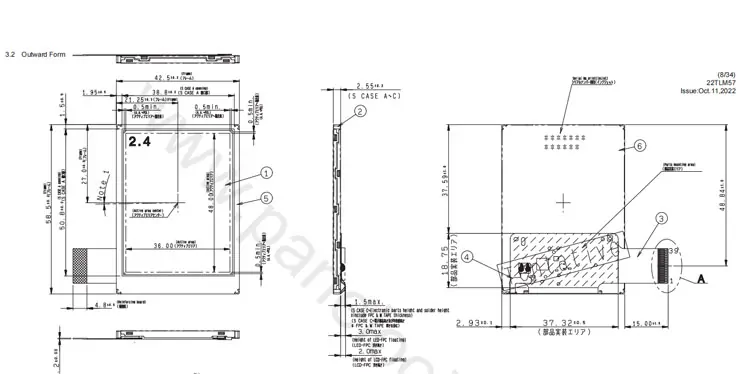

Outline Dimension 42.5(H) × 58.5(V) mm Active Area 36(H) × 48(V) mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 (Min.) Brightness 300 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

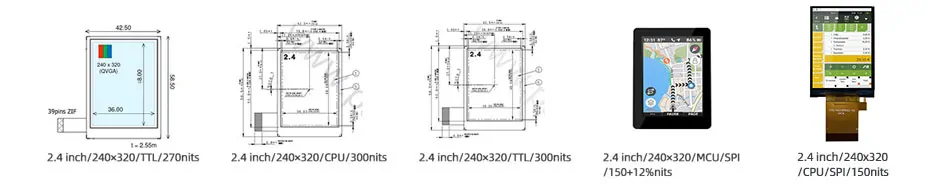

More 2.4 Inch Transflective LCD Display For Reference
COM24H2P71ULC (240x320, TTL, 270nits, -30~85°C, 42.5x58.5mm)
COM24H2P96ULC (240x320, CPU, 300nits, -20~70°C, 42.5x58.5mm)
COM24H2P94ULC (240x320, TTL, 300nits, -20~70°C, 42.5x58.5mm)
ET024TR01-H (240x320, CPU/SPI, 150nits, -20~60°C, 40.02x56.95mm)
ET024TR01-V (240x320, MCU/SPI, 150+12%, -20~70°C, 51.32x86.61mm, CTP(Optical)
