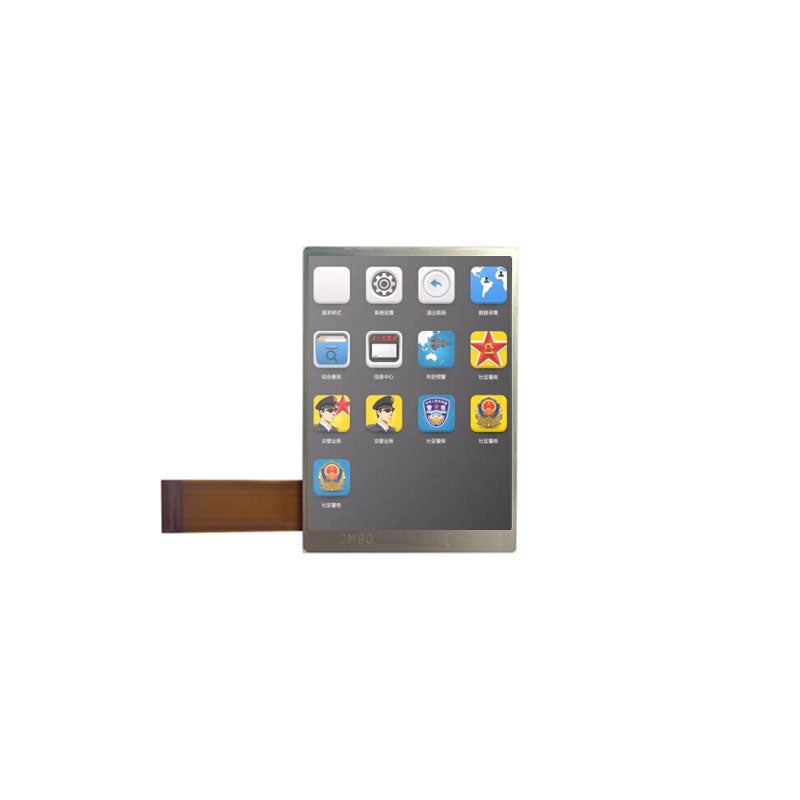

COM27H2P86ULC Ortustech 2.7 Inch TFT LCD Display 240x320 Parallel RGB Transflective LCD Panel For Handheld PDA

COM27H2P86ULC Ortustech 2.7 Inch TFT LCD Display 240x320 Parallel RGB Transflective LCD Panel For Handheld PDA

$65.28 USD
$65.28 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM27H2P86ULC Overview
COM27H2P64UTC is a 2.7 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, touchscreen 4-wire Resistive Touch.COM27H2P64UTC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 41.04(W)×54.72(H) mm, outline size of 47(W)×66(H)×5.64(D) mm, with surface treament of Clear, Hard coating (3H), net weight of 25.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM27H2P64UTC can provides 280 cd/m² display brightness 800:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 60/40 (Max.)(Tr/Td) ms.

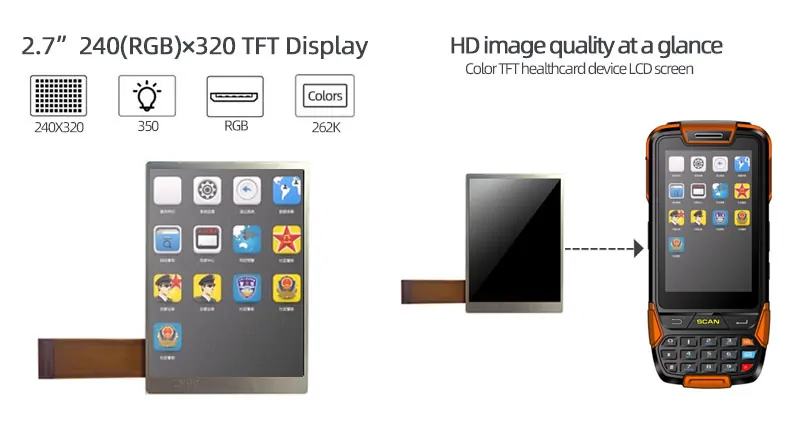

COM27H2P86ULC Application
For andheld & PDA,Industrial.

COM27H2P86ULC  Specification

Part No. COM27H2P86ULC Size 2.7 inch
Resolution 240 × 320 Display Mode Transflective
Panel Interface Parallel RGB (1 ch, 6-bit) Touch Panel No
Outline Dimension 47(W) × 66(H) mm Active Area 41.04(W) × 54.72(H) mm
Viewing Angle 80/80/80/80 (Min.) Brightness 350 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

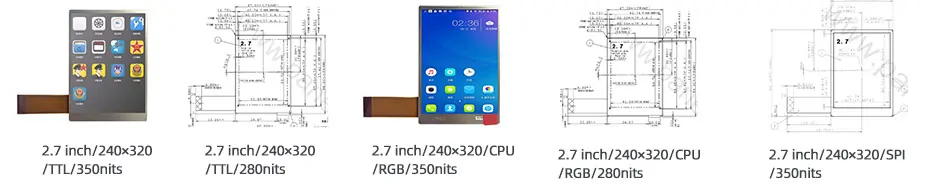

More 2.7 Inch Transflective LCD Display For Reference
COM27H2P86ULC (240x320, TTL, 350nits, -20~70°C, 47x66mm)
COM27H2P88UTC (240x320, TTL, 280nits, -20~70°C, 47x66mm, 4w-RTP)
COM27H2P90ULC (240x320, CPU/RGB, 350nits, -20~70°C, 47x66mm)
COM27H2P92UTC (240x320, CPU/RGB, 280nits, -20~70°C, 47x66mm, 4w-RTP)
COM27H2R06ULC (240x320, SPI, 350nits, -20~70°C, 47x66mm)
