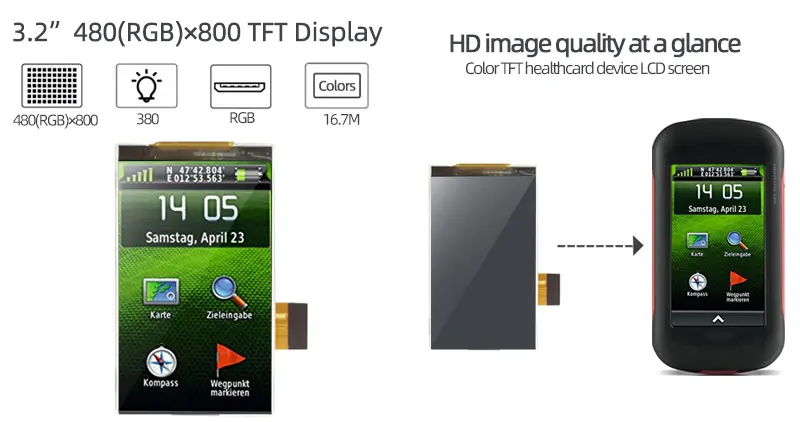

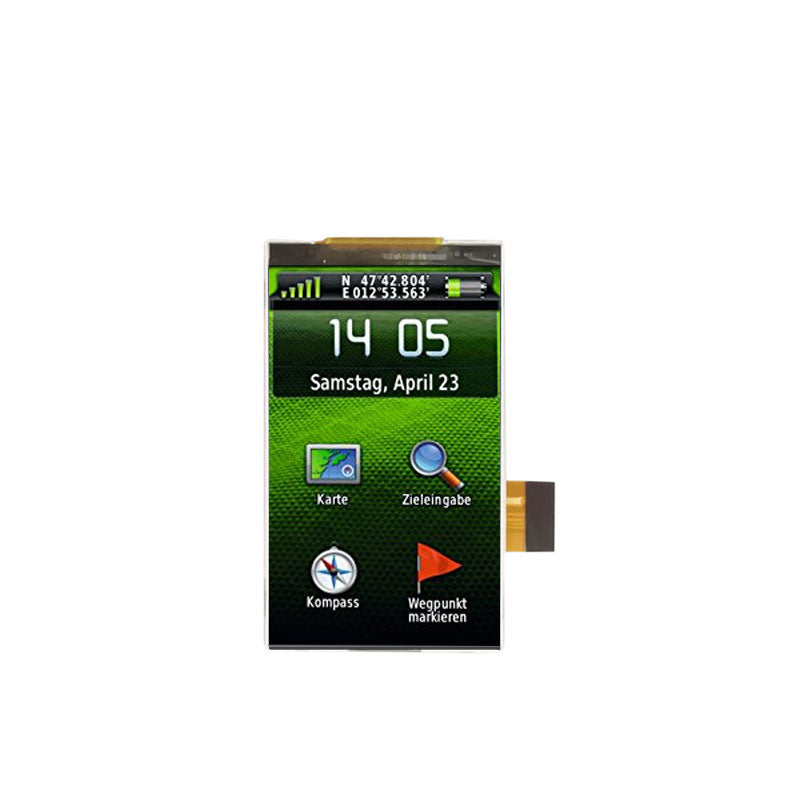

COM32H3N89ULC 3.2 Inch Sunlight Readable Display 480x800 Parallel RGB Transflective LCD Display

COM32H3N89ULC 3.2 Inch Sunlight Readable Display 480x800 Parallel RGB Transflective LCD Display

$58.12 USD
$71.76 USD $58.12 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM32H3N89ULC Overview
COM32H3N89ULC supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 294 PPI.It features active area of 41.4(W)×69(H) mm, outline size of 46.66(W)×78.55(H)×2.57(D) mm, with surface treament of Hard coating (3H), net weight of 14.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM32H3N89ULC can provides 380 cd/m² display brightness 1000:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 35% (NTSC). This product adopted 1S5P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM32H3N89ULC utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 46 pins Connector with power supply voltage of 1.8/2.7V (Typ.)(IOVCC/VCC). It's typical vertical frame rate (Fv) is 75Hz.

COM32H3N89ULC Application
For Handheld & PDA,Industrial.

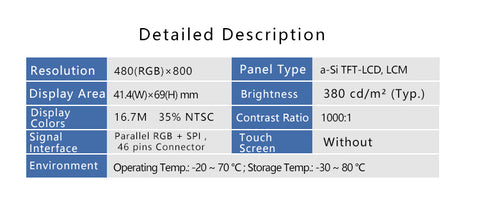

 COM32H3N89ULC  Specification

Part No. COM32H3N89ULC Size 3.2 inch
Resolution 480 × 800 Display Mode VA, Normally Black
Panel Interface Parallel RGB (1 ch, 8-bit) + SPI Touch Panel No

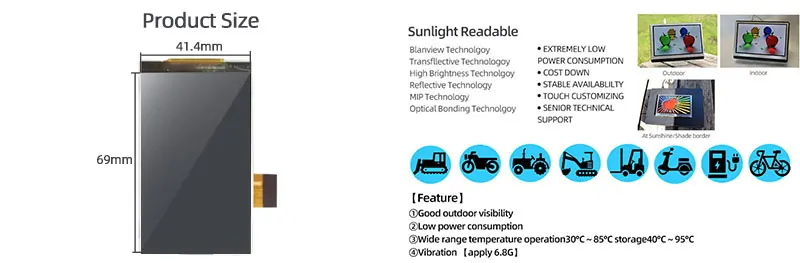

Outline Dimension 46.66 × 78.55 mm Active Area 41.4 × 69 mm
Viewing Angle 80/80/80/80 Brightness 380 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C
