COM32H3P25ULC Ortustech 3.2 Inch TFT LCD Display 480x800 MIPI Transflective LCD Panel For Handheld PDA

COM32H3P25ULC Ortustech 3.2 Inch TFT LCD Display 480x800 MIPI Transflective LCD Panel For Handheld PDA

$90.49 USD
$111.72 USD $90.49 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM32H3P25ULC Overview

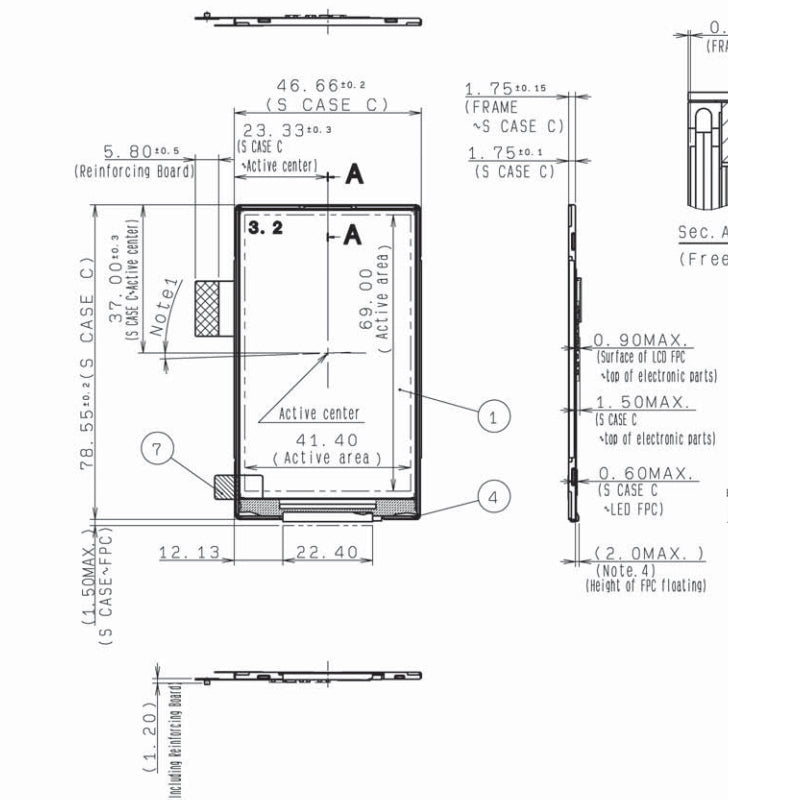

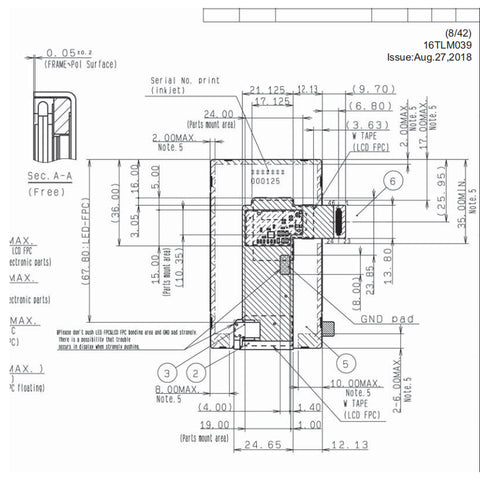

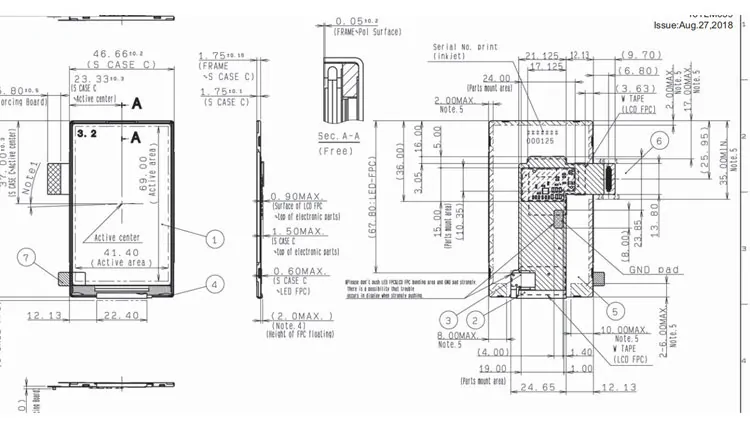

COM32H3P25ULC is a 3.2 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM32H3P25ULC supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 294 PPI. As for mechanical detail, it features active area of 41.4(W)×69(H) mm, outline size of 46.66(W)×78.55(H)×2(D) mm, with surface treament of Hard coating (3H), net weight of 14.7g (Typ.). As a VA, Normally Black, Transflective LCM product, COM32H3P25ULC can provides 380 cd/m² display brightness 1000:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Tf) ms.

COM32H3P25ULC Application
For andheld & PDA,Industrial.

COM32H3P25ULC  Specification

Part No. COM32H3P25ULC Size 3.2 inch
Resolution 480 × 800 Display Mode Transflective
Panel Interface MIPI (2 data lanes) Touch Panel No
Outline Dimension 46.66(H) × 78.55(V) mm Active Area 41.4(H) × 69(V) mm
Viewing Angle 80/80/80/80 (Min.) Brightness 380 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C




Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
