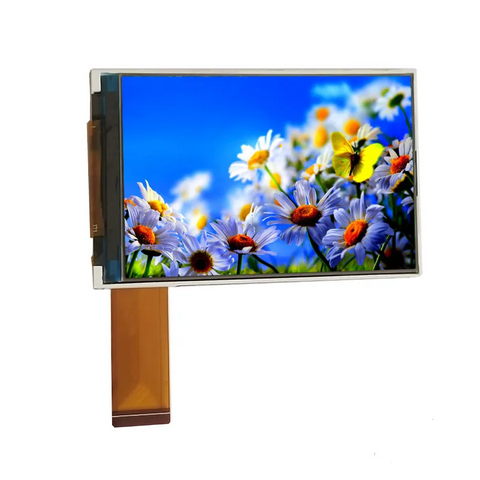

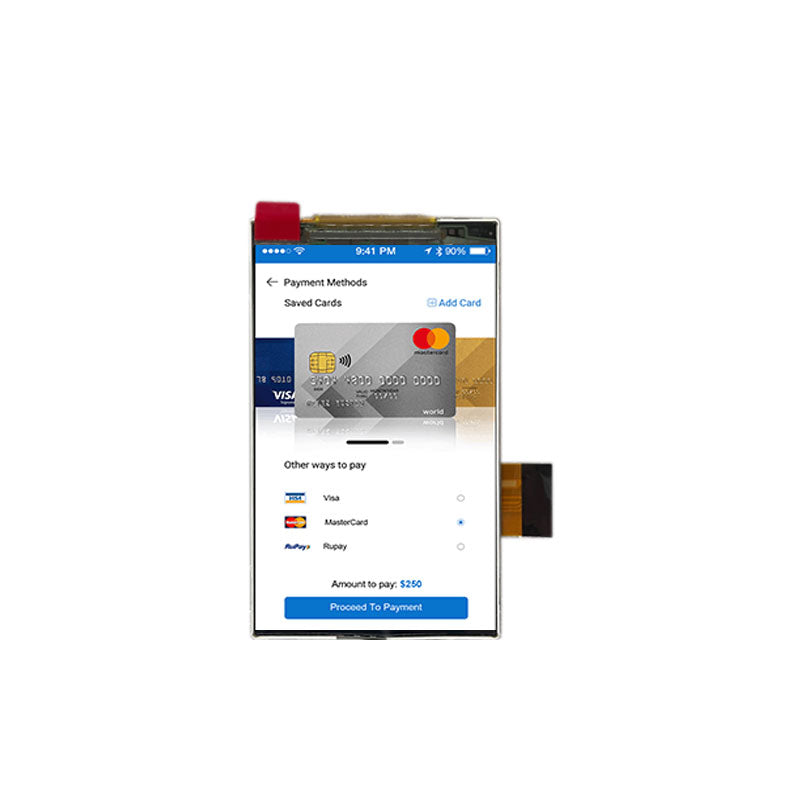

COM32H3P71ULC Ortustech 3.2 Inch TFT LCD Display 480x800 Parallel RGB Transflective Sunlight Readable LCD Panel

COM32H3P71ULC Ortustech 3.2 Inch TFT LCD Display 480x800 Parallel RGB Transflective Sunlight Readable LCD Panel

$53.17 USD
$65.64 USD $53.17 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM32H3P71ULC Overview

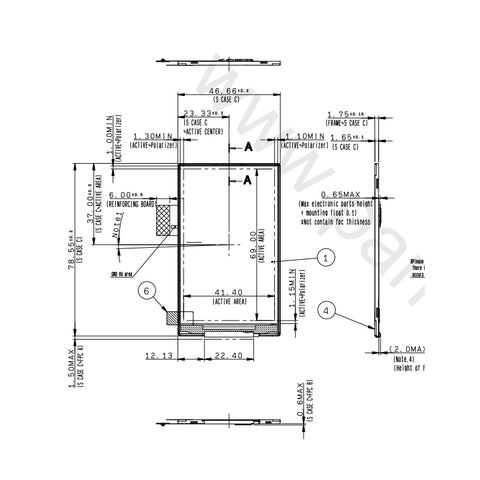

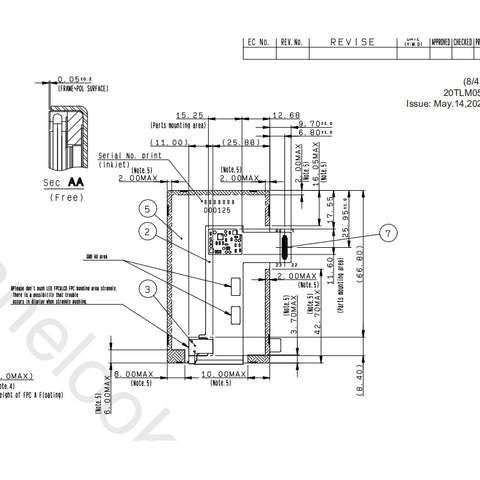

COM32H3P71ULC supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 294 PPI. As for mechanical detail, it features active area of 41.4(W)×69(H) mm, outline size of 46.66(W)×78.55(H)×2(D) mm, with surface treament of Hard coating (3H), net weight of 14.7g (Typ.). As a VA, Normally Black, Transflective LCM product, COM32H3P71ULC can provides 380 cd/m² display brightness 700:1 transimissive contrast ratio, 2.4:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Tf) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 35% (NTSC). This product adopted 1S5P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. COM32H3P71ULC utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 44 pins Connector with power supply voltage of 1.8/2.8V (Typ.)(VCCIO/VDD). It's typical vertical frame rate (Fv) is 60Hz.

COM32H3P71ULC Application
For Handheld & PDA,Industrial.

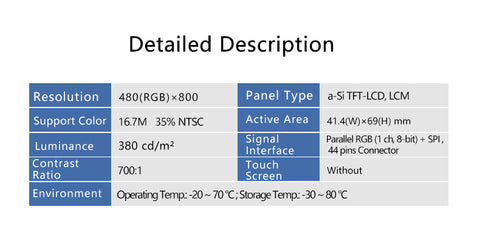

COM32H3P71ULC  Specification

Part No. COM32H3P71ULC Size 3.2 inch
Resolution 480 × 800 Display Mode VA, Transflective
Panel Interface Parallel RGB (1 ch, 8-bit) + SPI Touch Panel No
Outline Dimension 46.66(H) × 78.55(V) mm Active Area 41.4(H) × 69(V) mm
Viewing Angle 80/80/80/80 (Min.) Brightness 380 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C
