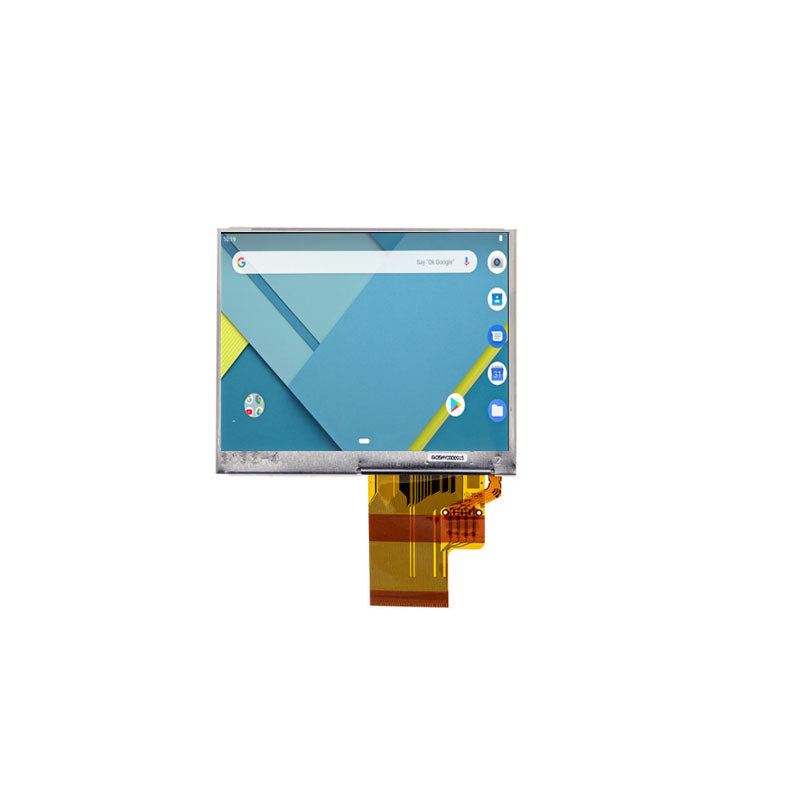

COM35H3P04XLC Ortustech 3.5 Inch TFT LCD Display 320×240 Parallel RGB Transflective Sunlight Readable LCD Panel

COM35H3P04XLC Ortustech 3.5 Inch TFT LCD Display 320×240 Parallel RGB Transflective Sunlight Readable LCD Panel

$71.20 USD
$79.12 USD $71.20 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM35H3P04XLC Overview

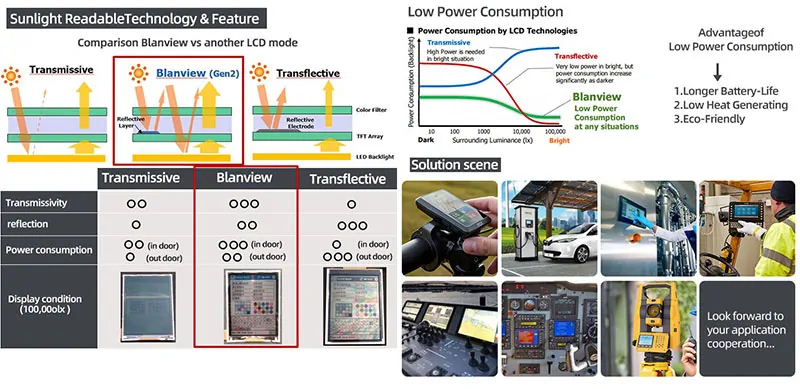

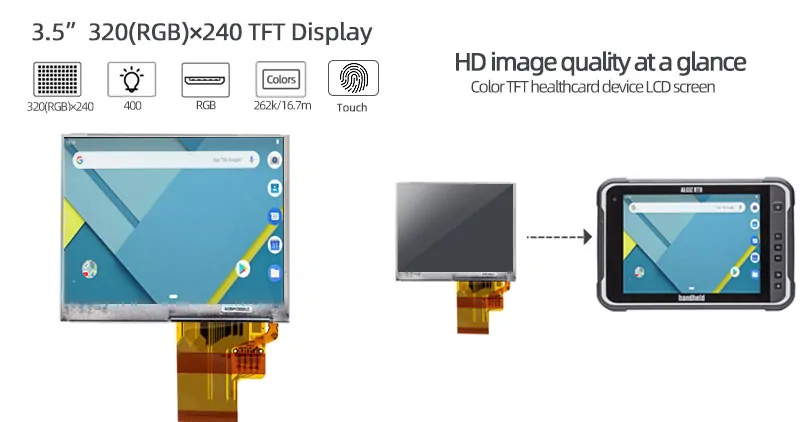

COM35H3P04XLC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 70.32(W)×52.74(H) mm, outline size of 76.9(W)×63.9(H)×3.38(D) mm, viewing area size of 73.22(W)×55.64(H) mm, with surface treament of Hard coating (3H), net weight of 33.0g. As a TN, Normally White, Transflective LCM product, COM35H3P04XLC can provides 300 cd/m² display brightness 400:1 transimissive contrast ratio, 9:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM35H3P04XLC utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

COM35H3P04XLC Application
For Handheld & PDA,Industrial.

COM35H3P04XLC  Specification

Part No. COM35H3P04XLC Size 3.5 inch
Resolution 320 × 240 (QVGA) Display Mode TN, Normally White
Panel Interface Parallel RGB (1 ch, 6/8-bit) Touch Panel No

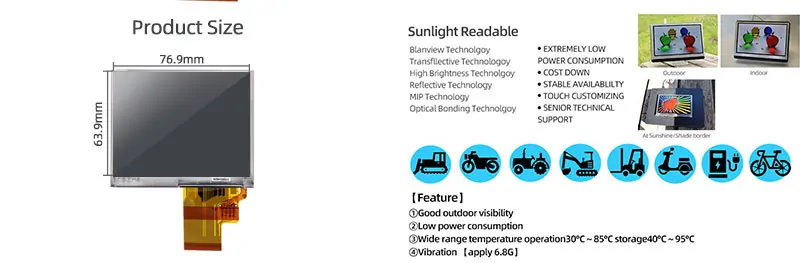

Outline Dimension 76.9 × 63.9 mm (H×V) Active Area 70.32 × 52.74 mm (H×V)
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 Brightness 300 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C
