COM35H3P05XTC Ortustech 3.5 Inch TFT LCD Display 320x240 Parallel RGB Transflective LCD Panel

COM35H3P05XTC Ortustech 3.5 Inch TFT LCD Display 320x240 Parallel RGB Transflective LCD Panel

$71.21 USD
$79.12 USD $71.21 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM35H3P05XTC Overview
COM35H3P05XTC is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch.COM35H3P05XTC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.32(W)×52.74(H) mm, outline size of 76.9(W)×63.9(H)×4.55(D) mm, viewing area size of 73.22(W)×55.64(H) mm, with surface treament of Hard coating (3H), net weight of 43.0g. As a TN, Normally White, Transflective LCM product, COM35H3P05XTC can provides 240 cd/m² display brightness 400:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms.

COM35H3P05XTC Application
For Handheld & PDA,Industrial.

COM35H3P05XTC  Specification

Part No. COM35H3P05XTC Size 3.5 inch
Resolution 320 × 240 Display Mode TN, Transflective
Panel Interface Parallel RGB (1 ch, 6/8-bit) Touch Panel Yes

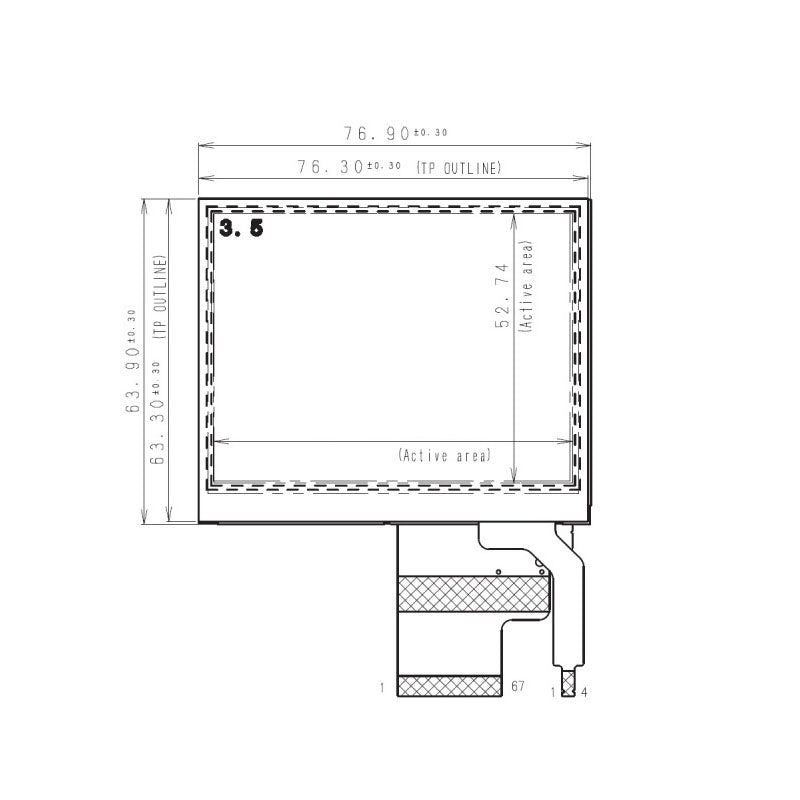

Outline Dimension 76.9 × 63.9 mm (H×V) Active Area 70.32 × 52.74 mm (H×V)
Viewing Angle 80/80/80/80 (Min.) Brightness 240 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C




Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
