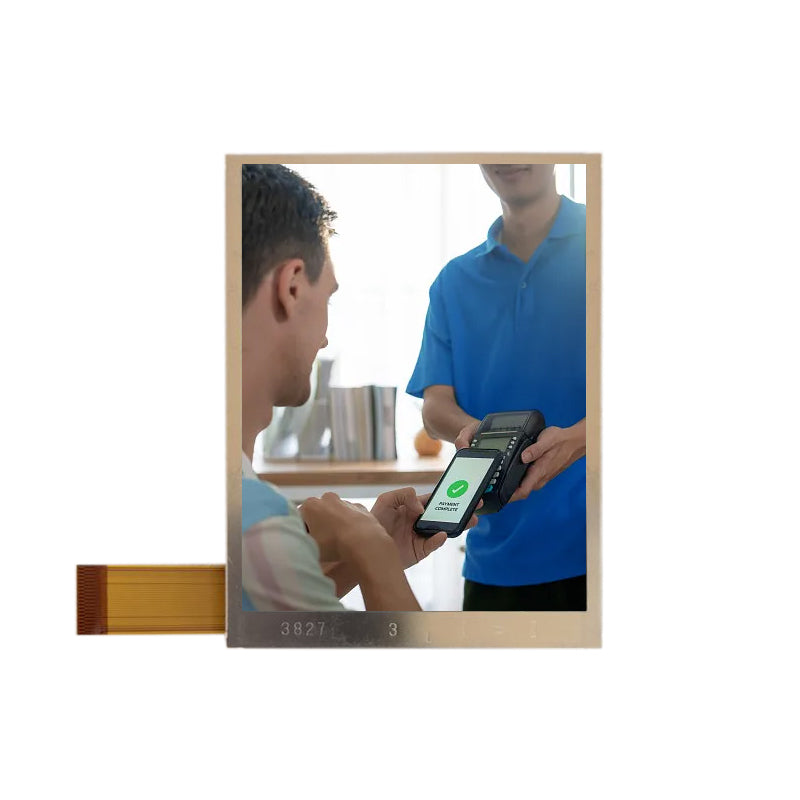

COM35H3P08ULC Ortustech 3.5 Inch TFT LCD Display 480×640 Parallel RGB Transflective Sunlight Readable LCD Panel

COM35H3P08ULC Ortustech 3.5 Inch TFT LCD Display 480×640 Parallel RGB Transflective Sunlight Readable LCD Panel

$74.20 USD
$75.00 USD $74.20 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM35H3P08ULC Overview

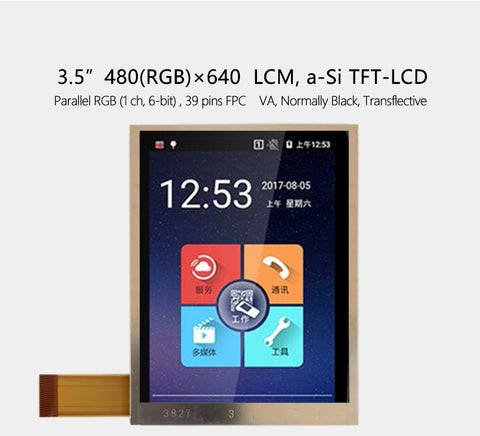

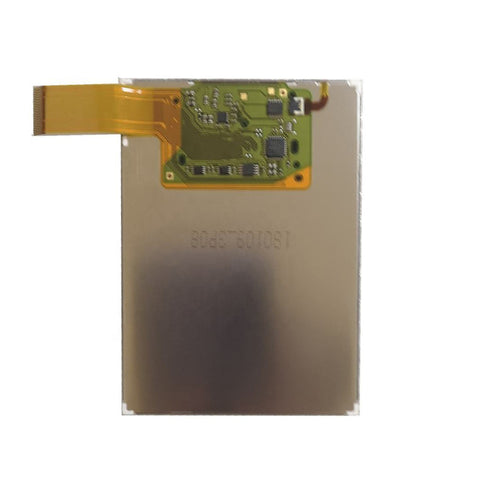

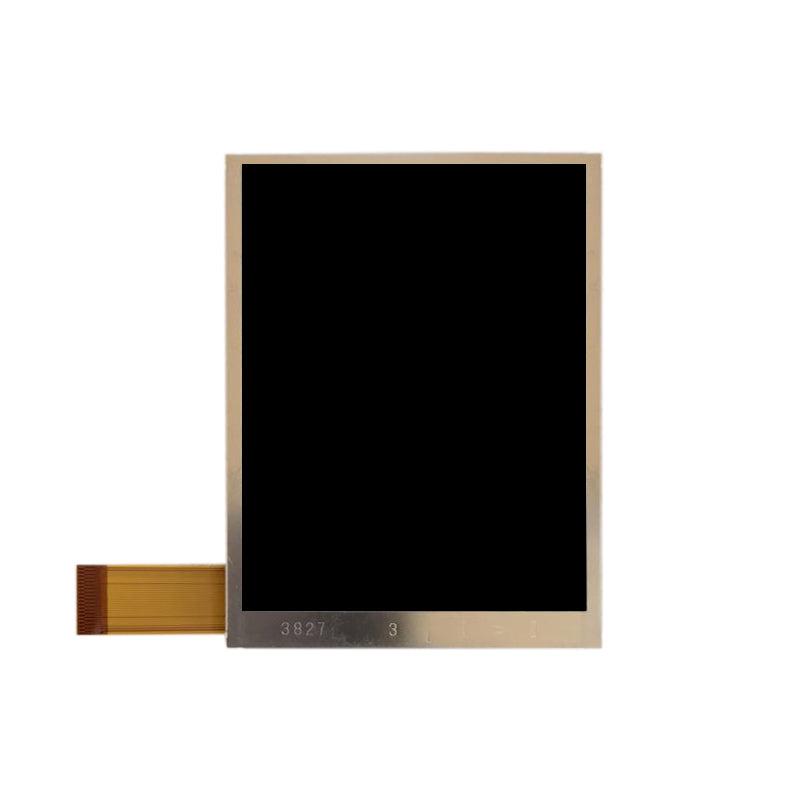

COM35H3P08ULC is a 3.5 inch diagonal a-Si TFT-LCD display screen, with a built-in WLED backlight, without backlight driver, without touch screen.COM35H3P08ULC supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.28(W)×71.04(H) mm, outline size of 63.5(W)×85(H)×4.53(D) mm, viewing area size of 57.44(W)×75.32(H) mm, with surface treament of Hard coating (3H), net weight of 30.8g (Typ.). As a VA, Normally Black, Transflective LCM product, COM35H3P08ULC can provides 250 cd/m² display brightness 600:1 transimissive contrast ratio, 5.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM35H3P08ULC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.0/1.8V (Typ.)(VDD/VCCIO). It's typical vertical frame rate (Fv) is 60Hz.

COM35H3P08ULC Application
For Handheld & PDA,Industrial.

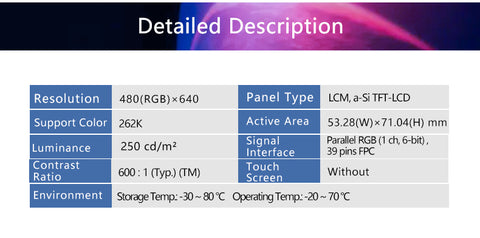

COM35H3P08ULC  Specification

Part No. COM35H3P08ULC Size 3.5 inch
Resolution 480 × 640 Display Mode VA, Normally Black, Transflective
Panel Interface Parallel RGB (1 ch, 6-bit) Touch Panel No

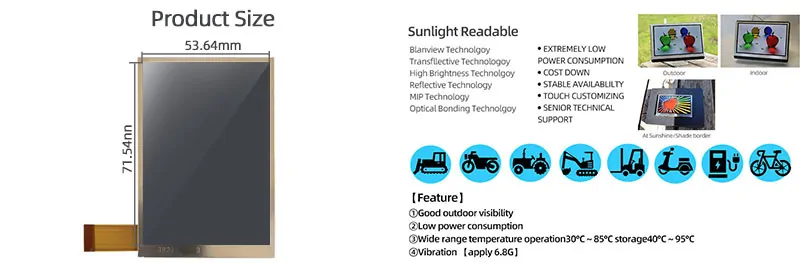

Outline Dimension 63.5 × 85 mm Active Area 53.28 × 71.04 mm
Viewing Angle 80/80/80/80 (Min.) Brightness 250 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C
