COM35H3P49XTC Ortustech 3.5 Inch Transflective Display Parallel RGB 240×320 Sunlight Readable TFT LCD Display With 4-wire Resistive Touch

COM35H3P49XTC Ortustech 3.5 Inch Transflective Display Parallel RGB 240×320 Sunlight Readable TFT LCD Display With 4-wire Resistive Touch

$101.20 USD
$101.20 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM35H3P49XTC Ortustech 3.5 Inch Transflective Display 240×320 Parallel RGB Sunlight Readable TFT LCD Display With 4-wire Resistive Touch Overview

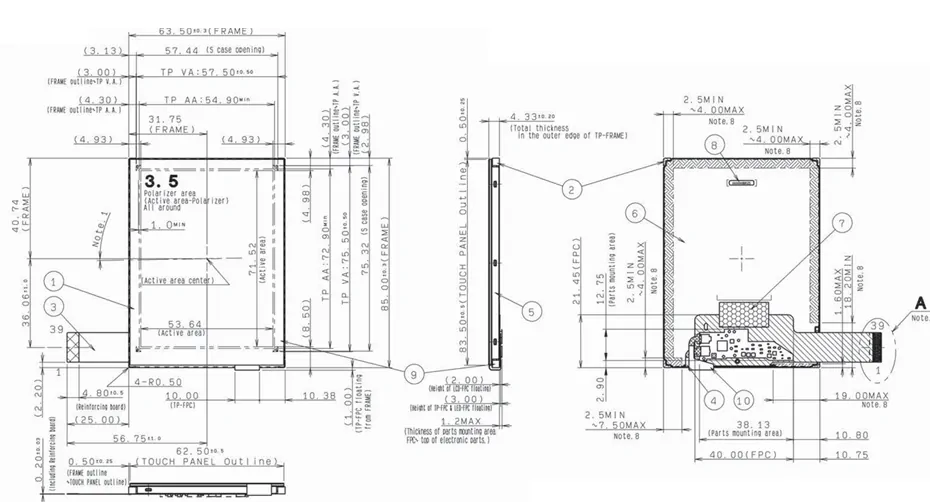

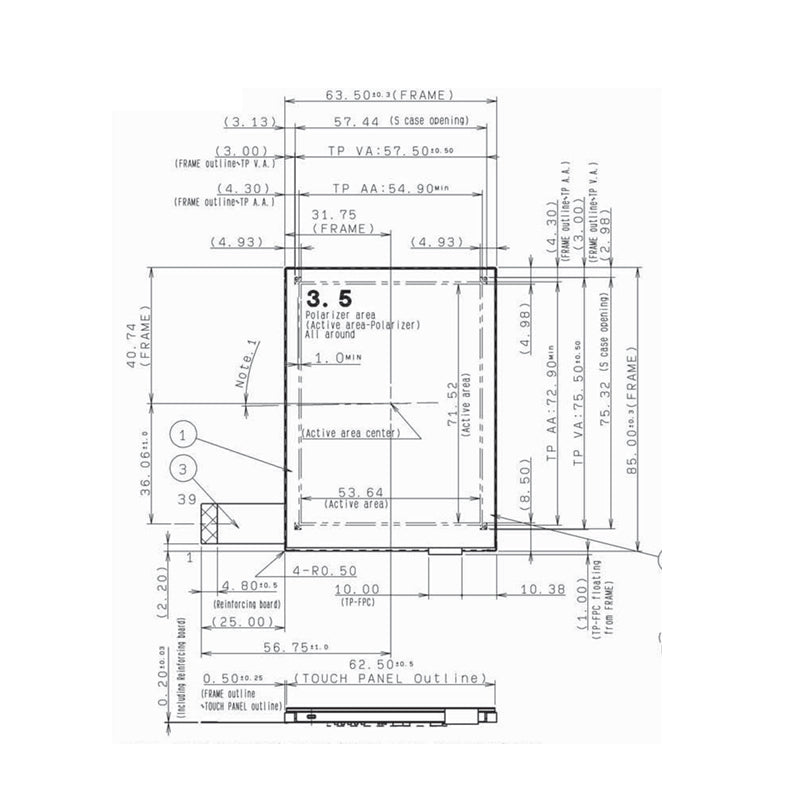

COM35H3P49XTC is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch.COM35H3P49XTC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.64(W)×71.52(H) mm, outline size of 63.5(W)×85(H) mm, with surface treament of Hard coating (3H), net weight of 43.5g (Typ.). As a TN, Normally White, Transflective LCM product, COM35H3P49XTC can provides 190 cd/m² display brightness 400:1 transimissive contrast ratio, 1.9:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM35H3P49XTC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
COM35H3P49XTC Ortustech 3.5 Inch Transflective Display 240×320 Parallel RGB Sunlight Readable TFT LCD Display With 4-wire Resistive Touch

COM35H3P49XTC  Specification

Part No. COM35H3P49XTC Size 3.5 inch
Resolution 240 × 320 Panel Interface Parallel RGB (1 ch, 6-bit)
Display Mode VA, Transflective Touch Yes
Outline Dimension 63.5 × 85 mm Active Area 53.64 × 71.52 mm
Viewing Angle L/R/U/D 80 / 80 / 80 / 80 Brightness 190 cd/m²
Operating Temperature -20 ~ 70°C Storage Temperature -30 ~ 80°C

Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

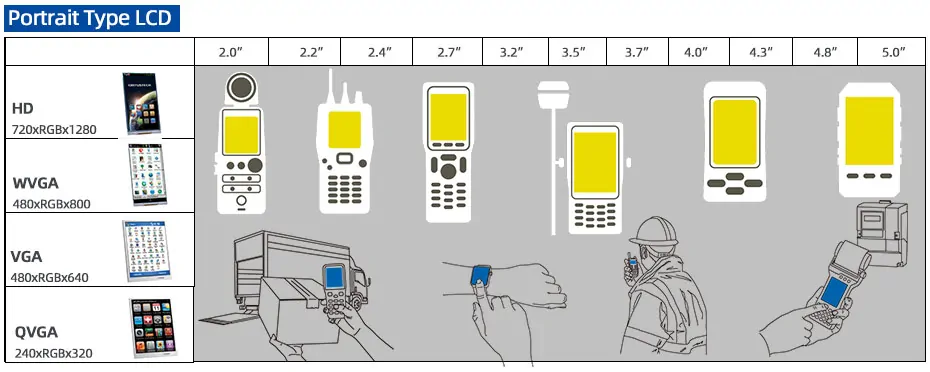

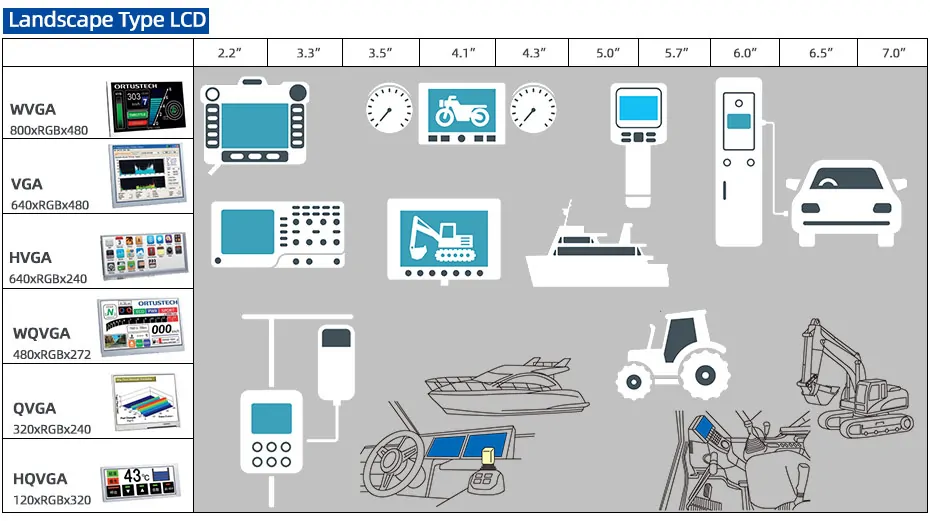

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
