COM35H3R07ULC Ortustech 3.5 Inch TFT LCD Display TTL Interface 240×320 Transflective LCD Panel

COM35H3R07ULC Ortustech 3.5 Inch TFT LCD Display TTL Interface 240×320 Transflective LCD Panel

$71.21 USD
$79.12 USD $71.21 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM35H3R07ULC Overview

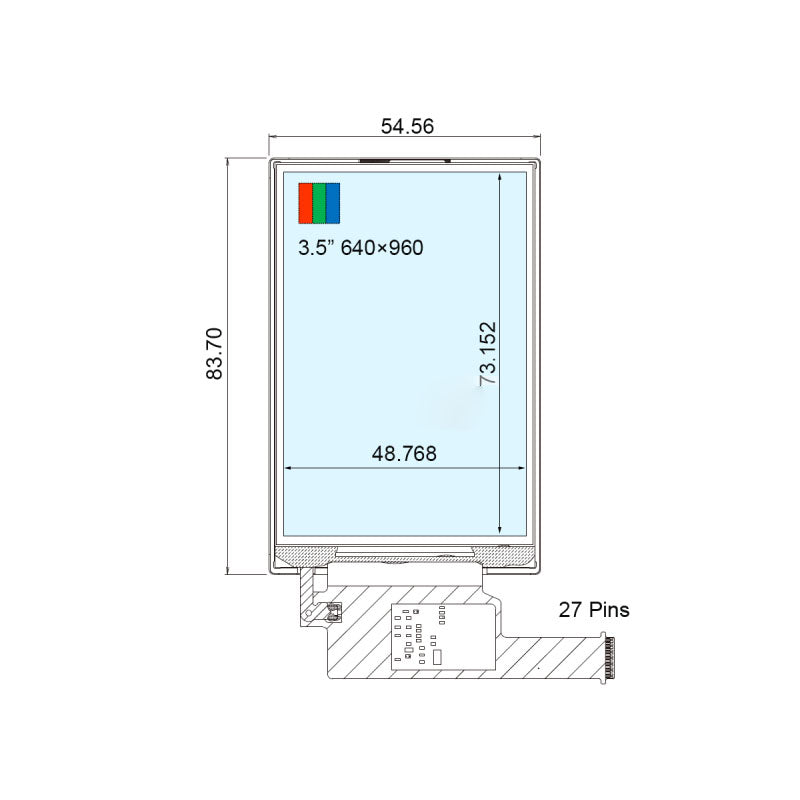

COM35H3R07ULC supports display 640(RGB)×960 (DVGA) with aspect ratio of 2:3 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 333 PPI. As for mechanical detail, it features active area of 48.768(W)×73.152(H) mm, outline size of 54.56(W)×83.7(H)×2.8(D) mm, with surface treament of Hard coating (2H), net weight of 26.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM35H3R07ULC can provides 400 cd/m² display brightness 700:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM35H3R07ULC utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 27 pins FPC with power supply voltage of 2.9/1.8V (Typ.)(VCC/IOVCC). It's typical vertical frame rate (Fv) is 60Hz.

COM35H3R07ULC Application
For Handheld & PDA,Industrial.

COM35H3R07ULC  Specification

Part No. COM35H3R07ULC Size 3.5 inch
Resolution 240 × 320 Display Mode VA, Transflective
Panel Interface TTL (1 ch, 6-bit) Touch Panel No
Outline Dimension 63.5 × 85 mm Active Area 53.64 × 71.52 mm
Viewing Angle 80/80/80/80 (Min.) Brightness 250 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

More 3.5 Inch Transflective LCD Display For Reference
ET035TR02-VT (282x470, MCU/SPI, 150+12%nits, -20~70°C, 51.32x86.61mm, CTP(Optical))
TX09D40VM3CAA (240x320, TTL, 340nits, -20~70°C, 64x86mm, 4w-RTP)
TX09D40VM3CBA (240x320, TTL, 430nits, -30~80°C, 64x86mm)
TX09D30VM1CCA (240x320, TTL, 250nits, -20~70°C, 64x86mm, 4w-RTP)
ET035TR01-TSRP (240x320, CPU/RGB/SPI, 100nits, -20~70°C, 64x85mm, 4w-RTP)
ET035TR02-TSRP (240x320, TTL, 150nits, -20~70°C, 64x85mm, 4w-RTP)
COM35H3R08ULC (240x320, TTL, 250nits, -20~70°C, 63.5x85mm)
COM35H3R10UTC (240x320, TTL, 200nits, -20~70°C, 63.5x85mm, 4w-RTP)
COM35H3R25ULC (240x320, CPU/SPI, 250nits, -20~70°C, 63.5x58mm)
COM35H3R12ULC (480x640, TTL, 330nits, -20~70°C, 63.5x85mm)
COM35H3P70ULC (480x640, MIPI, 900nits, -20~70°C, 61x81.75mm)
ET035A6448-1 (480x640, TTL, 120nits, -10~60°C, 64x85mm)
COM35H3R14UTC (480x640, TTL, 265nits, -20~70°C, 63.5x85mm, 4w-RTP)
COM35H3P58ULC (320x240, TTL, 600nits, -30~85°C, 79.8x66.5mm)
COM35H3R16ULC (320x240, TTL, 600nits, -20~70°C, 76.9x63.9mm)
COM35H3R18UTC (320x240, TTL, 480nits, -20~70°C, 76.9x63.9mm, 4w-RTP)
ET035TR01-TV (320x240, CPU/RGB/SPI, 150nits, -20~70°C, 52.26x80.6mm)
ET035TR01-VT (320x480, MCU/SPI, 150+12%nits, -20~70°C, 52.26x80.6mm, CTP(Optical))
COM35H3R07ULC (640x960, MIPI, 400nits, -20~70°C, 54.56x83.7mm)
