COM35H3R10UTC Ortustech 3.5 Inch TFT LCD Display 240x320 Parallel RGB Transflective LCD Panel With 4-wire Resistive Touch

COM35H3R10UTC Ortustech 3.5 Inch TFT LCD Display 240x320 Parallel RGB Transflective LCD Panel With 4-wire Resistive Touch

$78.20 USD
$78.20 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM35H3R10UTC Overview

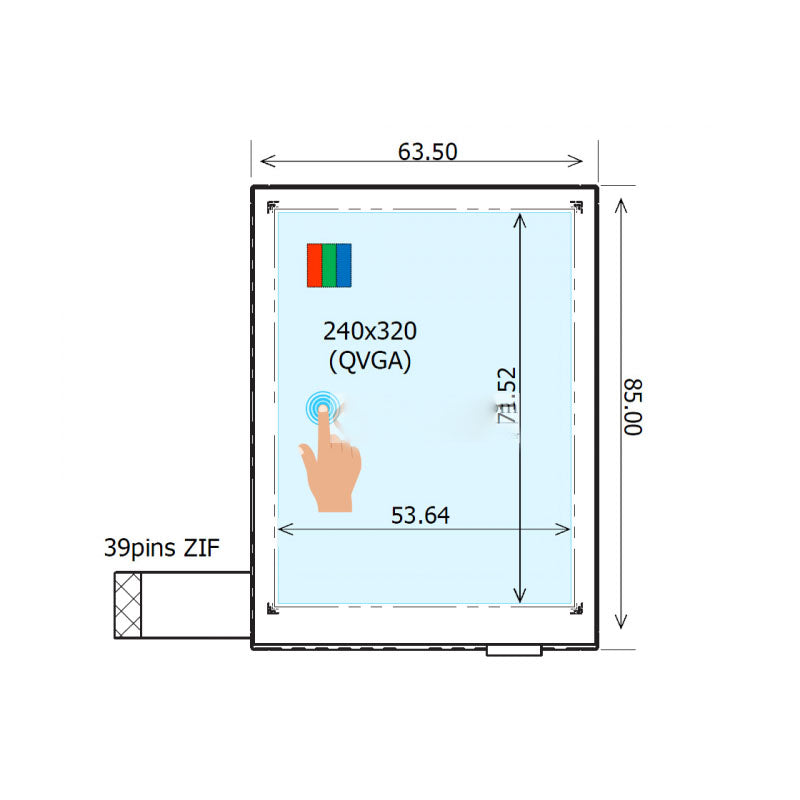

COM35H3R10UTC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 53.64(W)×71.52(H) mm, outline size of 63.5(W)×85(H) mm, viewing area size of 57.5(W)×75.5(H) mm, with surface treament of Hard coating (2H), net weight of 43.5g (Typ.). As a VA, Normally Black, Transflective LCM product, COM35H3R10UTC can provides 250 cd/m² display brightness 800:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC).

COM35H3R10UTC Application
For Handheld & PDA,Industrial.

COM35H3R10UTC  Specification

Part No. COM35H3R10UTC Size 3.5 inch
Resolution 240 × 320 Panel Interface Parallel RGB (1 ch, 6-bit)
Display Mode VA, Transflective Touch Yes
Outline Dimension 63.5 × 85 mm Active Area 53.64 × 71.52 mm
Viewing Angle L/R/U/D 80 / 80 / 80 / 80 (Min.) Brightness 250 cd/m² (Typ.)
Operation Temperature -20 ~ 70°C Storage Temperature -30 ~ 80°C

More 3.5 Inch Transflective LCD Display For Reference
ET035TR02-VT (282x470, MCU/SPI, 150+12%nits, -20~70°C, 51.32x86.61mm, CTP(Optical))
TX09D40VM3CAA (240x320, TTL, 340nits, -20~70°C, 64x86mm, 4w-RTP)
TX09D40VM3CBA (240x320, TTL, 430nits, -30~80°C, 64x86mm)
TX09D30VM1CCA (240x320, TTL, 250nits, -20~70°C, 64x86mm, 4w-RTP)
ET035TR01-TSRP (240x320, CPU/RGB/SPI, 100nits, -20~70°C, 64x85mm, 4w-RTP)
ET035TR02-TSRP (240x320, TTL, 150nits, -20~70°C, 64x85mm, 4w-RTP)
COM35H3R08ULC (240x320, TTL, 250nits, -20~70°C, 63.5x85mm)
COM35H3R10UTC (240x320, TTL, 200nits, -20~70°C, 63.5x85mm, 4w-RTP)
COM35H3R25ULC (240x320, CPU/SPI, 250nits, -20~70°C, 63.5x58mm)
COM35H3R12ULC (480x640, TTL, 330nits, -20~70°C, 63.5x85mm)
COM35H3P70ULC (480x640, MIPI, 900nits, -20~70°C, 61x81.75mm)
ET035A6448-1 (480x640, TTL, 120nits, -10~60°C, 64x85mm)
COM35H3R14UTC (480x640, TTL, 265nits, -20~70°C, 63.5x85mm, 4w-RTP)
COM35H3P58ULC (320x240, TTL, 600nits, -30~85°C, 79.8x66.5mm)
COM35H3R16ULC (320x240, TTL, 600nits, -20~70°C, 76.9x63.9mm)
COM35H3R18UTC (320x240, TTL, 480nits, -20~70°C, 76.9x63.9mm, 4w-RTP)
ET035TR01-TV (320x240, CPU/RGB/SPI, 150nits, -20~70°C, 52.26x80.6mm)
ET035TR01-VT (320x480, MCU/SPI, 150+12%nits, -20~70°C, 52.26x80.6mm, CTP(Optical))
COM35H3R07ULC (640x960, MIPI, 400nits, -20~70°C, 54.56x83.7mm)
