COM35H3R16ULC Ortustech 3.5 Inch TFT LCD Display 320×240 TTL Transflective Sunlight Readable LCD Panel

COM35H3R16ULC Ortustech 3.5 Inch TFT LCD Display 320×240 TTL Transflective Sunlight Readable LCD Panel

$68.85 USD
$76.50 USD $68.85 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM35H3R16ULC Overview
COM35H3R16ULC supports display 320×240(RGB) (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Horizontal Stripe.It features active area of 70.32(W)×52.74(H) mm, outline size of 76.9(W)×63.9(H)×3.3(D) mm, viewing area size of 73.22(W)×55.64(H) mm, with surface treament of Hard coating (2H), net weight of 32.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM35H3R16ULC can provides 600 cd/m² display brightness 800:1 transimissive contrast ratio, 4.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC).

COM35H3R16ULC Application
For Handheld & PDA,Industrial.

COM35H3R16ULC  Specification

Part No. COM35H3R16ULC Size 3.5 inch
Resolution 320 × 240 (QVGA) Display Mode VA, Transflective
Panel Interface TTL (1 ch, 8-bit) Touch Panel No

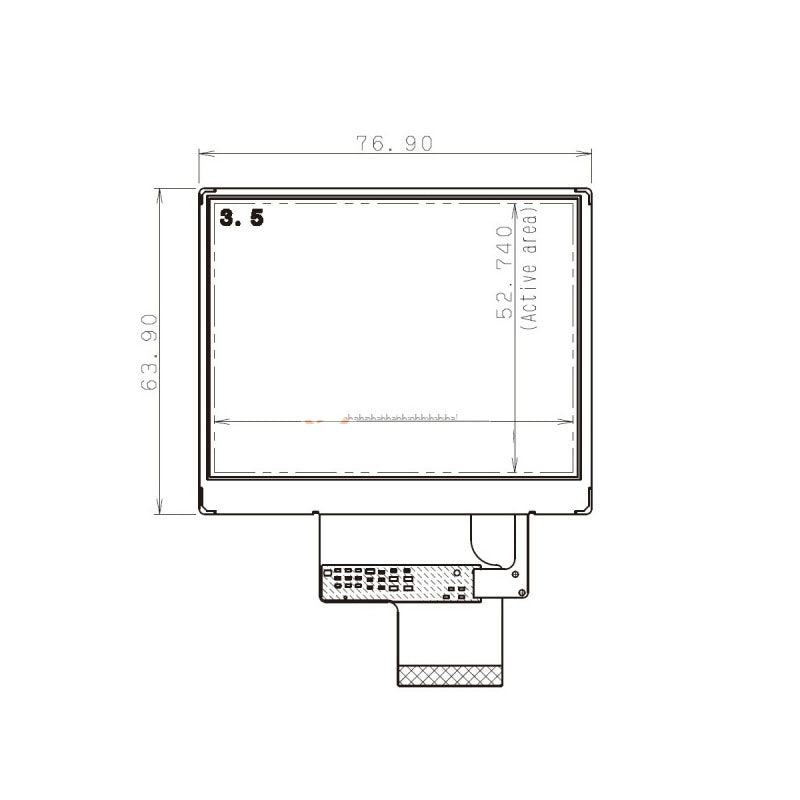

Outline Dimension 76.9(H) × 63.9(V) mm Active Area 70.32(H) × 52.74(V) mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 (Min.) Brightness 600 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C



More 3.5 Inch Transflective LCD Display For Reference
ET035TR02-VT (282x470, MCU/SPI, 150+12%nits, -20~70°C, 51.32x86.61mm, CTP(Optical))
TX09D40VM3CAA (240x320, TTL, 340nits, -20~70°C, 64x86mm, 4w-RTP)
TX09D40VM3CBA (240x320, TTL, 430nits, -30~80°C, 64x86mm)
TX09D30VM1CCA (240x320, TTL, 250nits, -20~70°C, 64x86mm, 4w-RTP)
ET035TR01-TSRP (240x320, CPU/RGB/SPI, 100nits, -20~70°C, 64x85mm, 4w-RTP)
ET035TR02-TSRP (240x320, TTL, 150nits, -20~70°C, 64x85mm, 4w-RTP)
COM35H3R08ULC (240x320, TTL, 250nits, -20~70°C, 63.5x85mm)
COM35H3R10UTC (240x320, TTL, 200nits, -20~70°C, 63.5x85mm, 4w-RTP)
COM35H3R25ULC (240x320, CPU/SPI, 250nits, -20~70°C, 63.5x58mm)
COM35H3R12ULC (480x640, TTL, 330nits, -20~70°C, 63.5x85mm)
COM35H3P70ULC (480x640, MIPI, 900nits, -20~70°C, 61x81.75mm)
ET035A6448-1 (480x640, TTL, 120nits, -10~60°C, 64x85mm)
COM35H3R14UTC (480x640, TTL, 265nits, -20~70°C, 63.5x85mm, 4w-RTP)
COM35H3P58ULC (320x240, TTL, 600nits, -30~85°C, 79.8x66.5mm)
COM35H3R16ULC (320x240, TTL, 600nits, -20~70°C, 76.9x63.9mm)
COM35H3R18UTC (320x240, TTL, 480nits, -20~70°C, 76.9x63.9mm, 4w-RTP)
ET035TR01-TV (320x240, CPU/RGB/SPI, 150nits, -20~70°C, 52.26x80.6mm)
ET035TR01-VT (320x480, MCU/SPI, 150+12%nits, -20~70°C, 52.26x80.6mm, CTP(Optical))
COM35H3R07ULC (640x960, MIPI, 400nits, -20~70°C, 54.56x83.7mm)
