COM35H3R29ULC Ortustech 3.5 Inch Blanview Display High Brightness MIPI 480×640 TFT LCD Display

COM35H3R29ULC Ortustech 3.5 Inch Blanview Display High Brightness MIPI 480×640 TFT LCD Display

$63.35 USD
$78.22 USD $63.35 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM35H3R29ULC Ortustech 3.5 Inch Blanview Display High Brightness 480×640 MIPI TFT LCD Display Overview

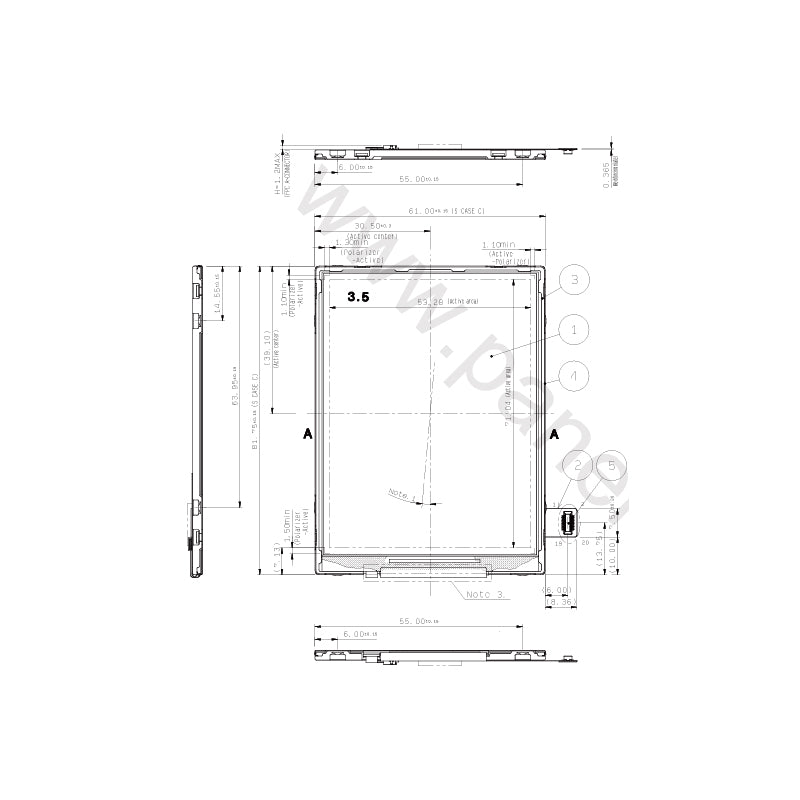

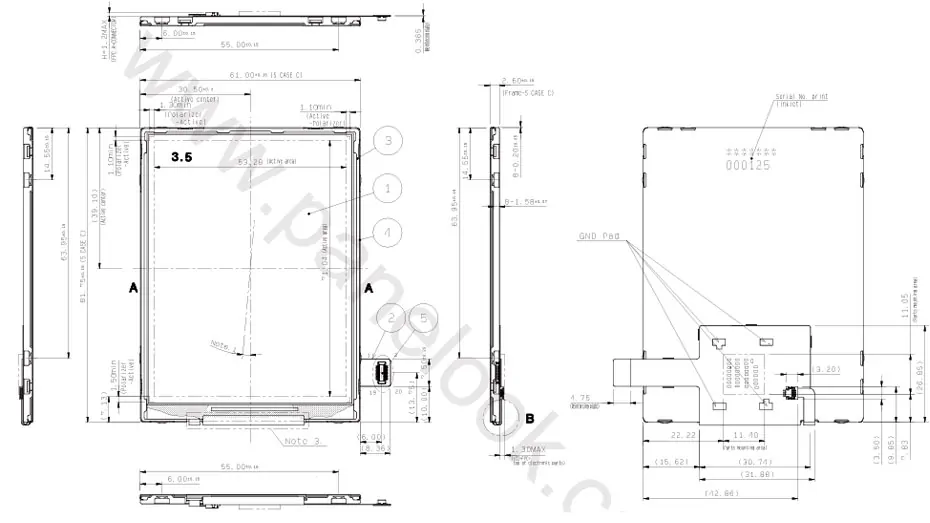

COM35H3R29ULC supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 53.28(W)×71.04(H) mm, outline size of 61(W)×81.75(H)×2.75(D) mm, with surface treament of Hard coating (2H), net weight of 27.7g. As a VA, Normally Black, Transflective LCM product, COM35H3R29ULC can provides 900 cd/m² display brightness 900:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. COM35H3R29ULC utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 1.8/2.8V (Typ.)(VCCIO/VDD). It's typical vertical frame rate (Fv) is 60Hz.
COM35H3R29ULC Ortustech 3.5 Inch Blanview Display High Brightness 480×640 MIPI TFT LCD Display

COM35H3R29ULC  Specification

Part No. COM35H3R29ULC Size 3.5 inch
Resolution 480 × 640 Display Mode Transflective
Panel Interface MIPI (2 data lanes) Touch Panel No
Outline Dimension 61 × 81.75 mm Active Area 53.28 × 71.04 mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 Brightness 900 cd/m²
Operation Temp. -20 ~ 70°C Storage Temp. -20 ~ 80°C



Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
