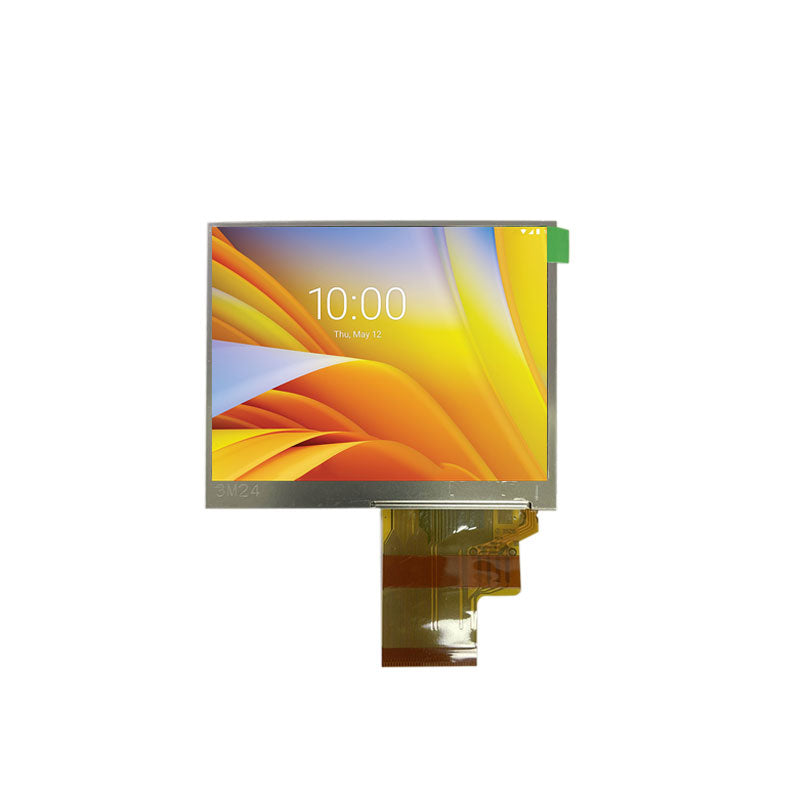

COM35T3829XLC Ortustech 3.5 Inch TFT LCD Display 320x240 Parallel RGB LCD Panel

COM35T3829XLC Ortustech 3.5 Inch TFT LCD Display 320x240 Parallel RGB LCD Panel

$62.69 USD
$77.40 USD $62.69 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM35T3829XLC Overview
COM35T3829XLC is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM35T3829XLC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 70.32(W)×52.74(H) mm, outline size of 76.9(W)×63.9(H)×3.38(D) mm, viewing area size of 73.22(W)×55.64(H) mm, with surface treament of Hard coating (3H), net weight of 33.0g (Typ.). As a TN, Normally White, Transmissive LCM product, COM35T3829XLC can provides 500 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM35T3829XLC utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

COM35T3829XLC Application
For Handheld & PDA,Industrial.

COM35T3829XLC  Specification

Part No. COM35T3829XLC Size 3.5 inch
Resolution 320 × 240 (QVGA) Display Mode TN, Transmissive
Panel Interface Parallel RGB (1 ch, 6/8-bit) Touch Panel No
Outline Dimension 76.9(H) × 63.9(V) mm Active Area 70.32(H) × 52.74(V) mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 (Min.) Brightness 500 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C
