COM35T3N91XLC Ortustech 3.5 Inch Blanview Display 240×320 Parallel RGB Transmissive TFT LCD Display

COM35T3N91XLC Ortustech 3.5 Inch Blanview Display 240×320 Parallel RGB Transmissive TFT LCD Display

$31.50 USD
$35.00 USD $31.50 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM35T3N91XLC Ortustech 3.5 Inch Blanview Display 240×320 Parallel RGB TFT LCD Display Overview

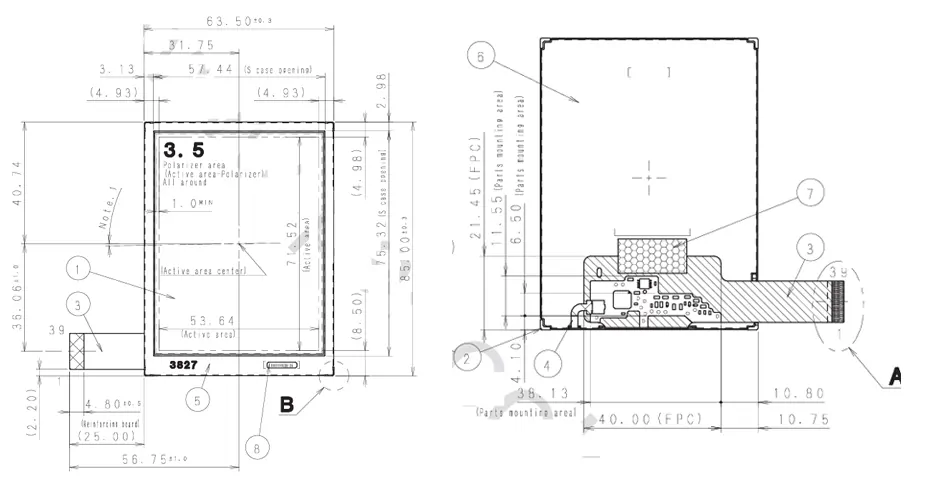

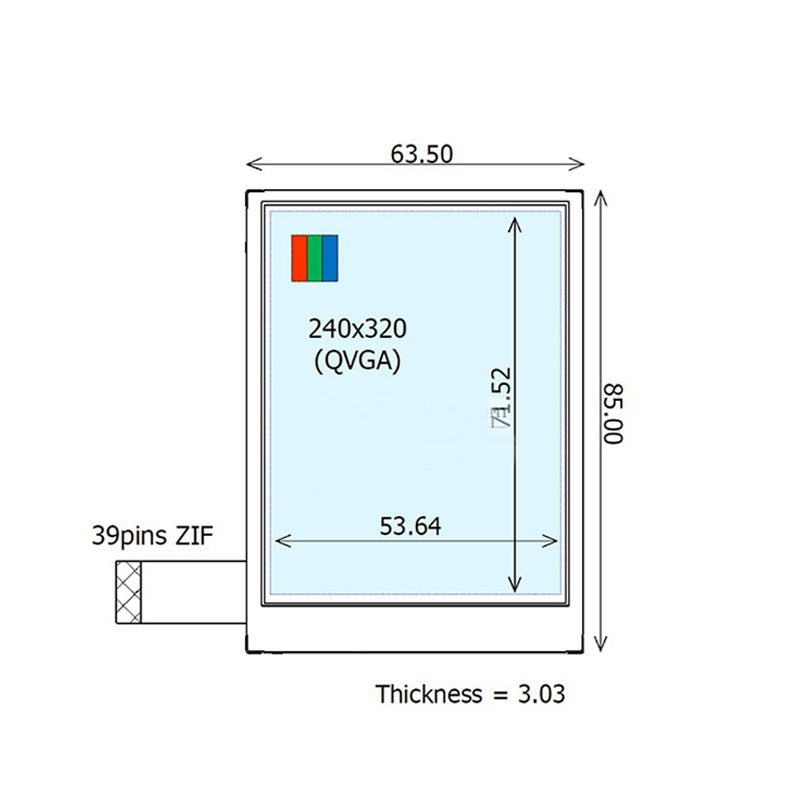

COM35T3N91XLC is a 3.5 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. COM35T3N91XLC supports display 240(RGB)×320 (QVGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 53.64(W)×71.52(H) mm, outline size of 63.5(W)×85(H)×4.2(D) mm, viewing area size of 57.44(W)×75.32(H) mm, with surface treament of Hard coating (3H), net weight of 33.0g. As a TN, Normally White, Transmissive LCM product, COM35T3N91XLC can provides 500 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM35T3N91XLC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
COM35T3N91XLC Ortustech 3.5 Inch Blanview Display 240×320 Parallel RGB TFT LCD Display

COM35T3N91XLC  Specification

Part No. COM35T3N91XLC Size 3.5 inch
Resolution 240 × 320 Display Mode Transmissive
Panel Interface Parallel RGB (1 ch, 6-bit) Touch Panel No
Outline Dimension 63.5(H) × 85(V) mm Active Area 53.64(H) × 71.52(V) mm
Viewing Angle 80/80/80/80 (Min.) Brightness 500 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C



Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
