COM37H3P47UTC Ortustech 3.7 Inch Transflective Display Parallel RGB 480×640 Sunlight Readable TFT LCD Display With 4-wire Resistive Touch

COM37H3P47UTC Ortustech 3.7 Inch Transflective Display Parallel RGB 480×640 Sunlight Readable TFT LCD Display With 4-wire Resistive Touch

$85.99 USD
$95.55 USD $85.99 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM37H3P47UTC Ortustech 3.7 Inch Transflective Display 480×640 Parallel RGB Sunlight Readable TFT LCD Display With 4-wire Resistive Touch Overview

COM37H3P47UTC supports display 480(RGB)×640 (VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 56.16(W)×74.88(H) mm, outline size of 65(W)×89(H)×5.8(D) mm, with surface treament of Glare (Haze 0%), Hard coating (3H), net weight of 43.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM37H3P47UTC can provides 270 cd/m² display brightness 600:1 transimissive contrast ratio, 5.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM37H3P47UTC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 1.8/3.0V (Typ.)(VCCIO/VDD). It's typical vertical frame rate (Fv) is 60Hz.

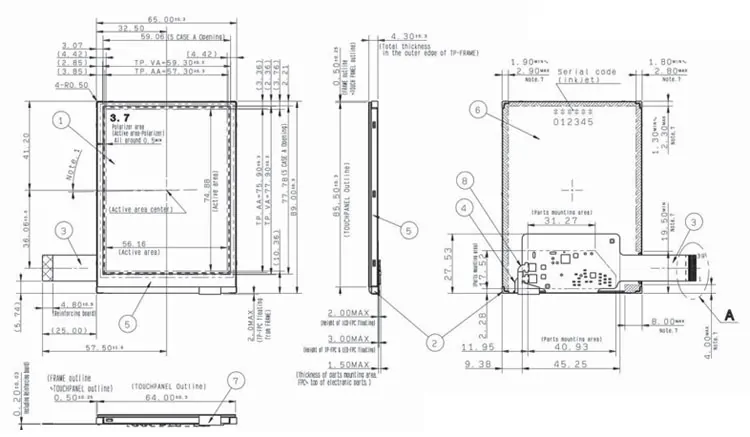

COM37H3P47UTC Ortustech 3.7 Inch Transflective Display 480×640 Parallel RGB Sunlight Readable TFT LCD Display With 4-wire Resistive Touch

COM37H3P47UTC  Specification

Part No. COM37H3P47UTC Size 3.7 inch
Resolution 480 × 640 (VGA) Display Mode VA, Transflective
Panel Interface Parallel RGB (1 ch, 6-bit) Touch Panel Yes
Outline Dimension 65(W) × 89(H) mm Active Area 56.16(W) × 74.88(H) mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 (Min.) Brightness 270 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C



Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
