COM40H4N40ULC Ortustech 4 Inch Transflective Display MIPI 480×800 Sunlight Readable TFT LCD Display

COM40H4N40ULC Ortustech 4 Inch Transflective Display MIPI 480×800 Sunlight Readable TFT LCD Display

$57.82 USD
$64.25 USD $57.82 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM40H4N40ULC Ortustech 4 Inch Transflective Display 480×800 MIPI Sunlight Readable TFT LCD Display Overview

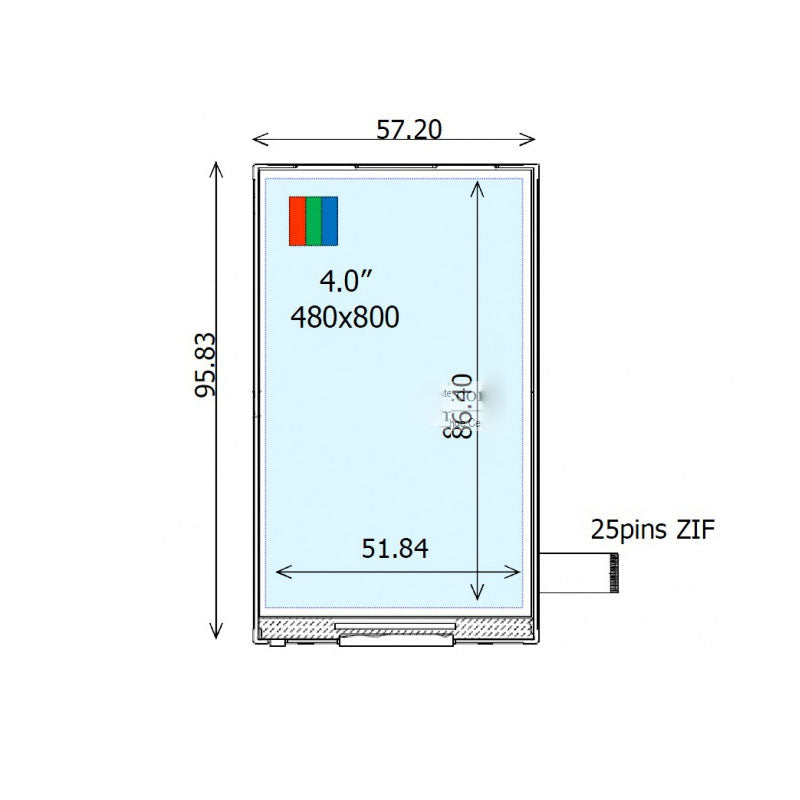

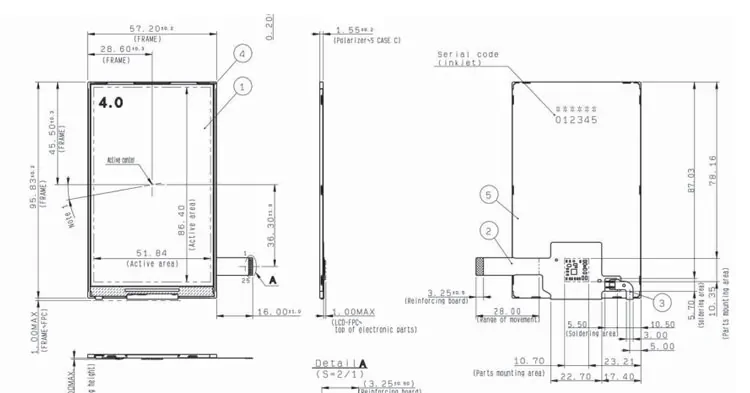

COM40H4N40ULC supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 51.84(W)×86.4(H) mm, outline size of 57.2(W)×95.83(H)×2.75(D) mm, with surface treament of Hard coating (2H), net weight of 16.5g (Typ.). As a VA, Normally Black, Transflective LCM product, COM40H4N40ULC can provides 490 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM40H4N40ULC utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 25 pins FPC with power supply voltage of 1.8/3.3V (Typ.)(IOVCC/VDD). It's typical vertical frame rate (Fv) is 60Hz.
COM40H4N40ULC Ortustech 4 Inch Transflective Display 480×800 MIPI Sunlight Readable TFT LCD Display

COM40H4N40ULC  Specification

Part No. COM40H4N40ULC Size 4 inch
Resolution 480 × 800 Display Mode VA, Transflective
Panel Interface MIPI (2 data lanes) Touch Panel No
Outline Dimension 57.2 × 95.83 mm Active Area 51.84 × 86.4 mm
Viewing Angle 80/80/80/80 (Typ.) Brightness 490 cd/m² (Typ.)
Operation Temp. -20 ~ 80°C Storage Temp. -30 ~ 80°C



Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
