COM40H4P25ULC Ortustech 4 Inch TFT LCD Display 480×800 MIPI Transflective Sunlight Readable LCD Panel

COM40H4P25ULC Ortustech 4 Inch TFT LCD Display 480×800 MIPI Transflective Sunlight Readable LCD Panel

$121.45 USD
$121.45 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM40H4P25ULC Overview

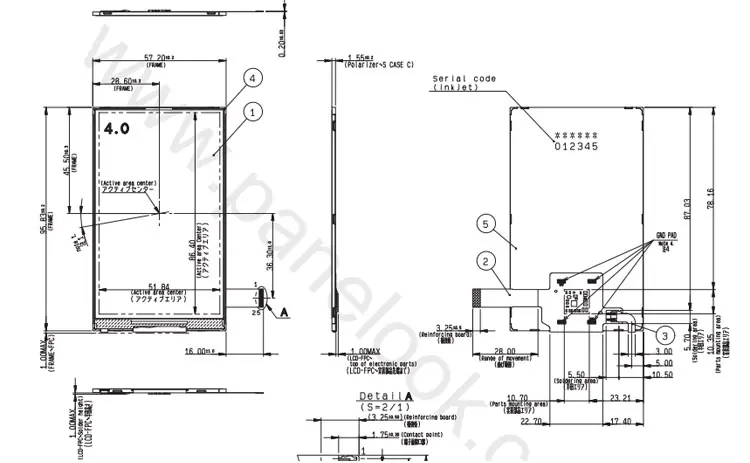

COM40H4P25ULC is a 4.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.COM40H4P25ULC supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 51.84(W)×86.4(H) mm, outline size of 57.2(W)×95.83(H)×2.75(D) mm, with surface treament of Hard coating (2H), net weight of 16.5g (Typ.). As a VA, Normally Black, Transflective LCM product, COM40H4P25ULC can provides 600 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 100 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM40H4P25ULC utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 25 pins FPC with power supply voltage of 3.3/1.8V (Typ.)(VDD/VCCIO). It's typical vertical frame rate (Fv) is 60Hz.

COM40H4P25ULC Application
For Handheld & PDA,Industrial.

COM40H4P25ULC  Specification

Part No. COM40H4P25ULC Size 4 inch
Resolution 480 × 800 Display Mode VA, Transflective
Panel Interface MIPI (2 data lanes) Touch Panel No

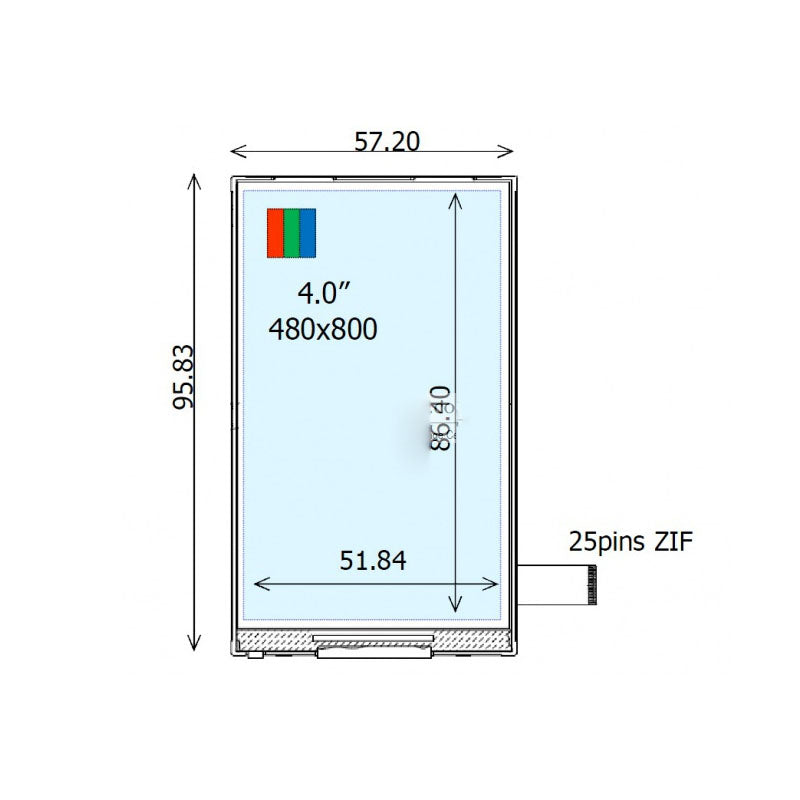

Outline Dimension 57.2(H) × 95.83(V) mm Active Area 51.84(H) × 86.4(V) mm
Viewing Angle 80/80/80/80 (Typ.) Brightness 600 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C
