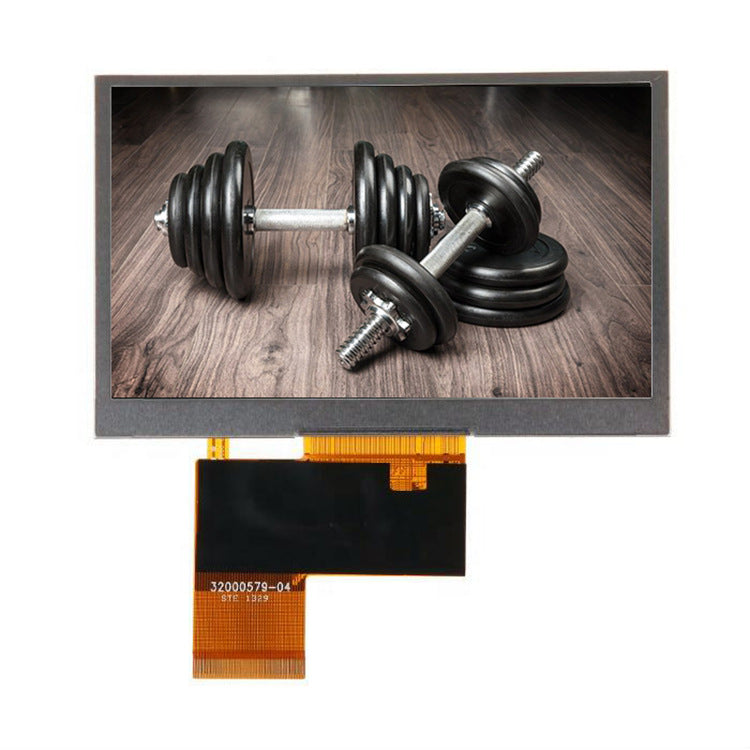

COM43H4N02XLC Ortustech 4.3 Inch Transflective Display Parallel RGB 480×272 Sunlight Readable TFT LCD Display

COM43H4N02XLC Ortustech 4.3 Inch Transflective Display Parallel RGB 480×272 Sunlight Readable TFT LCD Display

$65.30 USD
$72.56 USD $65.30 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM43H4N02XLC Ortustech 4.3 Inch Transflective Display 480×272 Parallel RGB Sunlight Readable TFT LCD Display Overview

COM43H4N02XLC is a 4.3 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, without touch screen.COM43H4N02XLC supports display 480(RGB)×272 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×3.1(D) mm, with surface treament of Hard coating (3H), net weight of 40.0g. As a TN, Normally White, Transflective LCM product, COM43H4N02XLC can provides 450 cd/m² display brightness 400:1 transimissive contrast ratio, 7.5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. COM43H4N02XLC utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

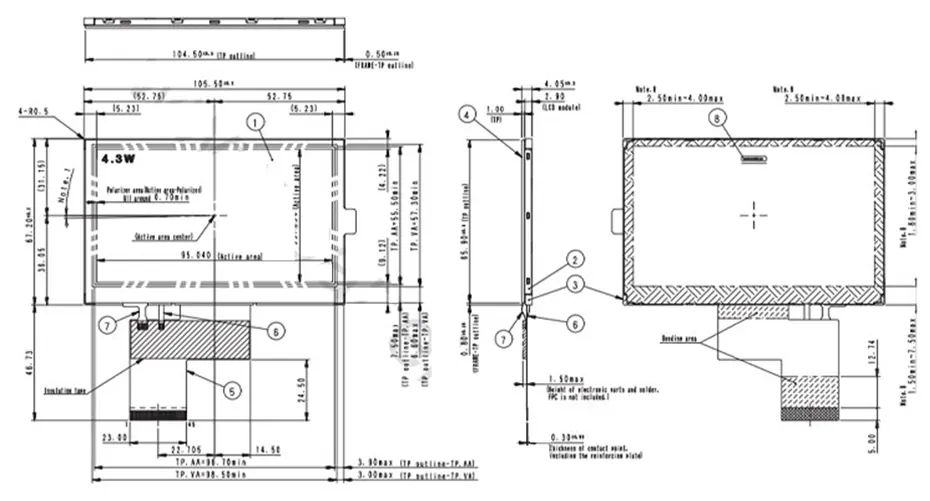

COM43H4N02XLC Ortustech 4.3 Inch Transflective Display 480×272 Parallel RGB Sunlight Readable TFT LCD Display

COM43H4N02XLC  Specification

Part No. COM43H4N02XLC Size 4.3 inch
Resolution 480 × 272 Display Mode TN, Transflective
Panel Interface Parallel RGB (1 ch, 8-bit) Touch Panel No
Outline Dimension 105.5 × 67.2 mm Active Area 95.04 × 53.856 mm
Viewing Angle 80/80/80/80 (Min.) Brightness 450 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
