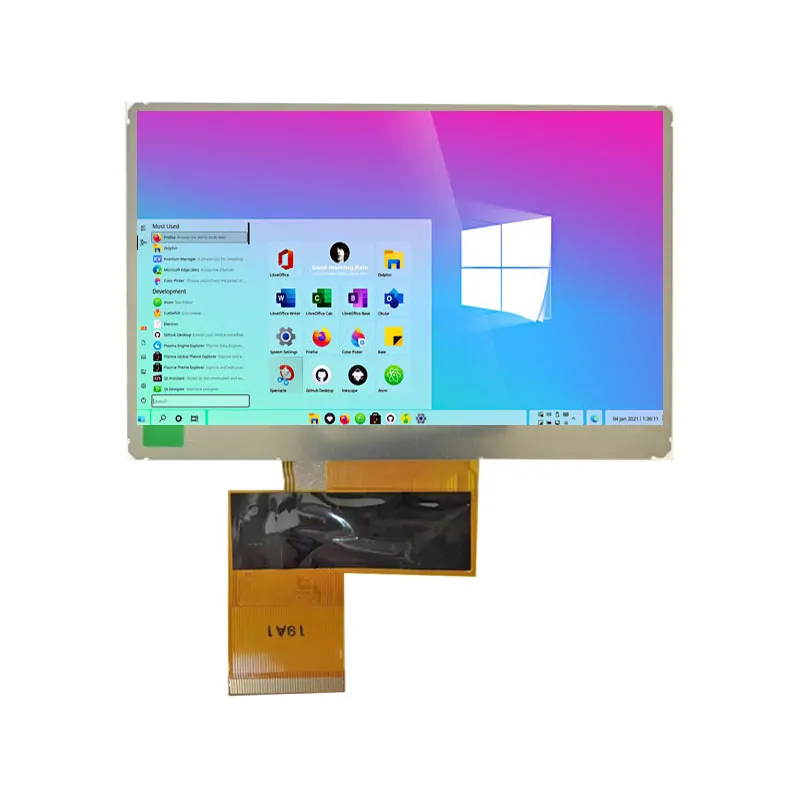

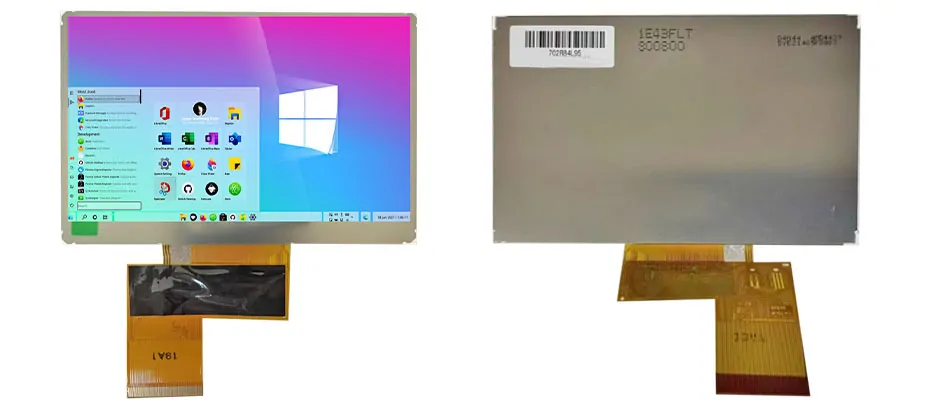

COM43H4N44ULC Ortustech 4.3 Inch TFT LCD Display 480×272 Transflective Wide Temperature LCD Panel

COM43H4N44ULC Ortustech 4.3 Inch TFT LCD Display 480×272 Transflective Wide Temperature LCD Panel

$80.05 USD
$80.05 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

COM43H4N44ULC Overview

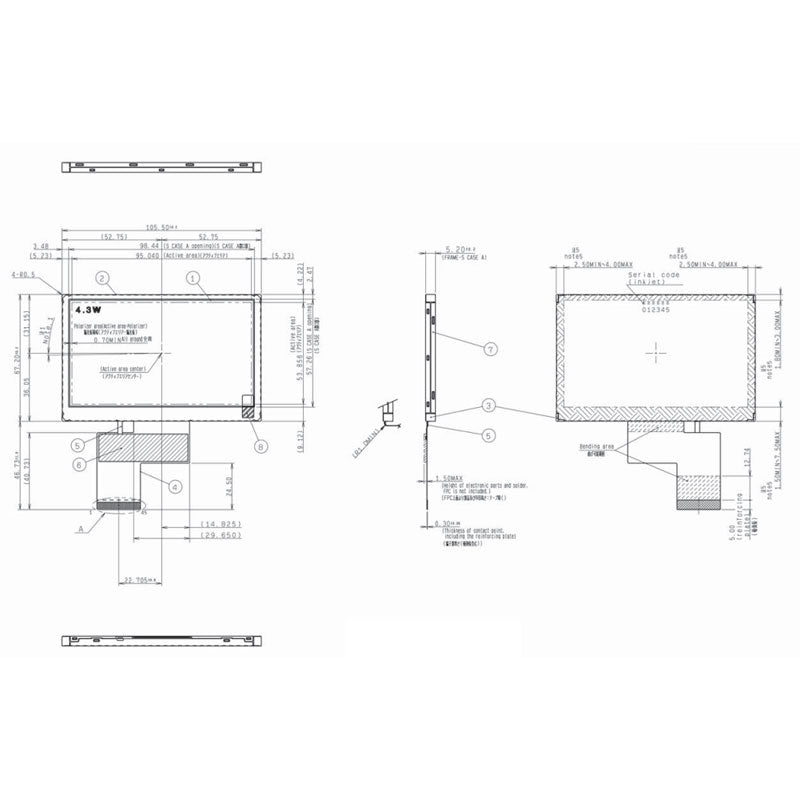

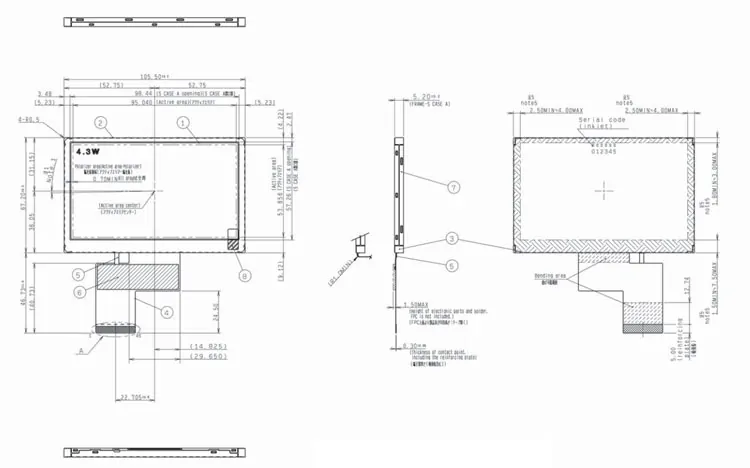

COM43H4N44ULC supports display 480×272(RGB) (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe.It features active area of 95.04(W)×53.856(H) mm, outline size of 105.5(W)×67.2(H)×5.4(D) mm, with surface treament of Hard coating (2H), net weight of 62.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM43H4N44ULC can provides 1100 cd/m² display brightness 600:1 transimissive contrast ratio, 2:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 4S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM43H4N44ULC utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

COM43H4N44ULC Application
For Handheld & PDA,Industrial.

COM43H4N44ULC  Specification

Part No. COM43H4N44ULC Size 4.3 inch
Resolution 480 × 272 Display Mode VA, Transflective
Panel Interface Parallel RGB (1 ch, 8-bit) Touch Panel No
Outline Dimension 105.5(H) × 67.2(V) mm Active Area 95.04(H) × 53.856(V) mm
Viewing Angle 80/80/80/80 (Min.) Brightness 1100 cd/m² (Typ.)
Operation Temp. -30 ~ 85°C Storage Temp. -40 ~ 90°C

More 4.3 Inch Transflective LCD Display For Reference
COM43H4N44ULC (480x272, TTL, 1200nits, -30~85°C, 105.5x67.2mm)
COM43H4P09UTC (480x272, TTL, 1100nits, -20~70°C, 105.5x67.2mm, 4w-RTP)
COM43H4P44ULC (480x272, TTL, 450nits, -20~70°C, 105.5x67.2mm)
COM43H4N91UTC (480x800, TTL, 320nits, -20~70°C, 63x105.3mm, 4w-RTP)
COM43H4N98UTC (480x800, MIPI, 280nits, -20~70°C, 71.2x117.64mm, CTP(Optical))
COM43H4N90ULC (480x800, TTL, 400nits, -20~70°C, 63x105.3mm)
COM43H4N66ULC (480x800, MIPI, 300nits, -20~70°C, 61.2x103mm)
