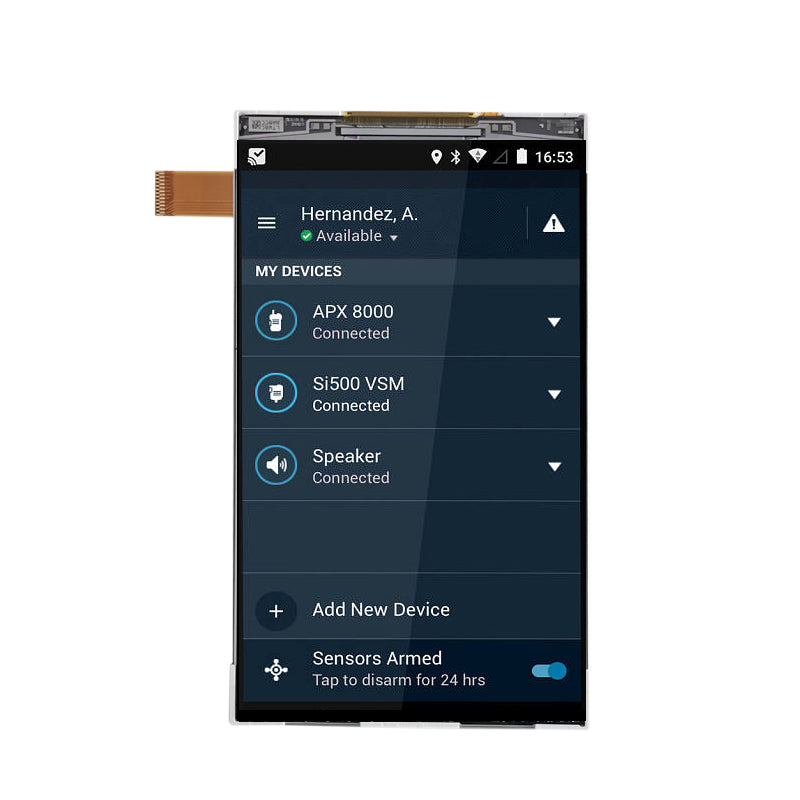

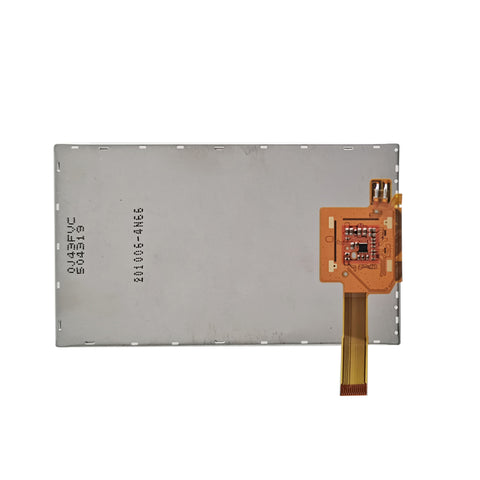

COM43H4N66ULC Ortustech 4.3 Inch TFT LCD Display 480×800 MIPI Transflective Sunlight Readable LCD Panel

COM43H4N66ULC Ortustech 4.3 Inch TFT LCD Display 480×800 MIPI Transflective Sunlight Readable LCD Panel

$73.04 USD
$83.00 USD $73.04 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

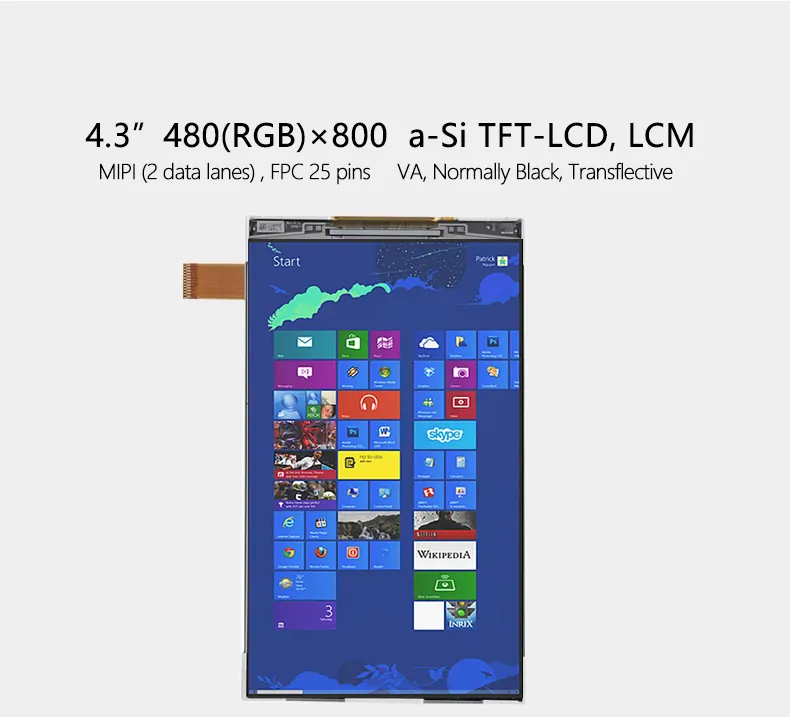

COM43H4N66ULC Overview
COM43H4N66ULC is a 4.3 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, without touch screen.COM43H4N66ULC supports display 480(RGB)×800 (WVGA) with aspect ratio of 3:5 (W:H), whose pixels are arranged in RGB Vertical Stripe.It features active area of 55.8(W)×93(H) mm, outline size of 61.2(W)×103(H)×2.95(D) mm, with surface treament of Hard coating (2H), net weight of 25.2g (Typ.). As a VA, Normally Black, Transflective LCM product, COM43H4N66ULC can provides 300 cd/m² display brightness 600:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. COM43H4N66ULC utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 25 pins FPC with power supply voltage of 3.3/1.8V (Typ.)(VDD/VCCIO). It's typical vertical frame rate (Fv) is 60Hz.

COM43H4N66ULC Application
For Handheld & PDA,Industrial.

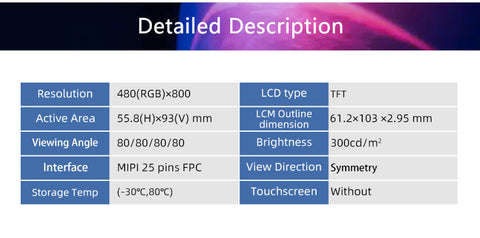

COM43H4N66ULC  Specification

Part No. COM43H4N66ULC Size 4.3 inch
Resolution 480 × 800 Display Mode VA, Normally Black, Transflective
Panel Interface MIPI (2 data lanes) Touch Panel Yes
Outline Dimension 61.2 × 103 mm Active Area 55.8 × 93 mm
Viewing Angle 80/80/80/80 (Typ.) Brightness 300 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

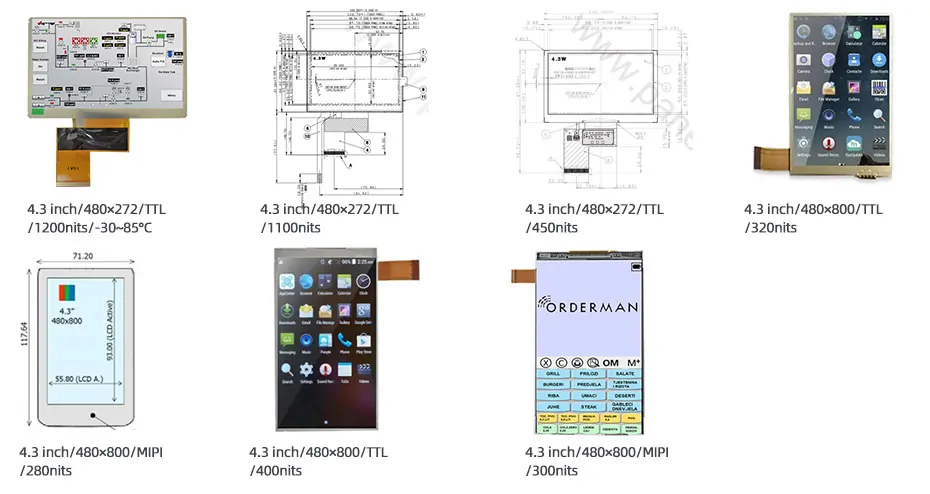

More 4.3 Inch Transflective LCD Display For Reference
COM43H4N44ULC (480x272, TTL, 1200nits, -30~85°C, 105.5x67.2mm)
COM43H4P09UTC (480x272, TTL, 1100nits, -20~70°C, 105.5x67.2mm, 4w-RTP)
COM43H4P44ULC (480x272, TTL, 450nits, -20~70°C, 105.5x67.2mm)
COM43H4N91UTC (480x800, TTL, 320nits, -20~70°C, 63x105.3mm, 4w-RTP)
COM43H4N98UTC (480x800, MIPI, 280nits, -20~70°C, 71.2x117.64mm, CTP(Optical))
COM43H4N90ULC (480x800, TTL, 400nits, -20~70°C, 63x105.3mm)
COM43H4N66ULC (480x800, MIPI, 300nits, -20~70°C, 61.2x103mm)
