COM48H4N27ULX Ortustech 4.8 Inch Transflective Display MIPI 720×1280 TFT LCD Display

COM48H4N27ULX Ortustech 4.8 Inch Transflective Display MIPI 720×1280 TFT LCD Display

$132.19 USD
$146.88 USD $132.19 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM48H4N27ULX Ortustech 4.8 Inch Transflective Display 720×1280 MIPI TFT LCD Display Overview

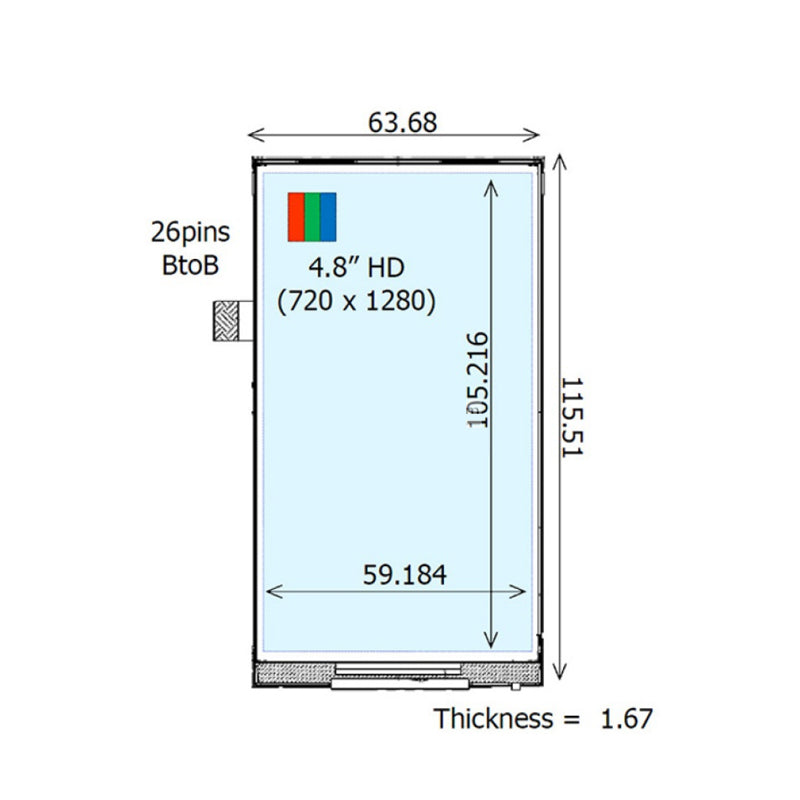

COM48H4N27ULX supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 309 PPI. As for mechanical detail, it features active area of 59.184(W)×105.216(H) mm, outline size of 63.68(W)×115.51(H)×2.47(D) mm, with surface treament of Hard coating (2H), net weight of 25.2g. As a VA, Normally Black, Transflective LCM product, COM48H4N27ULX can provides 300 cd/m² display brightness 700:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 9S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. COM48H4N27ULX utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 26 pins Connector with power supply voltage of 1.9/2.9V (Typ.)(IOVCC/VCC).

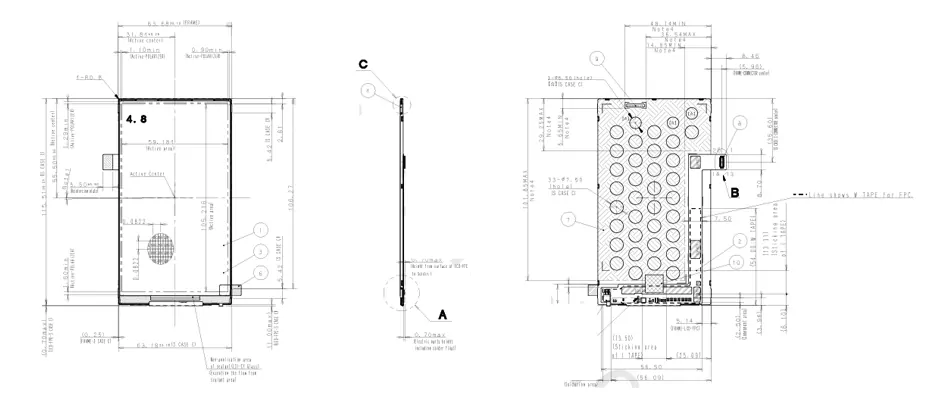

COM48H4N27ULX Ortustech 4.8 Inch Transflective Display 720×1280 MIPI TFT LCD Display

COM48H4N27ULX Specification

Part No. COM48H4N27ULX Size 4.8 inch
Resolution 720 × 1280 Display Mode Transflective
Panel Interface MIPI (4 data lanes) Touch Panel No
Outline Dimension 63.68 × 115.51 mm Active Area 59.184 × 105.216 mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 Brightness 300 cd/m²
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C



Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
