COM50H5M23XTX Ortustech 5 Inch Blanview Display Parallel RGB (1 ch, 8-bit)+SPI 480×272 TFT LCD Display With 4-wire Resistive Touch

COM50H5M23XTX Ortustech 5 Inch Blanview Display Parallel RGB (1 ch, 8-bit)+SPI 480×272 TFT LCD Display With 4-wire Resistive Touch

$123.73 USD
$152.76 USD $123.73 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM50H5M23XTX Ortustech 5 Inch Blanview Display 480×272 Parallel RGB (1 ch, 8-bit)+SPI TFT LCD Display With 4-wire Resistive Touch Overview

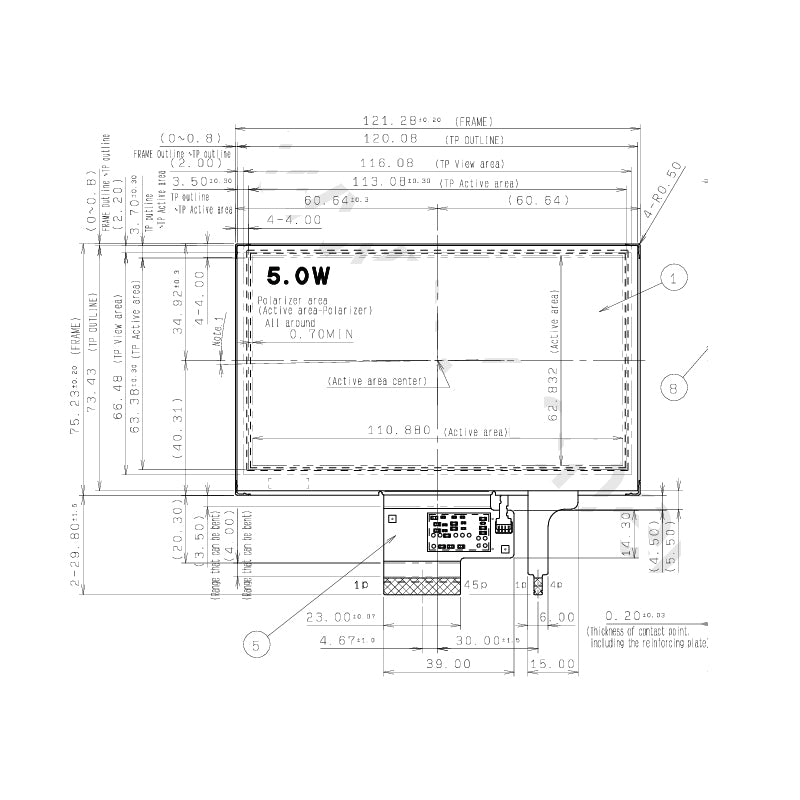

COM50H5M23XTX is a 5.0 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, touchscreen 4-wire Resistive Touch.COM50H5M23XTX supports display 480×272(RGB) (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 110.88(W)×62.832(H) mm, outline size of 121.28(W)×75.23(H)×4.38(D) mm, with surface treament of Clear, Hard coating (3H), net weight of 69.0g. As a TN, Normally White, Transflective LCM product, COM50H5M23XTX can provides 690 cd/m² display brightness 400:1 transimissive contrast ratio, 5:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. COM50H5M23XTX utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 1.8/3.3V (Typ.)(VDDIO/VCI). It's typical vertical frame rate (Fv) is 60Hz.

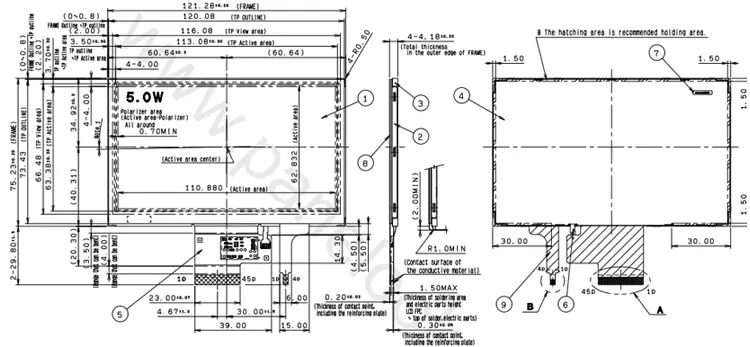

COM50H5M23XTX Ortustech 5 Inch Blanview Display 480×272 Parallel RGB (1 ch, 8-bit)+SPI TFT LCD Display With 4-wire Resistive Touch

COM50H5M23XTX  Specification

Part No. COM50H5M23XTX Size 5.0 inch
Resolution 480 × 272 Display Mode TN, Normally White
Panel Interface Parallel RGB (1 ch, 8-bit) + SPI Touch Panel No
Outline Dimension 121.28 × 75.23 mm Active Area 110.88 × 62.832 mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 Brightness 690 cd/m²
Operation Temp. -20 ~ 80°C Storage Temp. -20 ~ 80°C



Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
