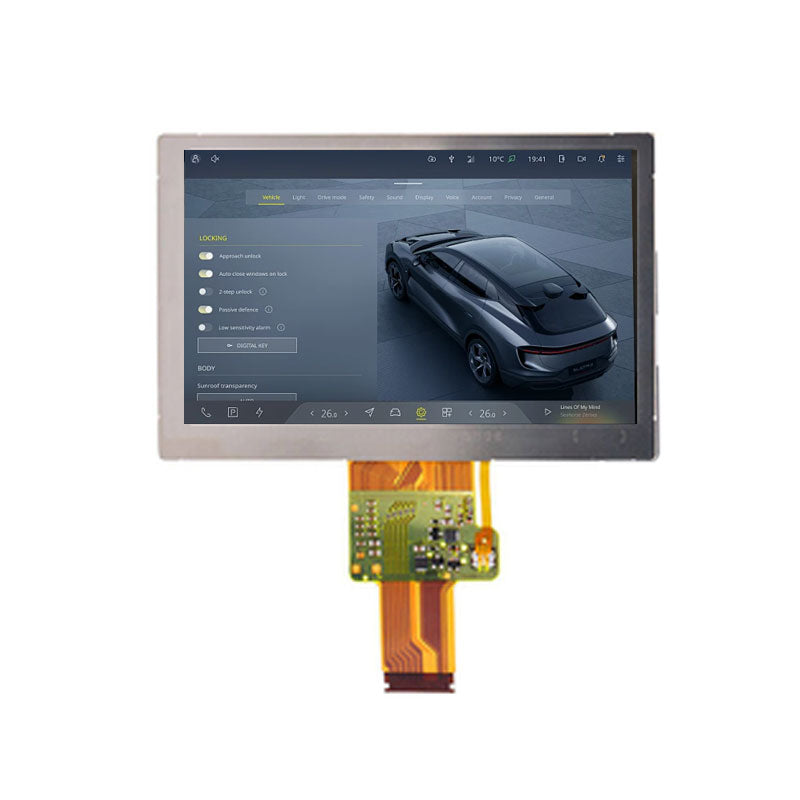

COM50H5N01ULC Ortustech 5 Inch Transflective Display LVDS 800×480 Wide Temperature TFT LCD Display

COM50H5N01ULC Ortustech 5 Inch Transflective Display LVDS 800×480 Wide Temperature TFT LCD Display

$87.76 USD
$97.52 USD $87.76 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02

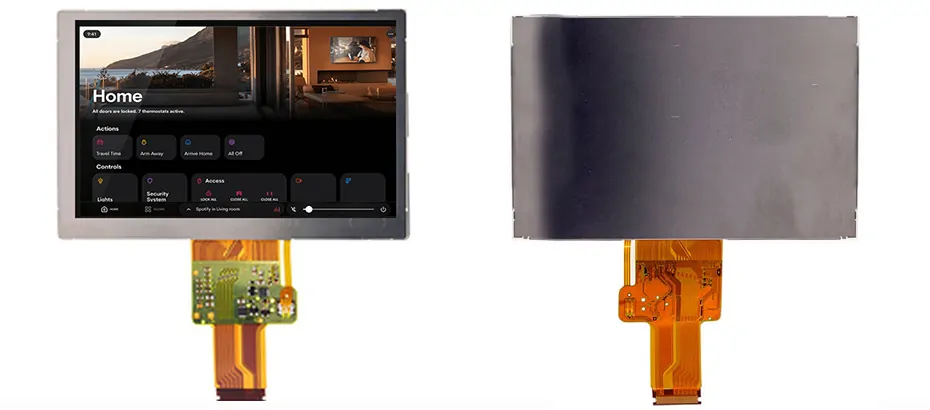

COM50H5N01ULC Ortustech 5 Inch Transflective Display 800×480 LVDS Wide Temperature TFT LCD Display Overview

COM50H5N01ULC is a 5.0 inch diagonal a-Si TFT-LCD display screen product from CASIO, with a built-in WLED backlight, without backlight driver, without touch screen.COM50H5N01ULC supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 109.2(W)×65.52(H) mm, outline size of 124(W)×80.82(H)×6.53(D) mm, viewing area size of 110.6(W)×66.92(H) mm, with surface treament of Hard coating (2H), net weight of 88.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM50H5N01ULC can provides 430 cd/m² display brightness 900:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 60/40 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. COM50H5N01ULC utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
COM50H5N01ULC Ortustech 5 Inch Transflective Display 800×480 LVDS Wide Temperature TFT LCD Display

COM50H5N01ULC  Specification

Part No. COM50H5N01ULC Size 5 inch
Resolution 800 × 480 (WVGA) Display Mode Transflective
Panel Interface LVDS (1 ch, 6/8-bit) Touch Panel No
Outline Dimension 124 × 80.82 mm (H×V) Active Area 109.2 × 65.52 mm (H×V)
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 Brightness 430 cd/m² (Typ.)
Operation Temp. -30 ~ 85°C Storage Temp. -40 ~ 95°C

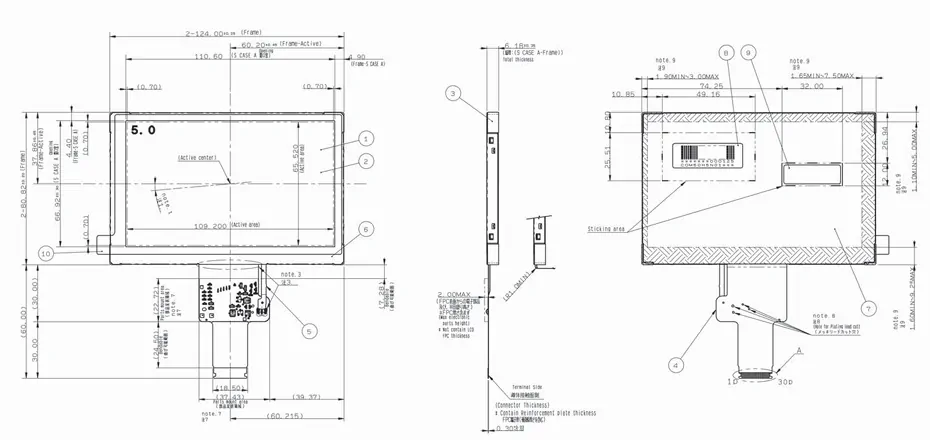

COM50H5N01ULC Drawing

COM50H5N01ULC Ortustech 5 Inch Transflective Display 800×480 LVDS Wide Temperature TFT LCD Display

Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
