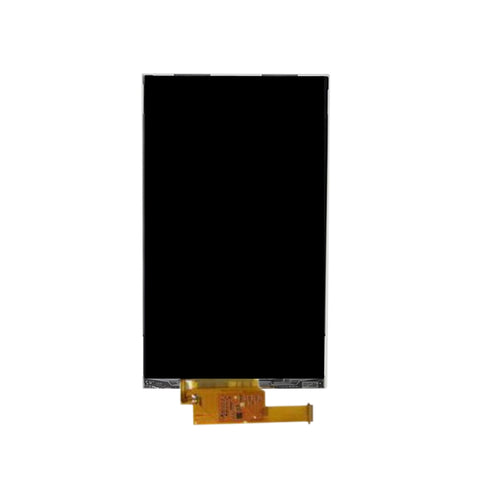

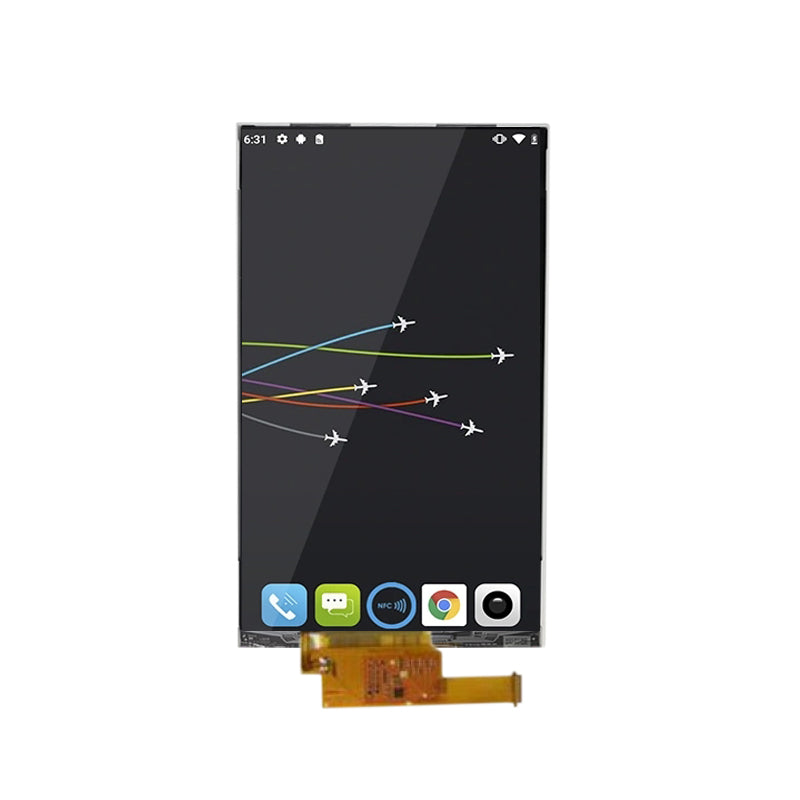

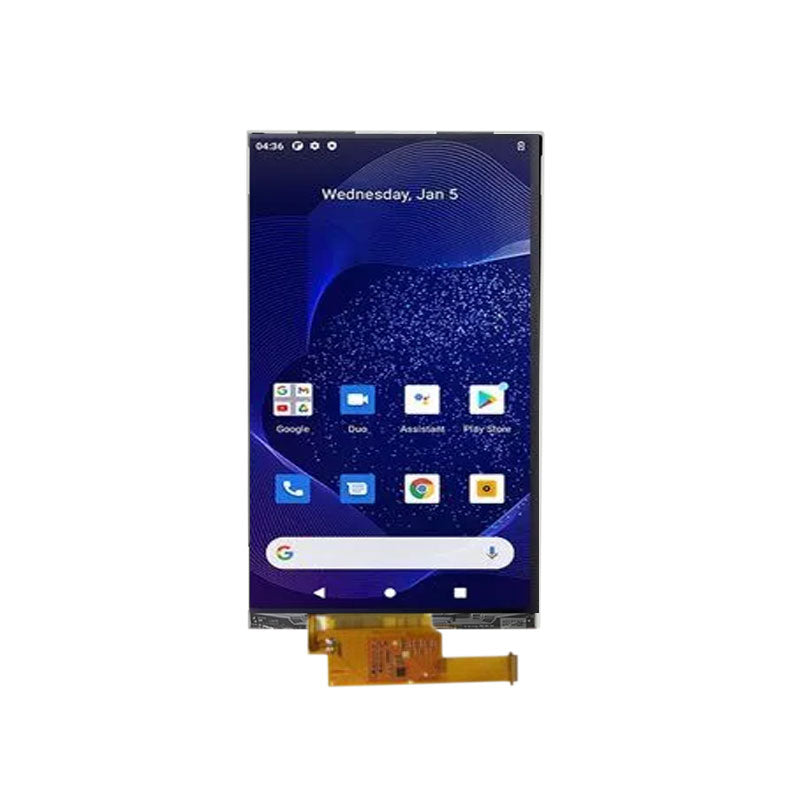

COM50H5N03ULC 5 inch 720x1280 MIPI LCD Panel Screen For Industrial Applications

COM50H5N03ULC 5 inch 720x1280 MIPI LCD Panel Screen For Industrial Applications

$99.36 USD
$103.00 USD $99.36 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM50H5N03ULC Ortustech 5 Inch Transflective Display 720×1280 MIPI TFT LCD Display Overview

COM50H5N03ULC supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 296 PPI. As for mechanical detail, it features active area of 61.776(W)×109.824(H) mm, outline size of 67.84(W)×120.22(H)×2.4(D) mm, with surface treament of Hard coating (2H), net weight of 34.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM50H5N03ULC can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of TBD ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 8S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM50H5N03ULC utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 27 pins FPC with power supply voltage of 1.9/2.9V (Typ.)(VCCIO/VDD). It's typical vertical frame rate (Fv) is 60Hz.

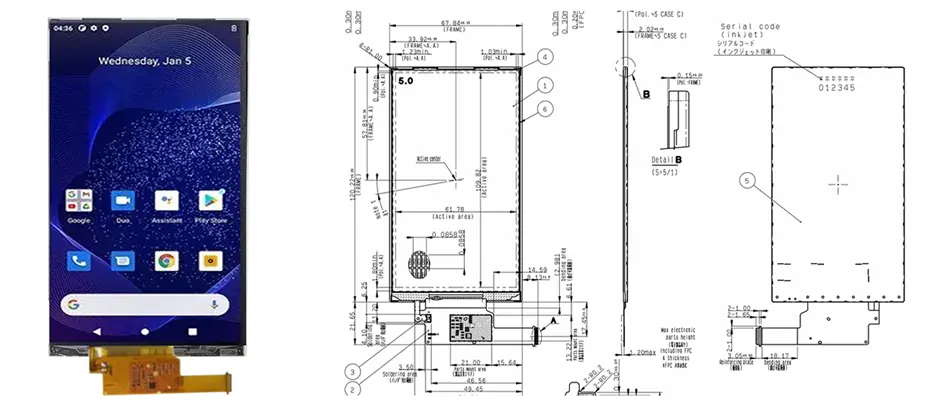

COM50H5N03ULC Ortustech 5 Inch Transflective Display 720×1280 MIPI TFT LCD Display

COM50H5N03ULC  Specification

Part No. COM50H5N03ULC Size 5 inch
Resolution 720 × 1280 Panel Interface MIPI
Display Mode Transflective Touch No
Outline Dimension 67.84 × 120.22 mm Active Area 61.776 × 109.824 mm
Viewing Angle L/R/U/D 80 / 80 / 80 / 80 Brightness 400 cd/m²
Operation Temperature -20 ~ 70°C Storage Temperature -30 ~ 80°C

Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
