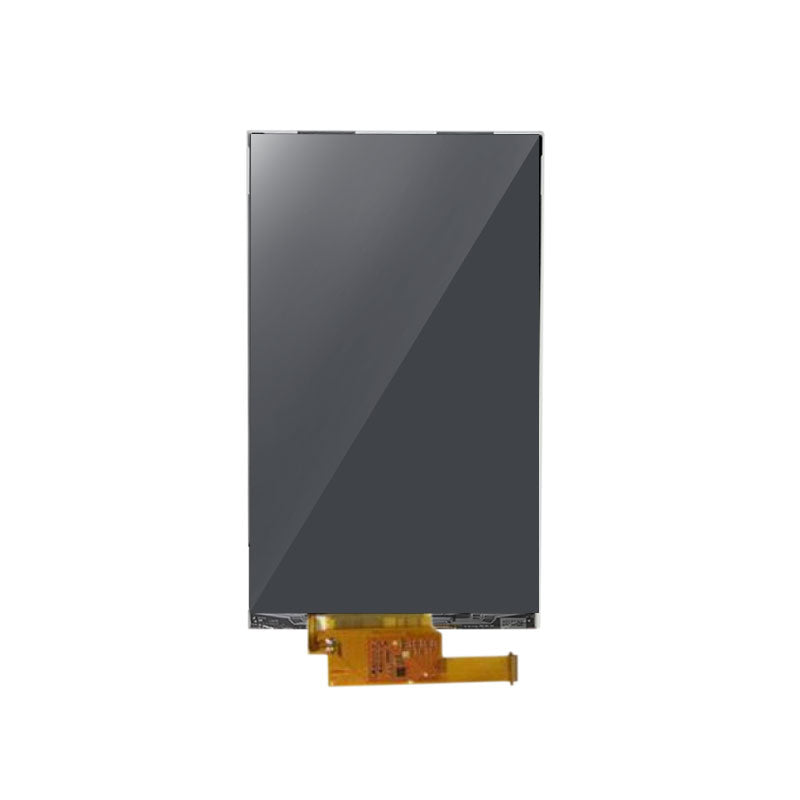

COM50H5N03ULC 5 inch 720x1280 MIPI LCD Panel Screen With Driver Board For Industrial Applications

COM50H5N03ULC Summary

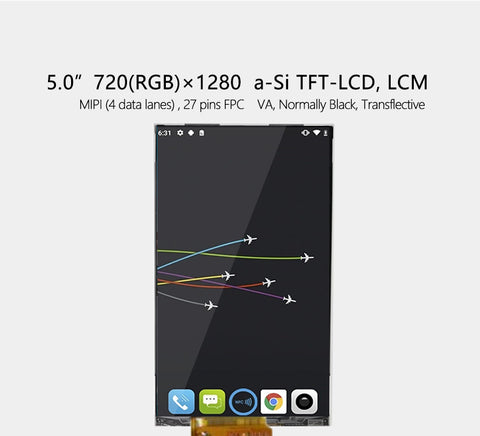

COM50H5N03ULC supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 296 PPI. As for mechanical detail, it features active area of 61.776(W)×109.824(H) mm, outline size of 67.84(W)×120.22(H)×2.4(D) mm, with surface treament of Hard coating (2H), net weight of 34.0g (Typ.). As a VA, Normally Black, Transflective LCM product, COM50H5N03ULC can provides 400 cd/m² display brightness 800:1 transimissive contrast ratio, 3:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of TBD ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 8S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM50H5N03ULC utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 27 pins FPC with power supply voltage of 1.9/2.9V (Typ.)(VCCIO/VDD). It's typical vertical frame rate (Fv) is 60Hz.
