COM50T5124XTC Ortustech 5 Inch Blanview Display Parallel RGB 320×240 TFT LCD Display With 4-wire Resistive Touch

COM50T5124XTC Ortustech 5 Inch Blanview Display Parallel RGB 320×240 TFT LCD Display With 4-wire Resistive Touch

$113.72 USD
$126.36 USD $113.72 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM50T5124XTC Ortustech 5 Inch Blanview Display 320×240 Parallel RGB TFT LCD Display With 4-wire Resistive Touch Overview

COM50T5124XTC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 100.8(W)×75.6(H) mm, outline size of 108.3(W)×87.55(H)×4.65(D) mm, with surface treament of Hard coating (3H), net weight of 80.0g (Typ.). As a TN, Normally White, Transmissive LCM product, COM50T5124XTC can provides 480 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM50T5124XTC utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

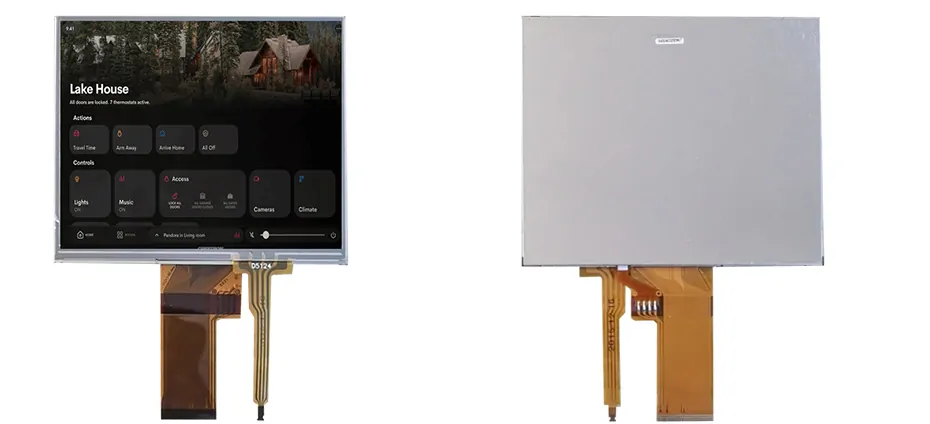

COM50T5124XTC Ortustech 5 Inch Blanview Display 320×240 Parallel RGB TFT LCD Display With 4-wire Resistive Touch

COM50T5124XTC  Specification

Part No. COM50T5124XTC Size 5 inch
Resolution 320 × 240 (QVGA) Display Mode Transmissive
Panel Interface Parallel RGB (1 ch, 6/8-bit) Touch Panel Yes
Outline Dimension 108.3 × 87.55 mm Active Area 100.8 × 75.6 mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 Brightness 480 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

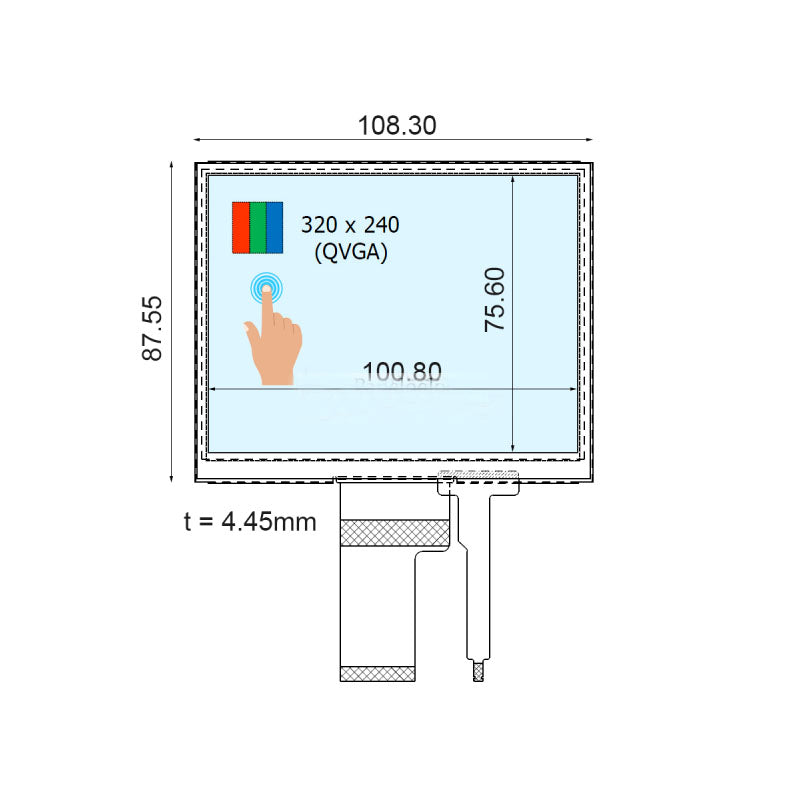

COM50T5124XTC Drawing

COM50T5124XTC Ortustech 5 Inch Blanview Display 320×240 Parallel RGB TFT LCD Display With 4-wire Resistive Touch

Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
