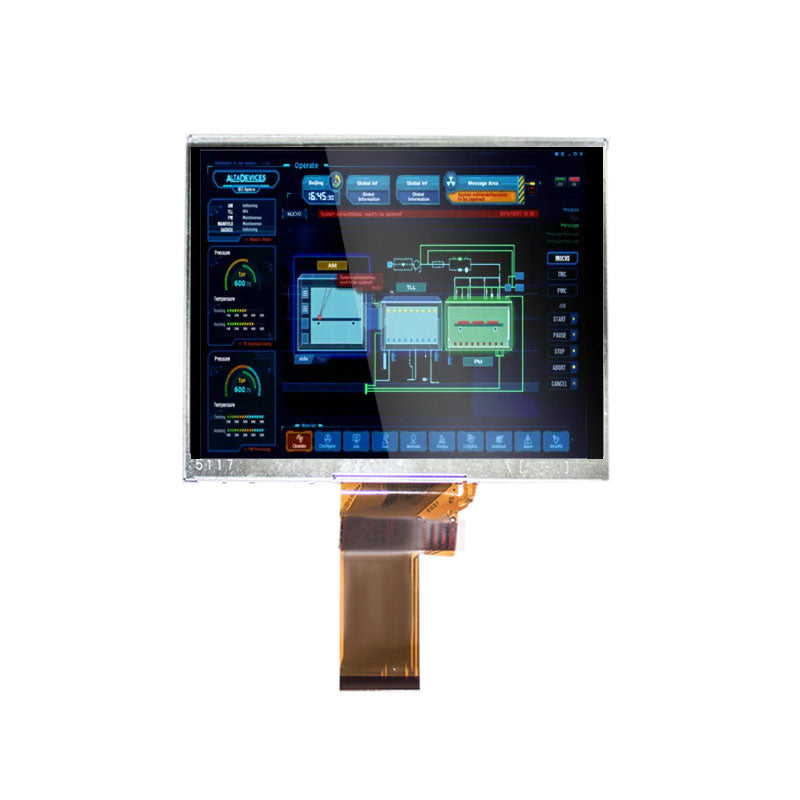

COM50H5M81XLC Ortustech 5 Inch Transflective Display 320×240 Parallel RGB TFT Transflective LCD Display

COM50H5M81XLC Ortustech 5 Inch Transflective Display 320×240 Parallel RGB TFT Transflective LCD Display

$105.98 USD
$117.76 USD $105.98 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02

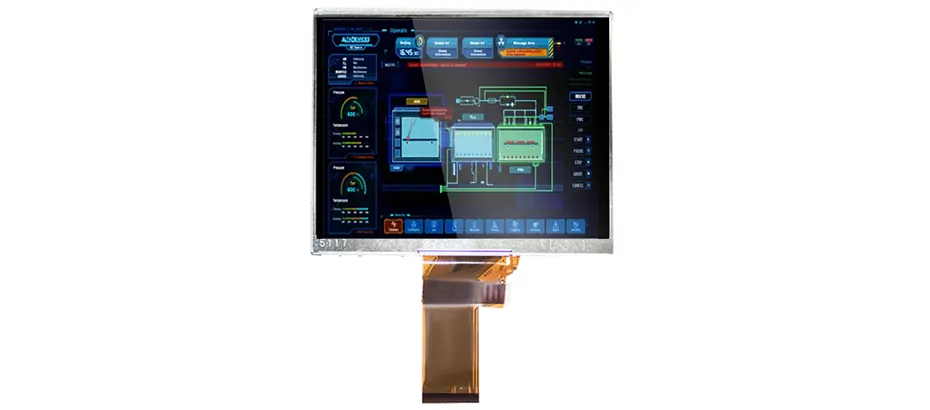

COM50H5M81XLC Ortustech 5 Inch Transflective Display 320×240 Parallel RGB TFT LCD Display Overview

COM50H5M81XLC is a 5.0 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, without touch screen. COM50H5M81XLC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 100.8(W)×75.6(H) mm, outline size of 108.3(W)×87.55(H)×3.2(D) mm, viewing area size of 104.1(W)×78.9(H) mm, with surface treament of Hard coating (3H), net weight of 60.5g (Typ.). As a TN, Normally White, Transflective LCM product, COM50H5M81XLC can provides 450 cd/m² display brightness 400:1 transimissive contrast ratio, 12:1 (Typ.) reflective contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM50H5M81XLC utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 67 pins FPC with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
COM50H5M81XLC Ortustech 5 Inch Transflective Display 320×240 Parallel RGB TFT LCD Display

COM50H5M81XLC  Specification

Part No. COM50H5M81XLC Size 5 inch
Resolution 320 × 240 Display Mode TN, Transflective
Panel Interface Parallel RGB (1 ch, 8-bit) Touch Panel No
Outline Dimension 108.3 × 87.55 mm (H×V) Active Area 100.8 × 75.6 mm (H×V)
Viewing Angle 80/80/80/80 (Typ.) Brightness 450 cd/m² (Typ.)
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

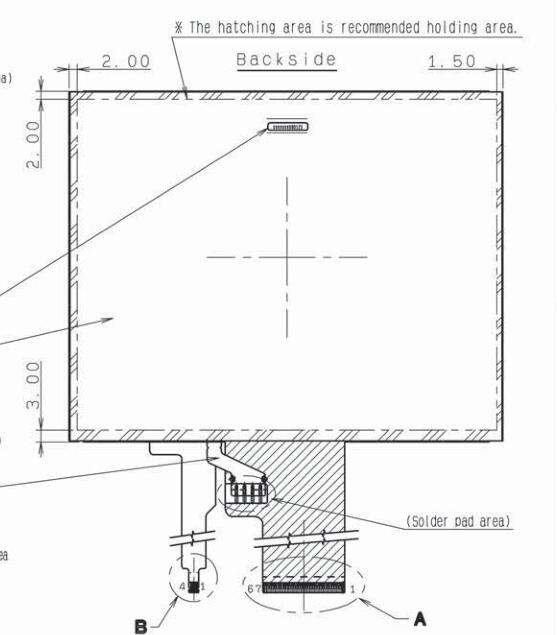

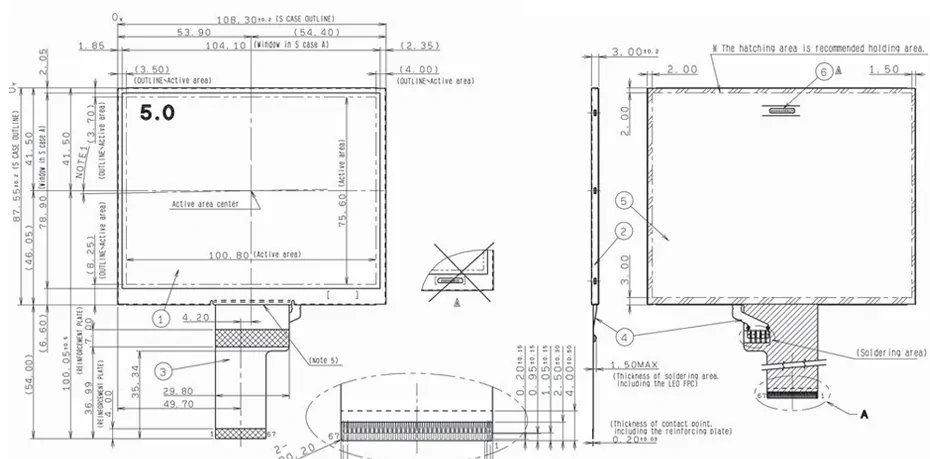

COM50H5M81XLC Drawing

COM50H5M81XLC Ortustech 5 Inch Transflective Display 320×240 Parallel RGB TFT LCD Display

Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
