COM57H5N27XLC 5.7 Inch Transflective Display Parallel RGB 640x480 550nits Sunlight Readable LCD Display For Handheld PDA

COM57H5N27XLC 5.7 Inch Transflective Display Parallel RGB 640x480 550nits Sunlight Readable LCD Display For Handheld PDA

$118.69 USD
$131.88 USD $118.69 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


5.7 Inch Transflective LCD Display Overview
COM57H5N27XLC supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 115.2(W)×86.4(H) mm, outline size of 130.32(W)×101.2(H)×3.83(D) mm, viewing area size of 118.7(W)×89.9(H) mm, with surface treament of Hard coating (3H), net weight of 81.0g (Typ.). As a TN, Normally White, Transflective LCM product, COM57H5N27XLC can provides 550 cd/m² display brightness 600:1 transimissive contrast ratio, 5:1 (Typ.) reflective contrast ratio, 80/80/60/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 100 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 9S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM57H5N27XLC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3/12.0/21.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

COM57H5N27XLC  Specification

Part No. COM57H5N27XLC Size 5.7 inch
Resolution 640 × 480 (VGA) Display Mode Transflective
Panel Interface Parallel RGB (1 ch, 6-bit) Touch Panel No

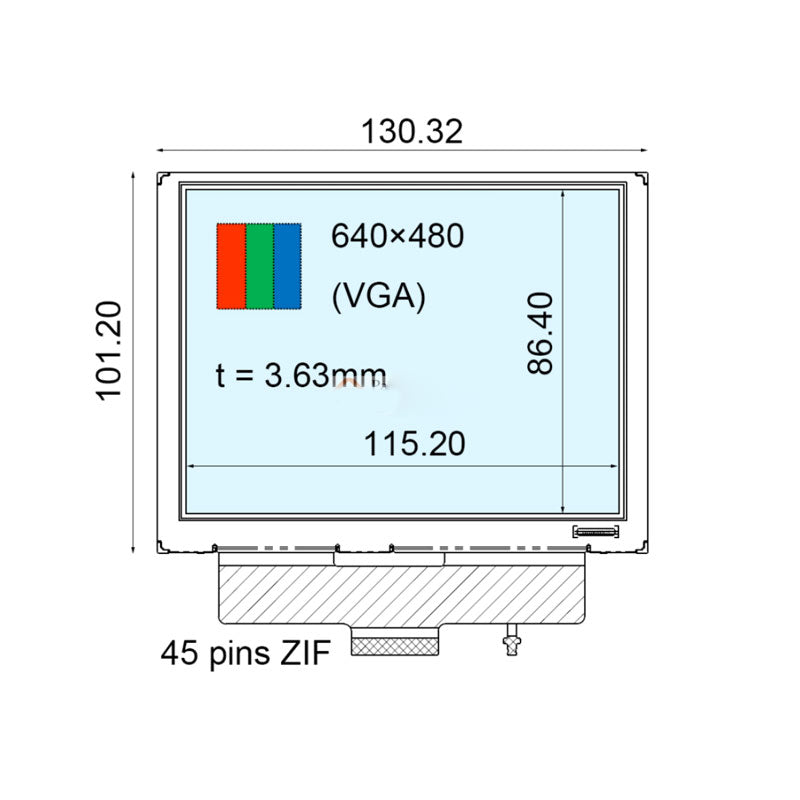

Outline Dimension 130.32 × 101.2 mm Active Area 115.2 × 86.4 mm
Viewing Angle (L/R/U/D) 80 / 80 / 60 / 65 Brightness 550 cd/m²
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

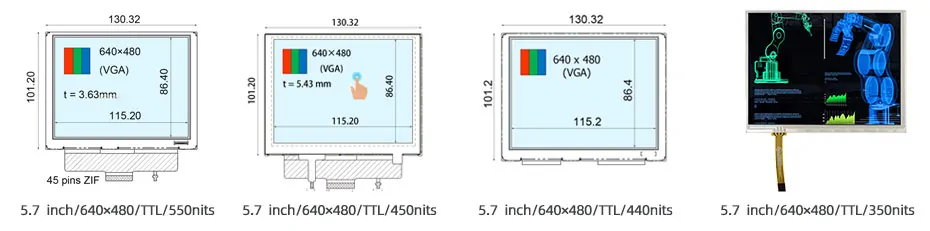

More 5.7 Inch Transflective LCD Display For Reference
COM57H5N27XLC (640x480, TTL, 550nits, -20~70°C, 130.32x101.2mm)
COM57H5N28XTC (640x480, TTL, 450nits, -20~70°C, 130.32x101.2mm, 4w-RTP)
COM57H5N32XSC (640x480, TTL, 440nits, -20~70°C, 130.32x101.2mm)
COM57H5N33XRC (640x480, TTL, 350nits, -20~70°C, 4w-RTP)
