COM57T5M15GLC Ortustech 5.7 Inch Blanview Display Parallel RGB 320×240 High Brightness TFT LCD Display

COM57T5M15GLC Ortustech 5.7 Inch Blanview Display Parallel RGB 320×240 High Brightness TFT LCD Display

$207.00 USD
$230.00 USD $207.00 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM57T5M15GLC Ortustech 5.7 Inch Blanview Display 320×240 Parallel RGB High Brightness TFT LCD Display Overview

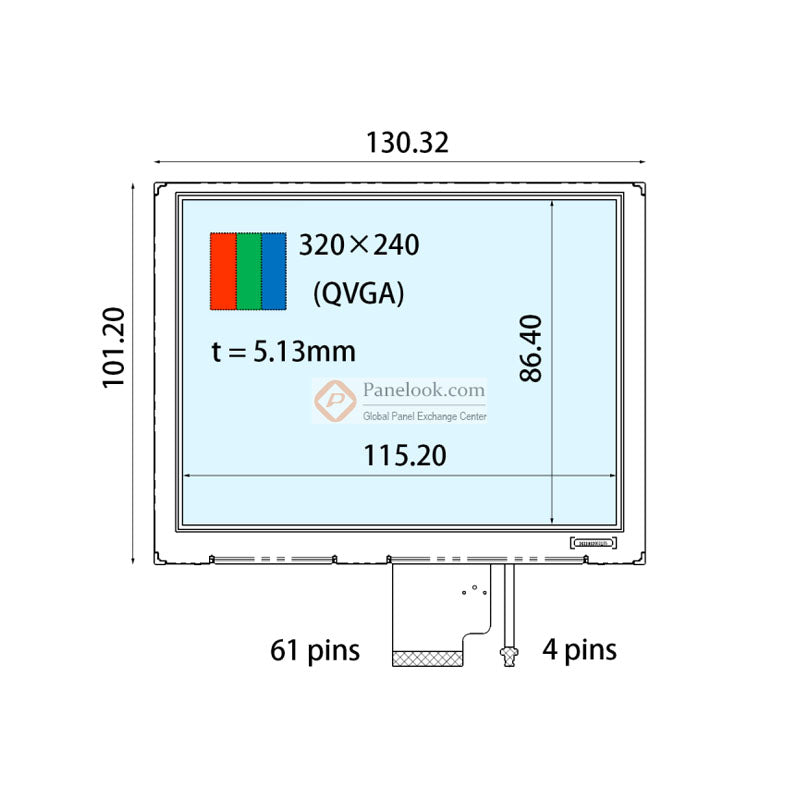

COM57T5M15GLC supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 115.2(W)×86.4(H) mm, outline size of 130.32(W)×101.2(H)×5.33(D) mm, viewing area size of 118.7(W)×89.9(H) mm, with surface treament of Hard coating (3H), net weight of 105.7g (Typ.). As a TN, Normally White, Transmissive LCM product, COM57T5M15GLC can provides 600 cd/m² display brightness 200:1 transimissive contrast ratio, 40/40/15/70 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, external backlight driver is additionally needed. COM57T5M15GLC utilizes Parallel RGB (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 61 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

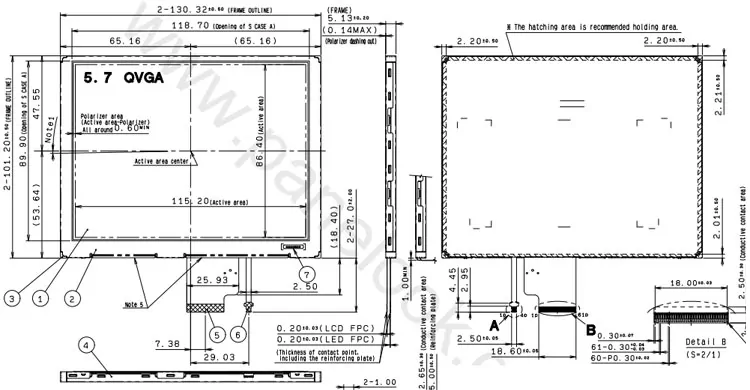

COM57T5M15GLC Ortustech 5.7 Inch Blanview Display 320×240 Parallel RGB High Brightness TFT LCD Display

COM57T5M15GLC  Specification

Part No. COM57T5M15GLC Size 5.7 inch
Resolution 320 × 240 Display Mode Transmissive
Panel Interface Parallel RGB (1 ch, 6/8-bit) Touch Panel No
Outline Dimension 130.32 × 101.2 mm Active Area 115.2 × 86.4 mm
Viewing Angle 40/40/15/70 Brightness 600 cd/m²
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
