COM57T5M94ZSC Ortustech 5.7 Inch Blanview Display 640×480 Parallel RGB Transmissive TFT LCD Display

COM57T5M94ZSC Ortustech 5.7 Inch Blanview Display 640×480 Parallel RGB Transmissive TFT LCD Display

$140.20 USD
$155.78 USD $140.20 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM57T5M94ZSC Ortustech 5.7 Inch Blanview Display 640×480 Parallel RGB TFT LCD Display Overview

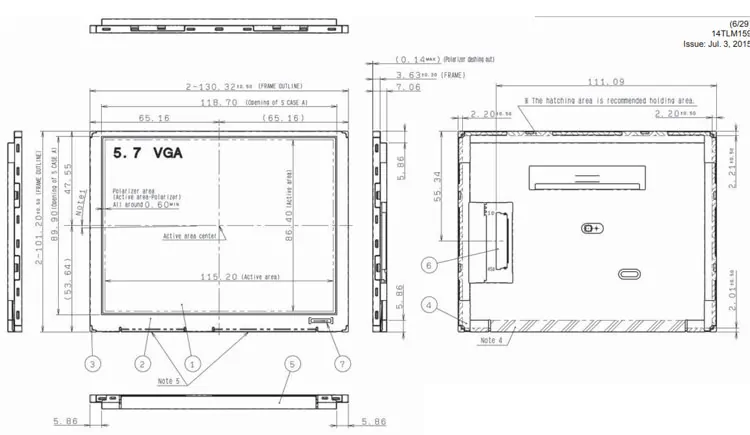

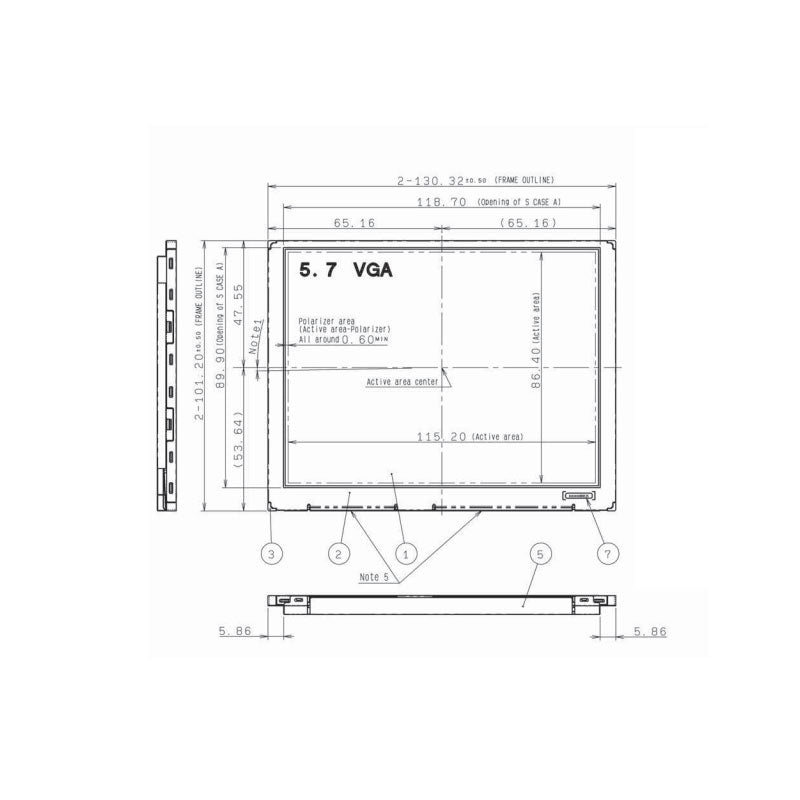

COM57T5M94ZSC supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 115.2(W)×86.4(H) mm, outline size of 130.32(W)×101.2(H)×7.56(D) mm, viewing area size of 118.7(W)×89.9(H) mm, with surface treament of Hard coating (3H), net weight of 122g (Typ.). As a TN, Normally White, Transmissive LCM product, COM57T5M94ZSC can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/60/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. COM57T5M94ZSC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 45 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
COM57T5M94ZSC Ortustech 5.7 Inch Blanview Display 640×480 Parallel RGB TFT LCD Display

COM57T5M94ZSC  Specification

Part No. COM57T5M94ZSC Size 5.7 inch
Resolution 640 × 480 (VGA) Display Mode Transmissive
Panel Interface Parallel RGB (1 ch, 6-bit) Touch Panel No
Outline Dimension 130.32 × 101.2 mm Active Area 115.2 × 86.4 mm
Viewing Angle (L/R/U/D) 80 / 80 / 60 / 65 Brightness 400 cd/m²
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C



Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
