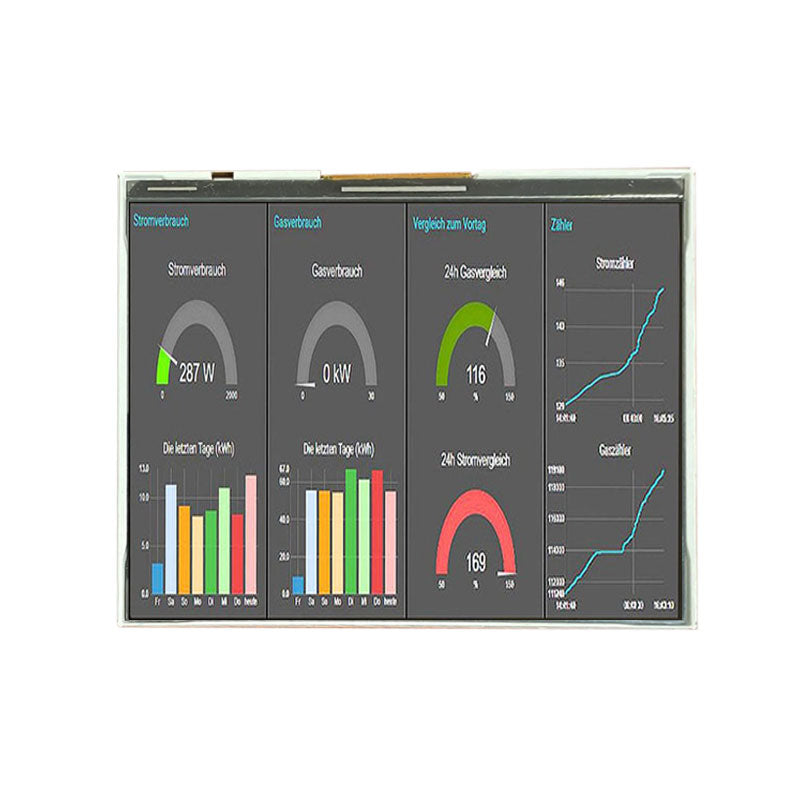

COM57T5N07RSS Ortustech 5.7 Inch Blanview Display TTL 640×480 High Brightness TFT LCD Display

COM57T5N07RSS Ortustech 5.7 Inch Blanview Display TTL 640×480 High Brightness TFT LCD Display

$226.55 USD
$251.73 USD $226.55 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02

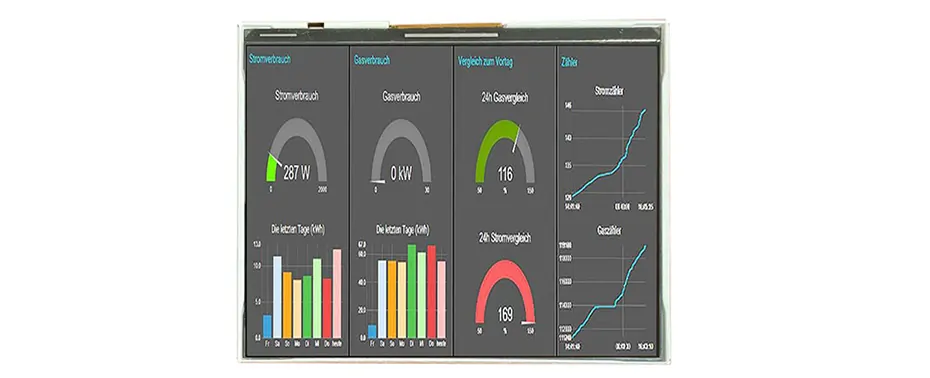

COM57T5N07RSS Ortustech 5.7 Inch Blanview Display 640×480 TTL High Brightness TFT LCD Display Overview

COM57T5N07RSS is a 5.7 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen. COM57T5N07RSS supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 115.2(W)×86.4(H) mm, outline size of 127.2(W)×100.4(H)×6(D) mm, viewing area size of 117.2(W)×88.4(H) mm, with surface treament of Clear, Hard coating (3H), net weight of 102g (Typ.). As a IPS-FFS, Normally Black, Transmissive LCM product, COM57T5N07RSS can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 60/40 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted 5S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM57T5N07RSS utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
COM57T5N07RSS Ortustech 5.7 Inch Blanview Display 640×480 TTL High Brightness TFT LCD Display

COM57T5N07RSS  Specification

Part No. COM57T5N07RSS Size 5.7 inch
Resolution 640 × 480 (VGA) Display Mode Transmissive
Panel Interface TTL (1 ch, 6-bit) Touch Panel No
Outline Dimension 127.2 × 100.4 mm Active Area 115.2 × 86.4 mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 Brightness 500 cd/m²
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C

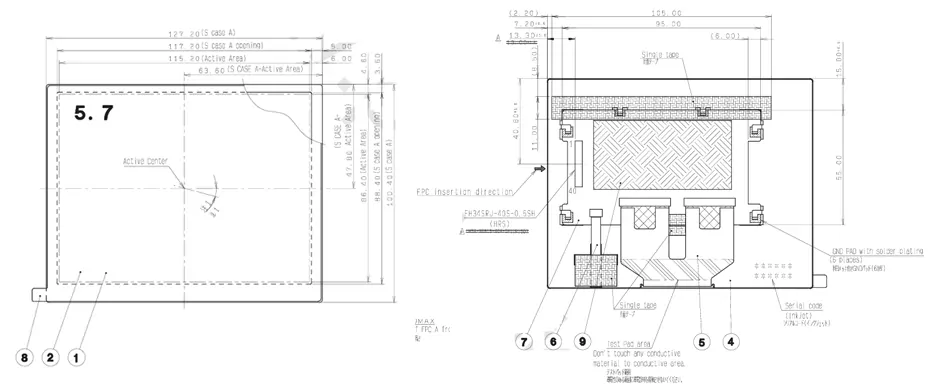

COM57T5N07RSS Drawing

COM57T5N07RSS Ortustech 5.7 Inch Blanview Display 640×480 TTL High Brightness TFT LCD Display

Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
