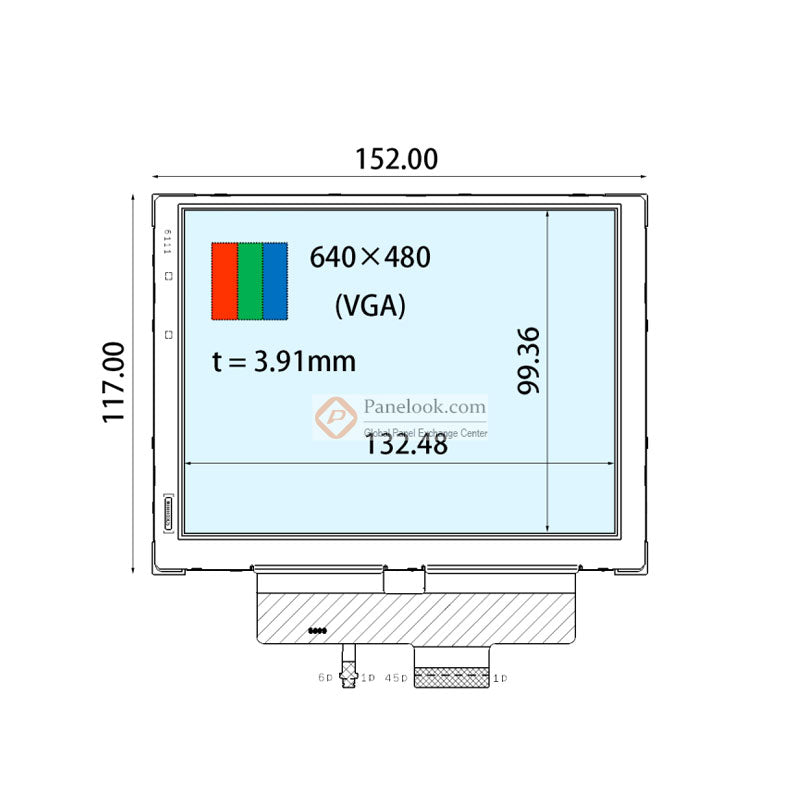

COM65T6M14KLC Ortustech 6.5 Inch Blanview Display Parallel RGB 640×480 TFT LCD Display

COM65T6M14KLC Ortustech 6.5 Inch Blanview Display Parallel RGB 640×480 TFT LCD Display

$147.54 USD
$182.16 USD $147.54 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM65T6M14KLC Ortustech 6.5 Inch Blanview Display 640×480 Parallel RGB TFT LCD Display Overview

COM65T6M14KLC is a 6.5 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without backlight driver, without touch screen. COM65T6M14KLC supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 132.48(W)×99.36(H) mm, outline size of 152(W)×117(H)×4.41(D) mm, viewing area size of 136.08(W)×102.96(H) mm, with surface treament of Hard coating (3H), net weight of 121g (Typ.). As a TN, Normally White, Transmissive LCM product, COM65T6M14KLC can provides 400 cd/m² display brightness 400:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle , and response time of 40/60 (Max.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 9S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM65T6M14KLC utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 45 pins FPC with power supply voltage of 3.3/12.0/21.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

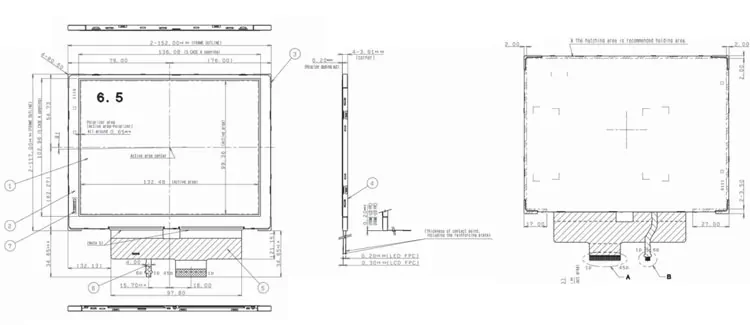

COM65T6M14KLC Ortustech 6.5 Inch Blanview Display 640×480 Parallel RGB TFT LCD Display

COM65T6M14KLC  Specification

Part No. COM65T6M14KLC Size 6.5 inch
Resolution 640 × 480 Display Mode Transmissive
Panel Interface Parallel RGB (1 ch, 6-bit) Touch Panel No
Outline Dimension 152 × 117 mm Active Area 132.48 × 99.36 mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 Brightness 400 cd/m²
Operation Temp. -20 ~ 70°C Storage Temp. -30 ~ 80°C



Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
