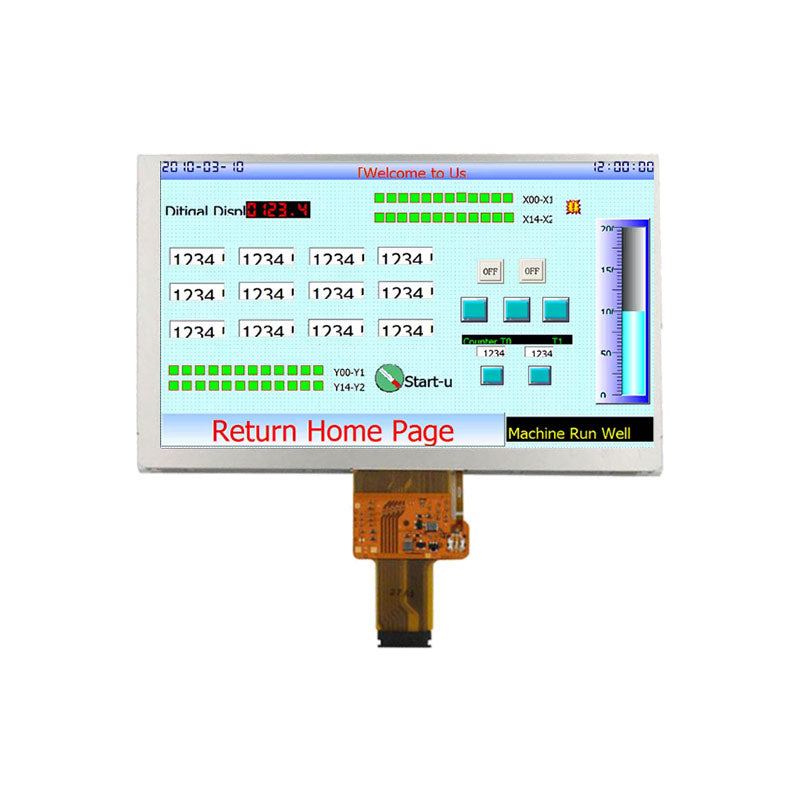

COM70H7M58UTC 7 Inch Transflective Display LVDS 800x480 Sunlight Readable LCD Display With Capacitive Touch

COM70H7M58UTC 7 Inch Transflective Display LVDS 800x480 Sunlight Readable LCD Display With Capacitive Touch

$80.43 USD
$89.37 USD $80.43 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

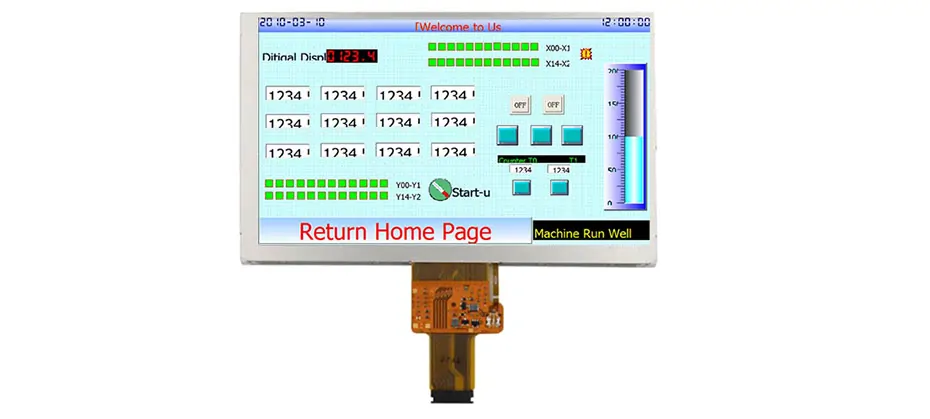

7 Inch Transflective LCD Display Overview
COM70H7M58UTC supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 152.4(W)×91.44(H) mm. As a VA, Normally Black, Transflective LCM product, COM70H7M58UTC can provides 370 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 50 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed. COM70H7M58UTC utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

COM70H7M58UTC  Specification

Part No. COM70H7M58UTC Size 7.0 inch
Resolution 800 × 480 (WVGA) Display Mode Transflective
Panel Interface LVDS (1 ch, 6/8-bit) Touch Panel No
Outline Dimension / Active Area 152.4 × 91.44 mm
Viewing Angle (L/R/U/D) 80 / 80 / 80 / 80 Brightness 370 cd/m² (Typ.)
Operation Temp. / Storage Temp. /

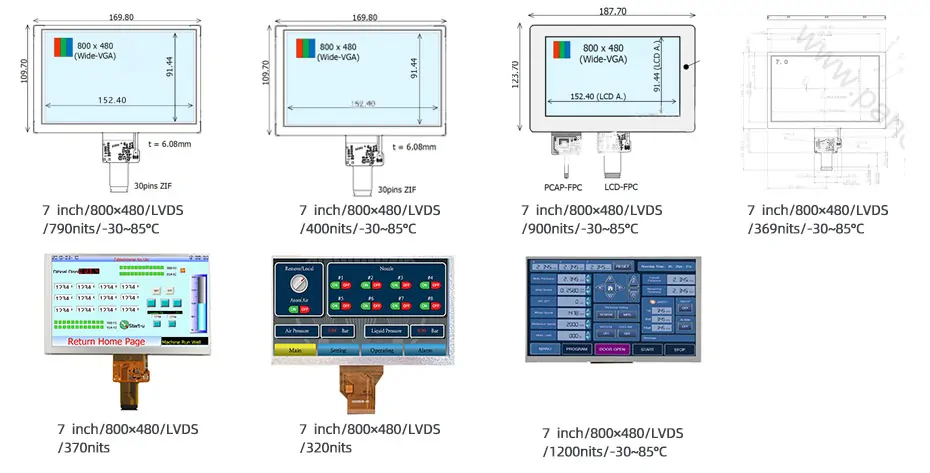

More 7 Inch Transflective LCD Display For Reference
COM70H7M24ULC (800x480, LVDS, 790nits, -30~85°C, 169.8x109.7mm)
COM70H7M40ULC (800x480, LVDS,400nits, -30~85°C, 169.8x109.7mm)
COM70H7M44UTC (800x480, LVDS, 900nits, -30~80°C, 187.7x123.7mm, CTP(Optical))
COM70H7M53FLC (800x480, LVDS,369nits, -30~85°C, 169.8x109.7mm)
COM70H7M58UTC (800x480, LVDS, 370nits, CTP(Air))
COM70H7M60UTC (800x480, LVDS, 320nits, 4w-RTP)
COM70H7M40ULN (800x480, LVDS, 1200nits, -30~85°C, 169.8x109.7mm)
