COM84T8M02SSS Ortustech 8.4 Inch Blanview Display High Brightness LVDS 1024×768 Wide Temperature TFT LCD Display

COM84T8M02SSS Ortustech 8.4 Inch Blanview Display High Brightness LVDS 1024×768 Wide Temperature TFT LCD Display

$241.55 USD
$298.21 USD $241.55 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

TOPPAN ORTUSTECH blanview TRANSFLECTIVE DISPLAYS-1
Ortustech advantage_02
COM84T8M02SSS Ortustech 8.4 Inch Blanview Display High Brightness 1024×768 LVDS Wide Temperature TFT LCD Display Overview

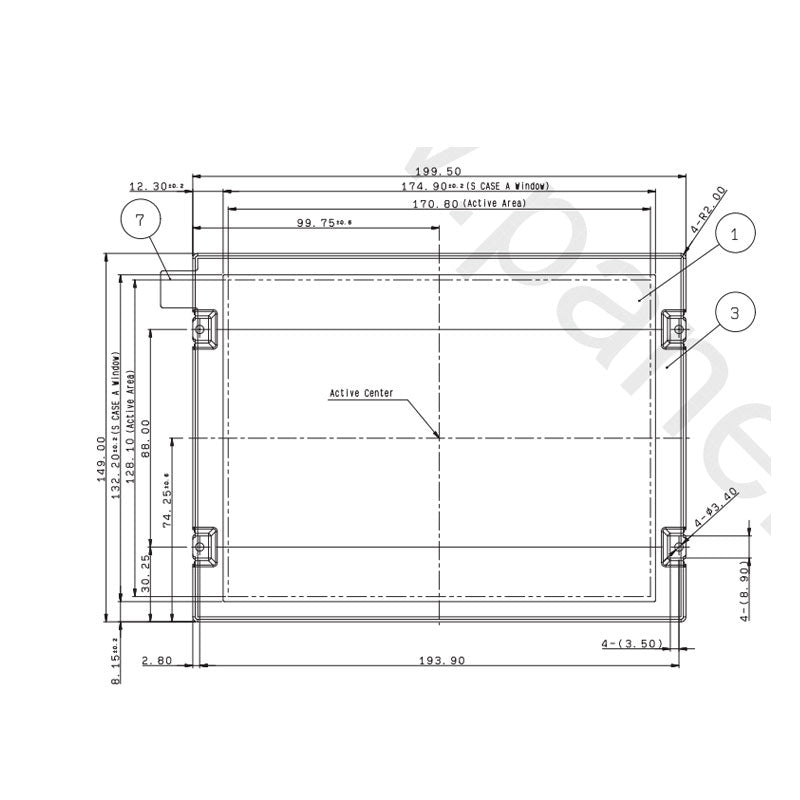

COM84T8M02SSS is a 8.4 inch diagonal a-Si TFT-LCD display screen product from Ortustech, with a built-in WLED backlight, without touch screen.COM84T8M02SSS supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.8(W)×128.1(H) mm, outline size of 199.5(W)×149(H)×10.2(D) mm, viewing area size of 174.9(W)×132.2(H) mm, net weight of 310g (Typ.). As a FFS, Normally Black, Transmissive LCM product, COM84T8M02SSS can provides 600 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 40 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors, also with performance of color gamut 61% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 100K hours. COM84T8M02SSS utilizes LVDS (1 ch, 6/8-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

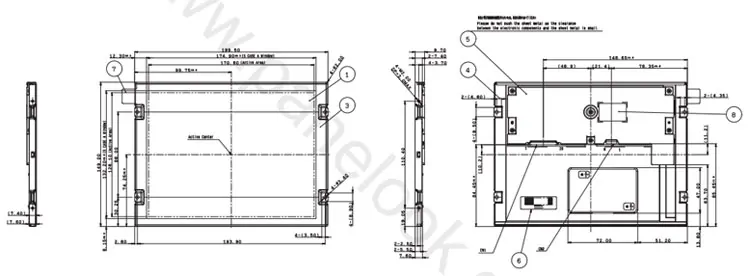

COM84T8M02SSS Ortustech 8.4 Inch Blanview Display High Brightness 1024×768 LVDS Wide Temperature TFT LCD Display

COM84T8M02SSS  Specification

Part No. COM84T8M02SSS Size 8.4 inch
Resolution 1024 × 768 (XGA) Display Mode Transmissive
Panel Interface LVDS (1 ch, 6/8-bit) Touch Panel No
Outline Dimension 199.5 × 149 mm Active Area 170.8 × 128.1 mm
Viewing Angle (L/R/U/D) 88 / 88 / 88 / 88 Brightness 600 cd/m²
Operation Temp. -30 ~ 80°C Storage Temp. -30 ~ 80°C



Ortustech Transflective Display AdvantageOrtustech advantage_03

-Sunlight Readable Low PowerConsumption
-Supply Long-term Stable
-High-Mix/Low-Volume Production
-Customer-oriented Support System
-Customized Product Support

Ortustech Transflective Display Application Cycling Computer Bike Display Solution

Ortustech Transflective Display Production and ManufacturingCycling Computer Bike Display Youritech Production and ManufacturingOrtustech Transflective Display

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
