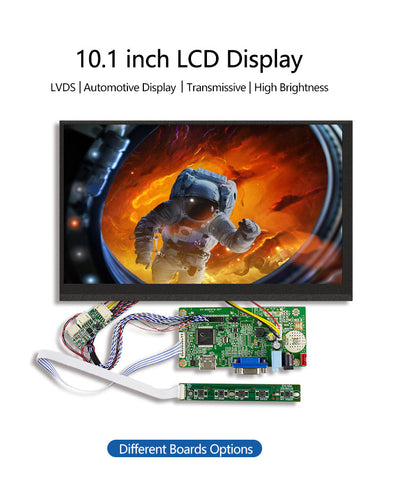

Innolux DJ101IA-07A 10.1 Inch 1280x720 TFT LCD Panel Outdoor High Brightness LVDS Screen IPS LCD Display Module

Innolux DJ101IA-07A 10.1 Inch 1280x720 TFT LCD Panel Outdoor High Brightness LVDS Screen IPS LCD Display Module

$110.37 USD
$125.42 USD $110.37 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction


Innolux DJ101IA-07A 10.1 Inch 1280x720 TFT LCD Panel Outdoor High Brightness LVDS Screen IPS LCD Display Module



LCD SPECIFICATION
Panel Size
10.1 inch
Panel Type
a-Si TFT-LCD , LCM
Resolution
1280(RGB)×720 , WXGA
Pixel Format
RGB Vertical Stripe

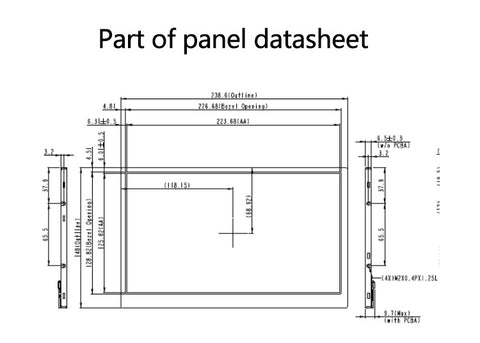

Display Area
223.68(W)×125.82(H) mm
Bezel Opening
226.68(W)×128.82(H) mm

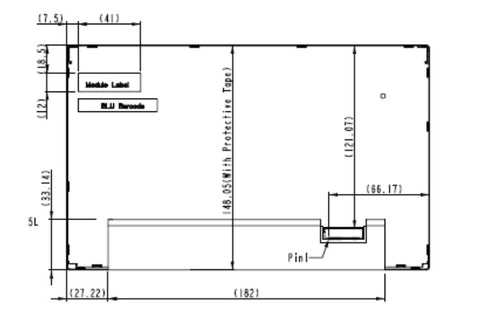

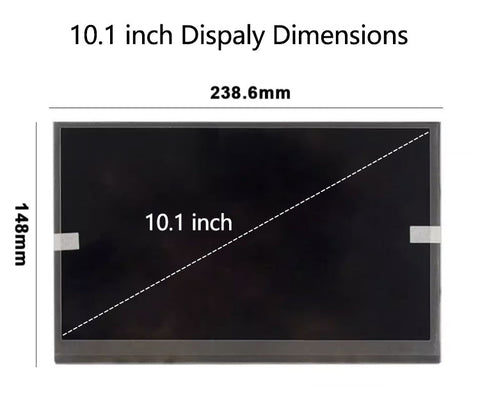

Outline Size
238.6(W)×148(H) ×9.7(D) mm
Surface
Antiglare

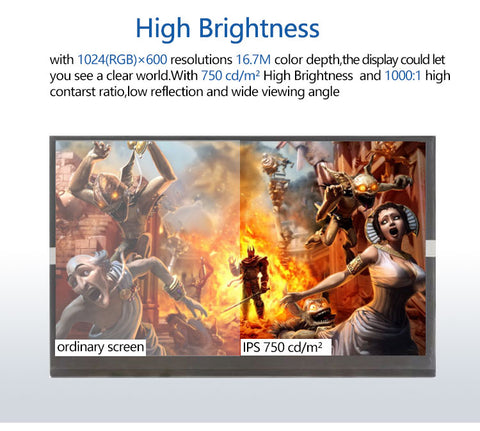

Brightness
750 cd/m² (Typ.)

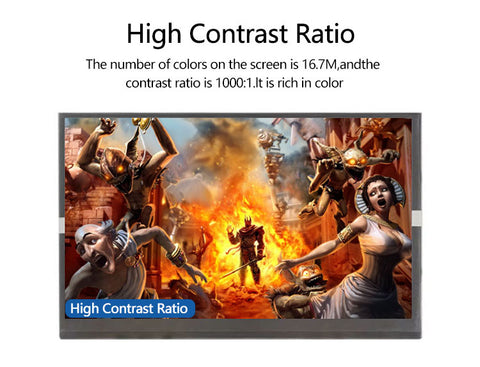

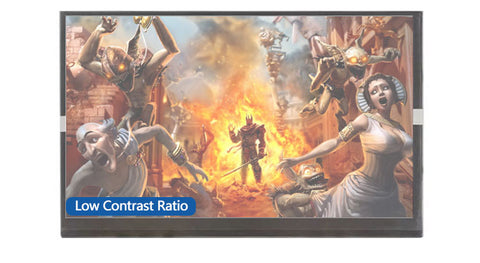

Contrast Ratio
1000:1 (Typ.) (TM)
Best View on
Symmetry
Response Time
10/15 (Typ.)(Tr/Td)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
AAS, Normally Black, Transmissive
Display Colors
262K/16.7M 70% NTSC
Lamp Type
WLED , 20K hours , Without Driver
Weight
360g (Max.)

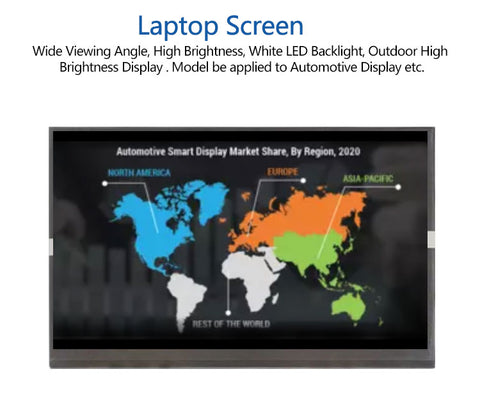

Application
Outdoor High Brightness / Automotive Display
Frequency
60Hz
Touch Screen
Without

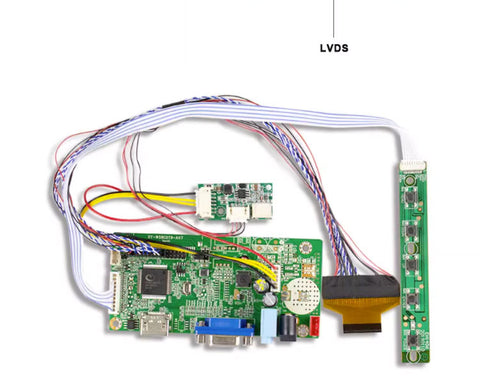

Signal Interface
LVDS (1 ch, 6/8-bit) , 40 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
