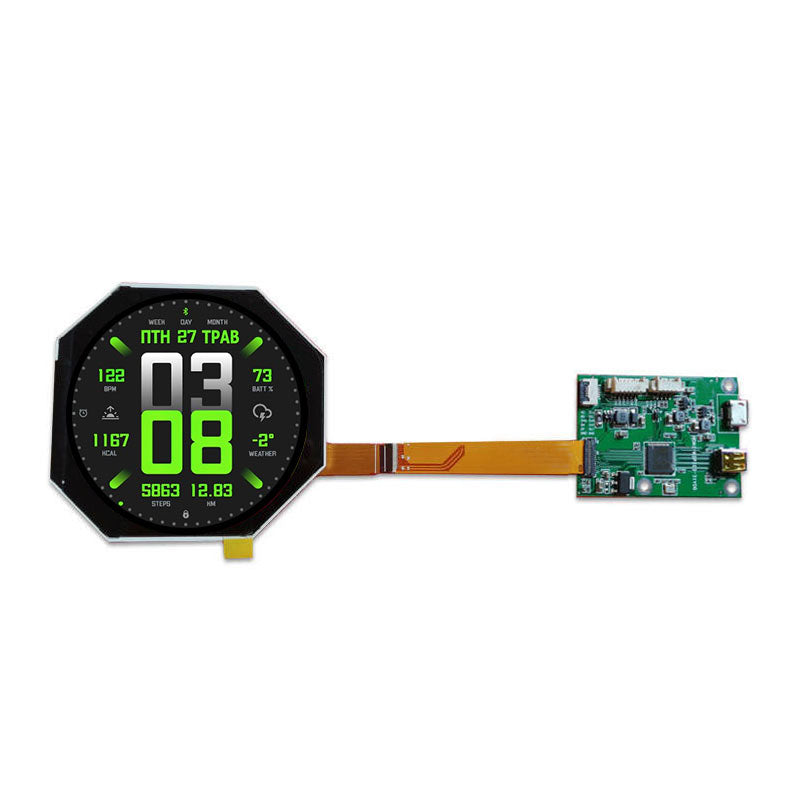

EV025Z6M-J80 BOE 2.5 Inch TFT LCD Display 480x480 MIPI Circular Display With Driver Board For Meter Medical Diagnosis

EV025Z6M-J80 BOE 2.5 Inch TFT LCD Display 480x480 MIPI Circular Display With Driver Board For Meter Medical Diagnosis

$76.00 USD
$76.00 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

2.5 Inch LCD Display Overview
EV025Z6M-J80 supports display 480(RGB)×480 with aspect ratio of 1:1 (W:H), whose pixels are arranged in RGB Vertical Stripe. It features active area of 62.64(W)×62.64(H) mm, outline size of 69.19(W)×71.74(H)×3.9(D) mm, net weight of 25.0g (Max.). As a ADS, Normally Black, Transmissive LCM product, EV025Z6M-J80 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 3S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. EV025Z6M-J80 utilizes MIPI (2 data lanes) as it's signal inputting systerm, which connected by 35 pins FPC with power supply voltage of 1.8/3.3V (Typ./Max.). It's typical vertical frame rate (Fv) is 60Hz.

2.5 Inch LCD Display Drawing
