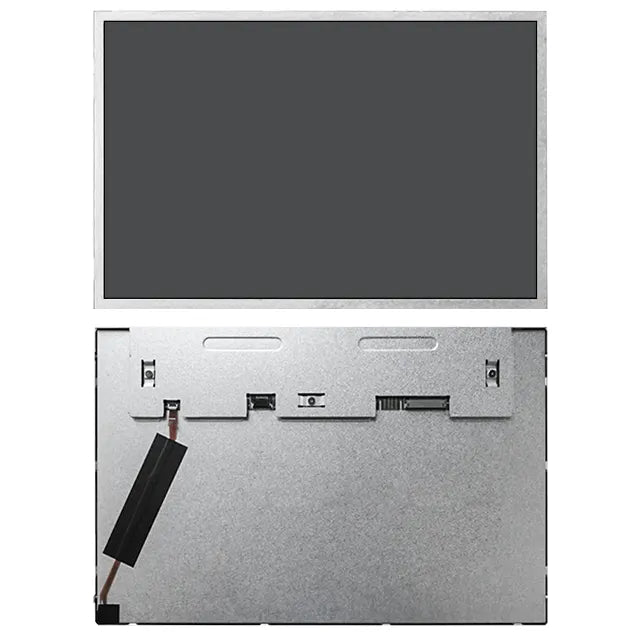

EV121WXM-N10 Original 12.1 Inch LCD Panel 1280x800 LVDS LCD Display For Medical

EV121WXM-N10 Original 12.1 Inch LCD Panel 1280x800 LVDS LCD Display For Medical

$103.00 USD
$120.00 USD $103.00 USD
Sale Sold out


EV121WXM-N10 Original 12.1 Inch LCD Panel 1280x800 LVDS LCD Display For Medical


Product size
12.1-inch
Type
a-Si TFT-LCD , LCM
Pixel Format
1280(RGB)×800 [WXGA] 124PPI
Configuration
RGB Vertical Stripe
Active Area
261.12(H)×163.2(V) mm
Outline Dim.
277.7(H)×180.6(V) mm
Bezel Area
264.12(H)×166.2(V) mm
Treatment
-
Luminance
400 cd/m² (Typ.)
Contrast Ratio
1200:1 (Typ.) (TM)
View Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
ADS, Normally Black, Transmissive
Support Color
16.7M 48% NTSC
Light Source
WLED , 50K hours , With LED Driver
Weight
556g (Typ.)
Designed For
Medical Imaging
Frequency
60Hz
Touch Panel
Without
Interface Type
LVDS (1 ch, 8-bit) 20 pins Connector
Power Supply
3.3V (Typ.)
Environment
Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
