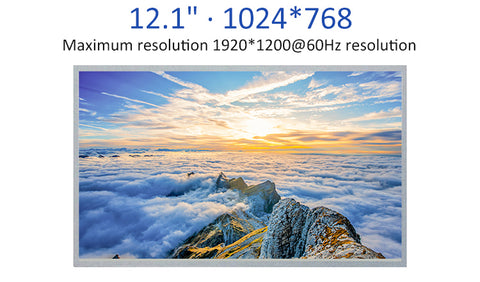

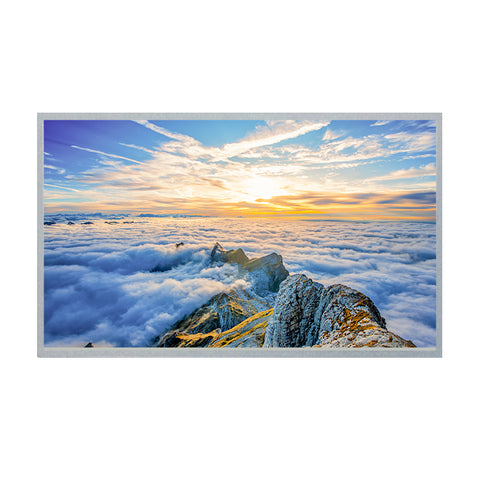

EV121X0M-N10 BOE 12.1 Inch 1024x768 TFT IPS LCD Panel Module LVDS Interface Industrial Display

EV121X0M-N10 BOE 12.1 Inch 1024x768 TFT IPS LCD Panel Module LVDS Interface Industrial Display

$115.35 USD
$150.00 USD $115.35 USD
Sale Sold out


EV121X0M-N10 BOE 12.1 Inch 1024x768 TFT IPS LCD Panel Module LVDS Interface Industrial Display

LCD SPECIFICATION

Panel Size

12.1 inch



Panel Type

a-Si TFT-LCD, LCM

Resolution

1024(RGB)×768   [XGA]

Pixel Format

RGB Vertical Stripe

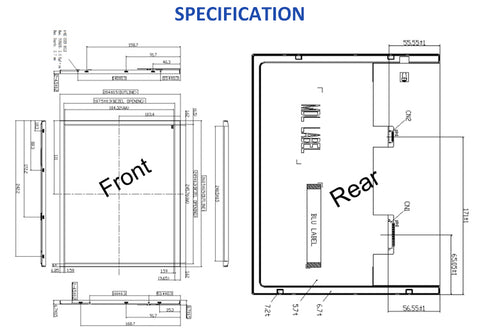

Display Area

245.76(H)×184.32(V) mm

Bezel Opening

260.5(H)×204(V) ×9.2(D) mm

Outline Size

249(H)×187.5(V) mm

Surface

-

Brightness

500 cd/m² (Typ.)

Contrast Ratio

1200:1 (Typ.) (TM)

Best View on

Symmetry

Response Time

25 (Typ.)(Tr+Td)

Viewing Angle

88/88/88/88 (Typ.)(CR≥10)

Display Mode

ADS, Normally Black, Transmissive

Display Colors

16.7M   72% NTSC

Lamp Type

WLED , With LED Driver

Weight

-

Application

Industrial

Frequency

60Hz

Touch Screen

Without

Signal Interface

LVDS (1 ch, 8-bit) , 20 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
