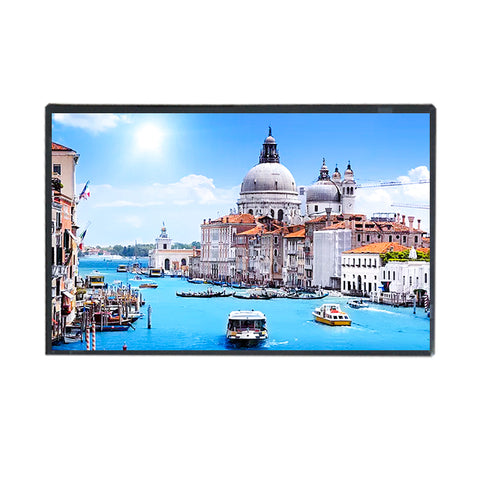

G101EVN01.3 AUO 10.1 inch 1280x800 TFT IPS LVDS LCD Panel Display

G101EVN01.3 AUO 10.1 inch 1280x800 TFT IPS LVDS LCD Panel Display

$101.20 USD
$115.00 USD $101.20 USD
销售额 售罄
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.


G101EVN01.3 AUO 10.1 inch 1280x800 TFT IPS LVDS LCD Panel Display

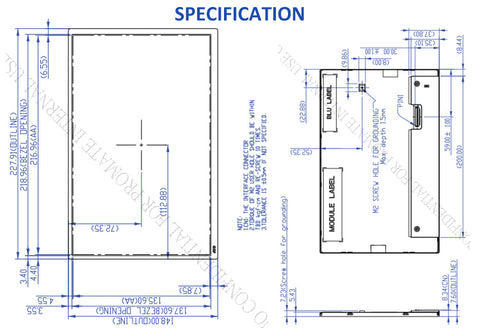

LCD SPECIFICATION

Panel Size

10.1 inch



Panel Type

a-Si TFT-LCD, LCM

Resolution

1280(RGB)×800 , WXGA

Pixel Format

RGB Vertical Stripe

Display Area

216.96(H)×135.6(V) mm

Bezel Opening

220.36(W)×139.1(H) mm

Outline Size

227.91(W)×148(H) ×8.34(D) mm

Surface

Hard coating, Reflection 1.5% (Typ.)

Brightness

500 cd/m² (Typ.)

Contrast Ratio

1300:1 (Typ.) (TM)

Best View on

Symmetry

Response Time

25 (Typ.)(Tr+Td)

Viewing Angle

85/85/85/85 (Typ.)(CR≥10)

Display Mode

MVA, Normally Black, Transmissive

Display Colors

262K/16.7M   45% NTSC

Lamp Type

WLED , 50K hours , With LED Driver

Panel Weight

350g (Max.)

Application

Industrial

Frequency

60Hz

Touch Screen

Without

Signal Interface

LVDS (1 ch, 6/8-bit) , 40 pins Connector

Input Voltage

3.3V (Typ.)

Environment

Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.

SHIPPING & DELIVERY FAQS

1. Where is my product ship from?
All of products are shipped from China/HK.

2. How long will it take for my order to arrive?
It depends on the shipping method you choose, if you have requirements for the delivery time, please choose the fastest delivery shipping method (DHL).

3. When my order will be shipped out ?
Normally we will ship it out within 2- 3 days after order was processed, only when the products in high demand or out of stock will take more time.
