H381DLN01.2 AUO 3.8 Inch AMOLED Display 1080x1200 MIPI OLED Display

H381DLN01.2 AUO 3.8 Inch AMOLED Display 1080x1200 MIPI OLED Display

$168.00 USD
$168.00 USD
Sale Sold out
For product datasheet and technical support, welcome to contact us at support@youritech.com;
Regarding project mass production needs, please share the FORECAST to info@youritech.com for receiving volume discount pricing.
View full details

Product Introduction

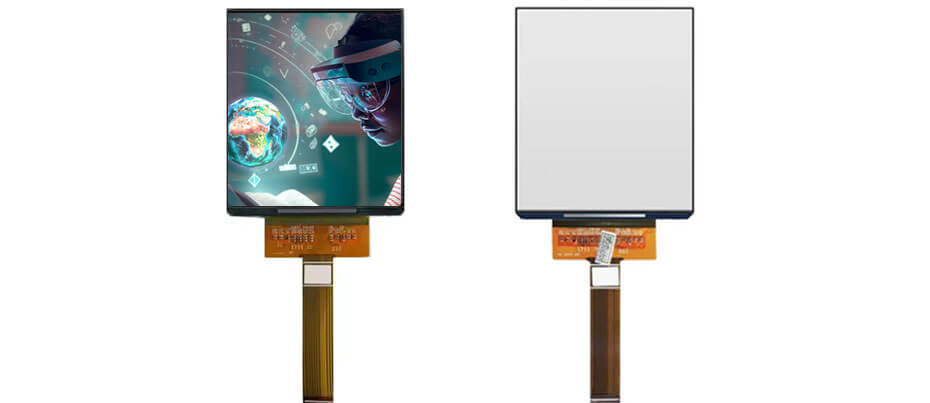

H381DLN01.2 Overview

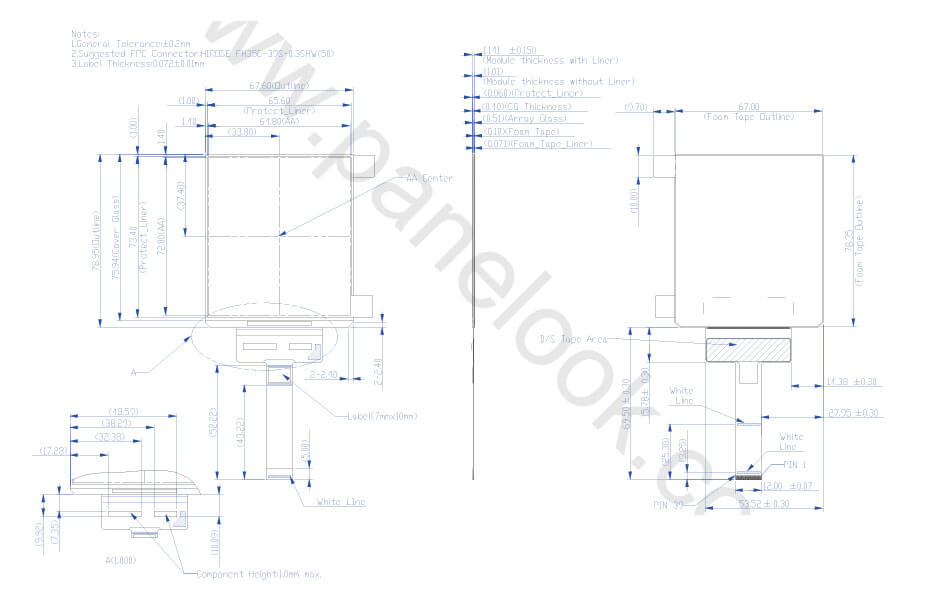

H381DLN01.2  is a 3.8 inch diagonal AM-OLED display screen, it self emiting, without touch screen. H381DLN01.2 supports display 1080(RGB)×1200 with aspect ratio of 8:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 423 PPI. As for mechanical detail, it features active area of 64.8(W)×72(H) mm, outline size of 67.6(W)×78.95(H)×1.29(D) mm. H381DLN01.2 can provides 100 cd/m² display brightness 10000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥480) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (NTSC). This product emiting itself . H381DLN01.2 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 1.8/4.6/5.8/-2.9V (Typ.)(IOVCC/OVDD/AVDD/OVSS). It's typical vertical frame rate (Fv) is 90Hz.


H381DLN01.2 Features
3.81 Inch AMOLED 1080x1200 VR AR MR Display
Model:H381DLN01.2
1)Panel Type: AM-OLED, OLED
2)Active Area: 64.8(W)x72(H)mm
3)Brightness:100 cd/m²
4)Contrast Ratio: 10000:1(Min.)(TM)
5)Display Colors:16.7M 100%NTSC
6) Driver lC: CoG Built-in RM69071
7)Size: 3.81 inch
8)Resolution:1080x1200
9)Interface: MIPl (4 data lanes) ,39 pins FPC
A)Operating Temp.:-20~70°C
B)Storage Temp.:-40~80°C

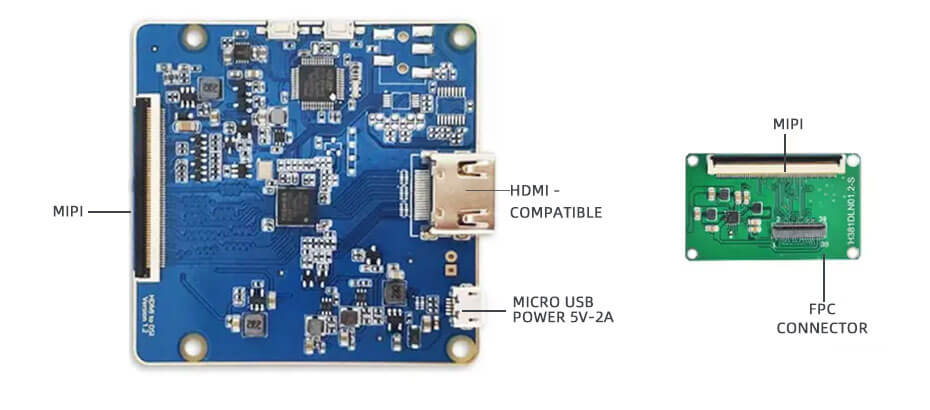

Onboard Resources


Display Module Customization


- Optical Bonding
   lmprove screen readability outdoors and strength of your display with optical bonding.
- Coverlens Design
   From shape, size glass materialand thickness to hidden til lit icons and printing, make your product stand out.
- Touch and Firmwar
   Optical touch lCs and firmware tuning for flawless performance including gloved touch and water rejection.
- Glass Coatings & Filters
   Optimum performance using films and filters incuding anti-reflective,anti-glare or protective coatings.
- Backlight Enhancement
Adapting display brightness to suitthe application requirements.

Display Applications

Customization & Manufacturing

We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.

Quality is constant

Diligence, processes, and attention to detail are at the core of our business. Our operational framework is built on the 4Cs:
four pillars of quality that underpin our role as the world’s leading display panel designer and manufacturer.
