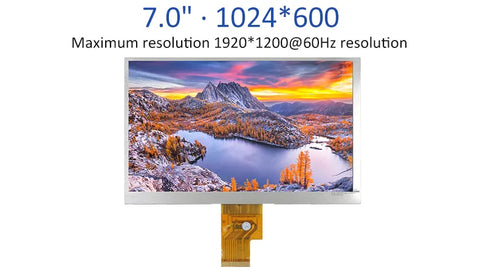

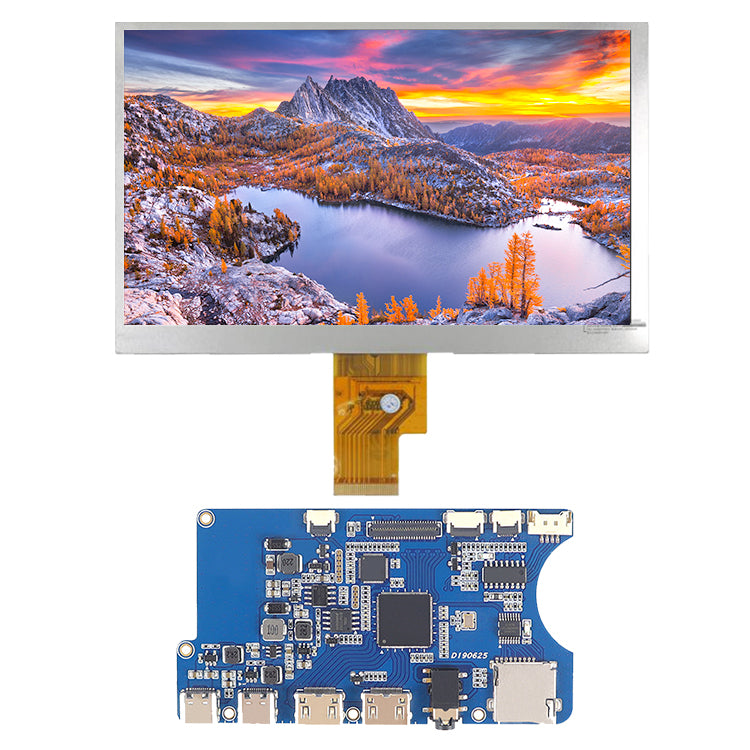

HJ070NA-13A Innolux 7 inch TFT LCD Display 1024x600 LVDS to H-DMI Driver Board For Tablet

HJ070NA-13A Innolux 7 inch TFT LCD Display 1024x600 LVDS to H-DMI Driver Board For Tablet

Regular price $52.69 USD
Regular price $65.00 USD Sale price $52.69 USD
Sale Sold out


HJ070NA-13A Innolux 7 inch TFT LCD Display 1024x600 LVDS to H-DMI Driver Board For Tablet

LCD SPECIFICATION
Panel Size
7.0 inch
Panel Type
a-Si TFT-LCD , LCM
Resolution
1024(RGB)×600 , WSVGA
Pixel Format
RGB Vertical Stripe
Display Area
153.6(W)×90(H) mm
Bezel Opening
156.4(W)×92.8(H) mm
Outline Size
165.75(W)×105.39(H) ×2.65(D) mm
Surface
Clear
Brightness
250 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (TM)
Best View on
6 o'clock
Response Time
10/15 (Typ.)(Tr/Td)
Viewing Angle
70/75/75/75 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Display Colors
262K/16.7M 70% NTSC
Lamp Type
WLED , 15K hours , Without Driver
Weight
92.8g (Typ.)
Application
Pad & Tablet / MID UMPC / MP3 PMP
Frequency
75Hz
Touch Screen
Without
Signal Interface
LVDS (1 ch, 6/8-bit) , 40 pins FPC
Input Voltage
3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL)
Environment
Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
