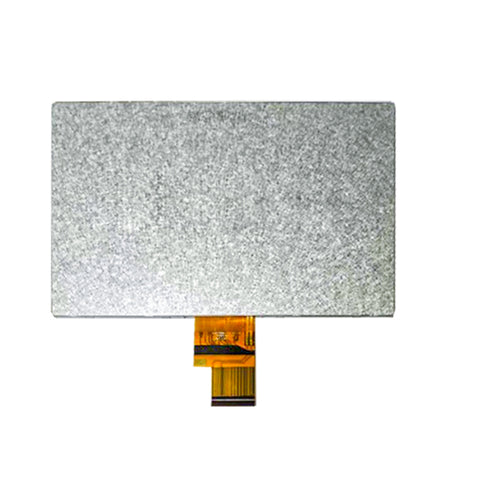

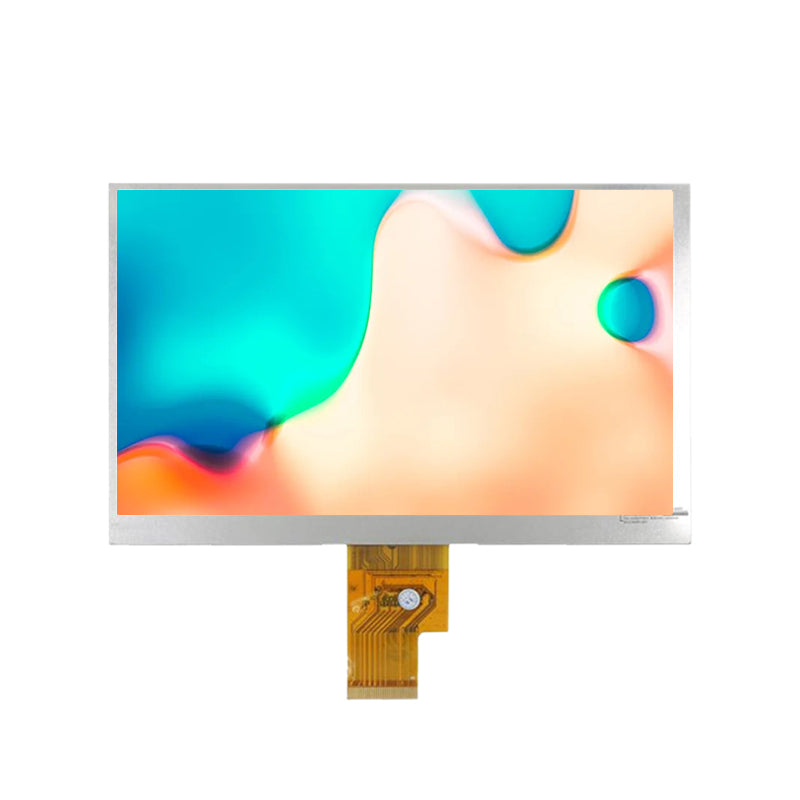

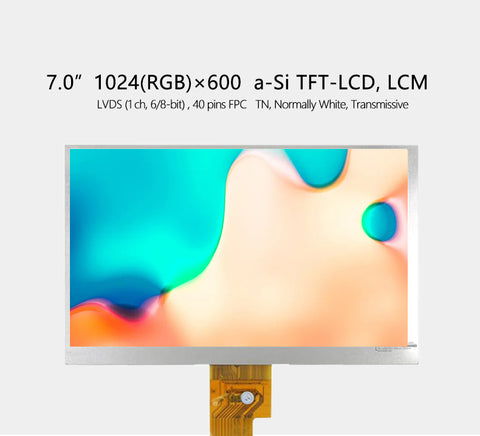

HJ070NA-13A Innolux 7 inch TFT LCD Display LVDS Interface 1024x600 Screen For Tablet
HJ070NA-13A Innolux 7 inch TFT LCD Display LVDS Interface 1024x600 Screen For Tablet
Regular price
$43.00 USD
Regular price
$50.00 USD
Sale price
$43.00 USD
Unit price
per
HJ070NA-13A Innolux 7 inch TFT LCD Display LVDS Interface 1024x600 Screen For Tablet

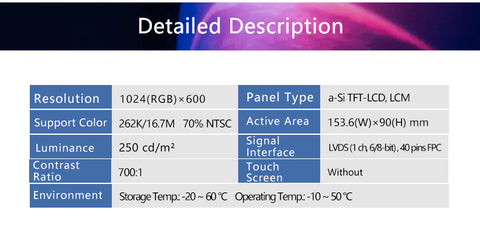

LCD SPECIFICATION
|
|||
Panel Size
|
7.0 inch
|
Panel Type
|
a-Si TFT-LCD , LCM
|
Resolution
|
1024(RGB)×600 , WSVGA
|
Pixel Format
|
RGB Vertical Stripe
|
Display Area
|
153.6(W)×90(H) mm
|
Bezel Opening
|
156.4(W)×92.8(H) mm
|
Outline Size
|
165.75(W)×105.39(H) ×2.65(D) mm
|
Surface
|
Clear
|
Brightness
|
250 cd/m² (Typ.)
|
Contrast Ratio
|
700:1 (Typ.) (TM)
|
Best View on
|
6 o'clock
|
Response Time
|
10/15 (Typ.)(Tr/Td)
|
Viewing Angle
|
70/75/75/75 (Typ.)(CR≥10)
|
Display Mode
|
TN, Normally White, Transmissive
|
Display Colors
|
262K/16.7M 70% NTSC
|
Lamp Type
|
WLED , 15K hours , Without Driver
|
Weight
|
92.8g (Typ.)
|
Application
|
Pad & Tablet / MID UMPC / MP3 PMP
|
Frequency
|
75Hz
|
Touch Screen
|
Without
|
Signal Interface
|
LVDS (1 ch, 6/8-bit) , 40 pins FPC
|
||
Input Voltage
|
3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL)
|
||
Environment
|
Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
|
