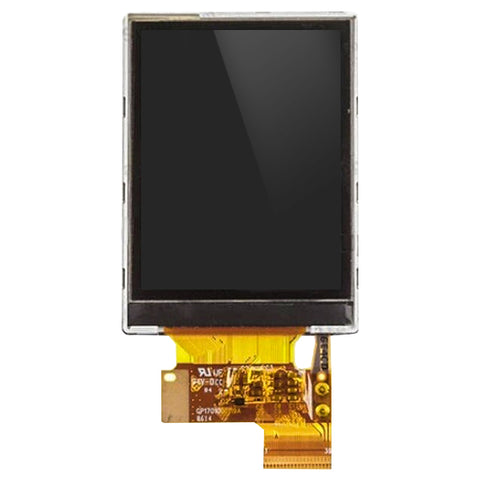

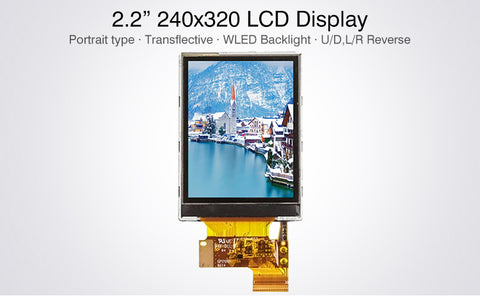

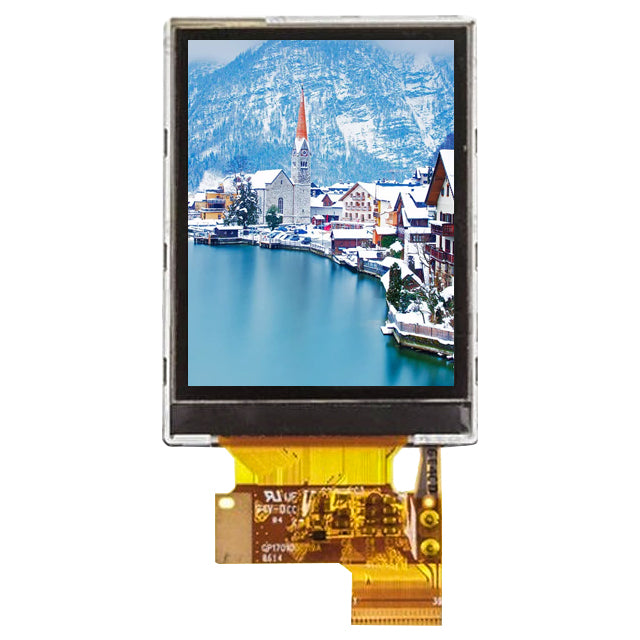

TD022SREC6 TPO 2.2 inch CPU 240x320 TFT LCD Display

TD022SREC6 TPO 2.2 inch CPU 240x320 TFT LCD Display

Regular price $34.80 USD
Regular price $38.00 USD Sale price $34.80 USD
Sale Sold out


In Stock TD022SREC6 TPO 2.2 inch CPU 240x320 TFT LCD Display

Product size
2.2-inch
Type
LTPS TFT-LCD, LCM
Pixel Format
RGB Vertical Stripe
Configuration
/

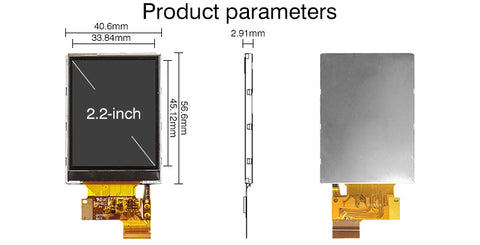

Active Area
33.84(W)×45.12(H) mm
Outline Dim.
40.6(W)×56.6(H) mm
Bezel Area
/
Treatment
/
Luminance
195 cd/m² (Typ.)
Contrast Ratio
150:1 (Typ.) (TM) 8:1 (Typ.) (RF)
View Direction
/
Response Time
17/18 (Typ.)(Tr/Td) ms
Viewing Angle
55/45/45/60 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transflective
Support Color
65K 50% NTSC
Light Source
WLED [4S1P]
Weight
/
Designed For
MOBILE PHONE
Frequency
/
Touch Panel
Without
Interface Type
CPU , 39 pins FPC
Power Supply
2.8V (Typ.)
Environment
/
For product datasheet and technical support, welcome to contact us at support@youritech.com;
We support customize and manufacturing based on your requirements,look forward to your contact if you need mass production or design, quick technical support and competitive price will be provided.
